• Cascade up to 16 servers with this simple plug-and-play KVM switch.
• Resolution up to 1920 x 1440.
• Server-room grade KVM switch at an affordable price.
• Ships with (4) EHN9000U-0006 cables (See "What's included").
• Perfect for entry-level data centers.

• Choose the console mode by sliding a switch on the back panel.
• Save rack space-only 1U high!
• Supports Microsoft® IntelliMouse® (Pro).
• Operating system independent and transparent to all applications.
• Switch manually or use Autoscan, which selects servers sequentially.
• Assign unique names to servers.
• Save and store keyboard settings while switching.
• Hot-pluggable keyboard/mouse ports.
• Password protected.
• Plug-and-play configuration.
• DDC2B compatible.
• Kit bundle includes the switch plus four 6-ft. (1.8-m) ServSwitch EC USB Server Cables (EHN9000U-0006) for connecting the switch to USB servers.

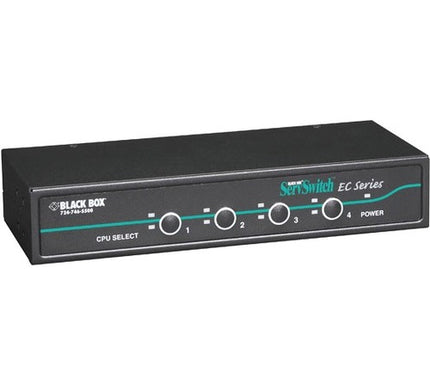

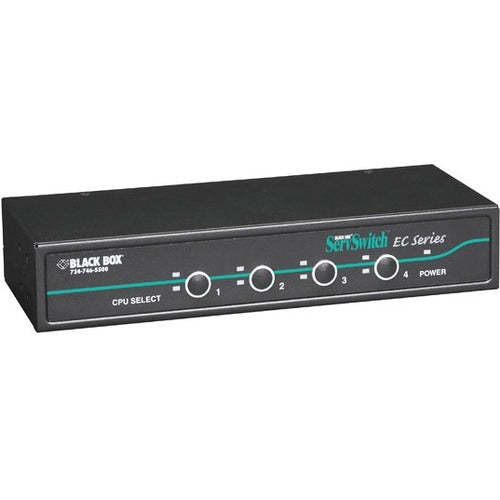

Use a USB console (keyboard, mouse, and monitor) to control PS/2® and/or USB servers with the ServSwitch EC for PS/2 and USB Servers and PS/2 or USB Consoles Kit, 4-Port.

Expand your system.
Switch between four servers from a single console. To expand your switching platform to include additional servers, simply cascade units in a master-slave configuration to control up to 16 servers. The ServSwitch EC is plug-and-play, so you can add or subtract servers almost as quickly as you can plug and unplug cables.

• ServSwitch KVM Switchbox
• AC Power Adapter
• Set Of Foot Pads
• (2) Mounting Brackets
• (4) 6-ft. (1.8-m) ServSwitch EC USB Server Cables (EHN9000U-0006)
• User's Manual
