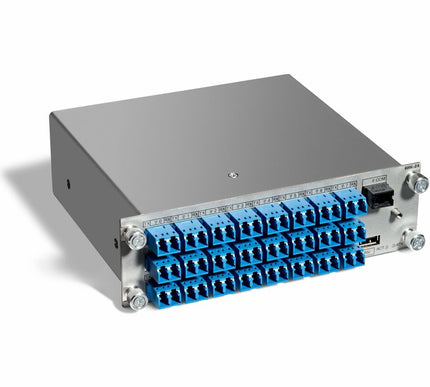

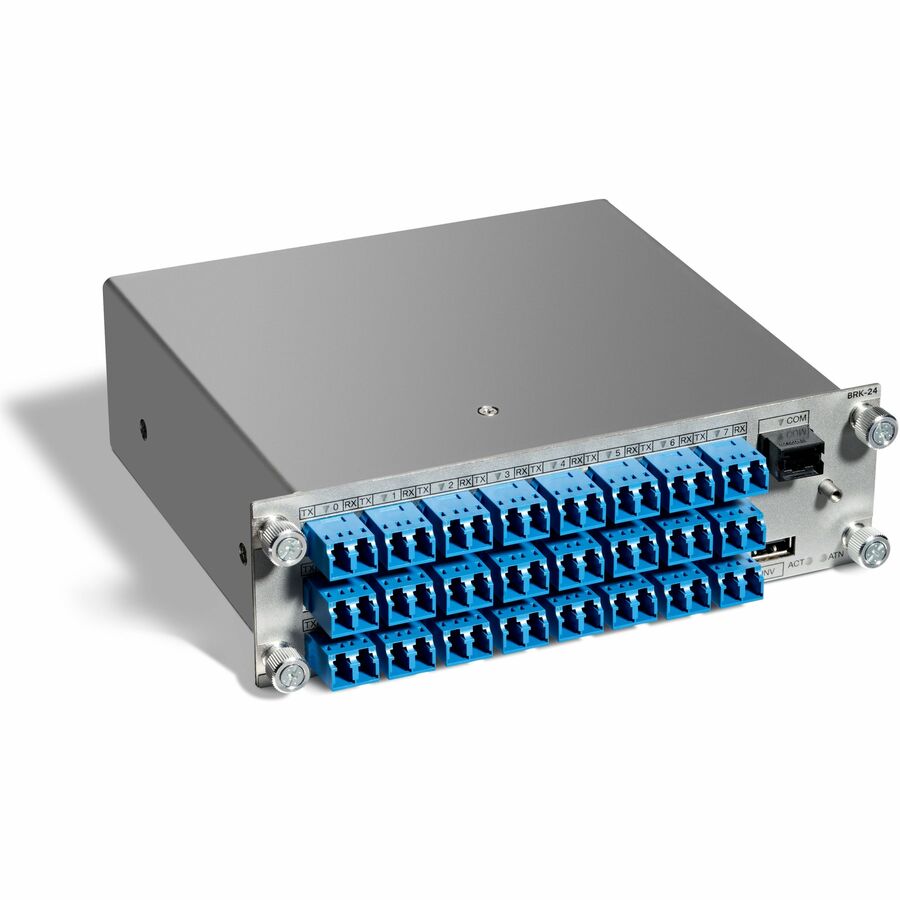

The NCS1K-BRK-24 module providesthe breakout of 16 fibersfrom an MPO-24 connector to 24 duplex LC connectors. The signals on each fiber from the MPO input ports are split over three LC output ports by a 1x3 optical splitter. The signals from the three adjacent input LC ports are combined into a single MPO fiber output port through a 1x3 optical coupler. For each port (MPO and LC), power monitors with tone detection capability are available. A filtered optical loopback (191.175 THz) from one MPO input port (fiber-1) to all MPO output ports is available for connection verification.

• Data Networking
• Optical Network

• MTP/MPO
• MPO-24
• LC Duplex

• 1 x MPO-24 Network
• 24 x LC Duplex Network

• 1520 nm
• 1612 nm
• 1567.34 nm
• 1569.60 nm
