The Cisco^® 1100 Terminal Services Gateway provides up to 72 asynchronous ports on a single-rack-unit form factor, supporting up to 24 Layer 2 switch ports, LTE Advanced 3.0, and high availability using dual power supplies.

Product overview

The compact, high-density Cisco 1100 Terminal Services Gateway (C1100 TSG) with Cisco IOS^® XE Software allows secure remote management of a wide variety of networking, compute, Internet of Things (IoT), and other devices. It integrates Layer 2 switching and comprehensive security with the ability to integrate wired and wireless WAN connections (LTE Advanced 3.0) into a single rack unit. The C1100 TSG allows secure authentication (through support for RADIUS or TACACS) of remote users connecting to resources on an internal corporate or private network from Internet-connected devices.

Cloud service providers can deploy the C1100 TSG in data centers to provide secure connectivity to terminal servers, computers, IoT devices, and other networking equipment located in the internal network or behind a firewall. In addition, the gateway supports the Cisco IOS Firewall, IPsec and Network Address Translation (NAT), providing security and protection to all devices that connect to or from the terminal gateway. The C1100 TSG supports centralized and remote management capabilities through web-based tools and Cisco IOS^® XE Software for full visibility into and control of network configurations at the remote site.

• USB 2.0 Type A
• USB 3.0 Type A

• Network Interface Module (NIM)
• SFP

• IEEE 802.1Q
• IEEE 802.3

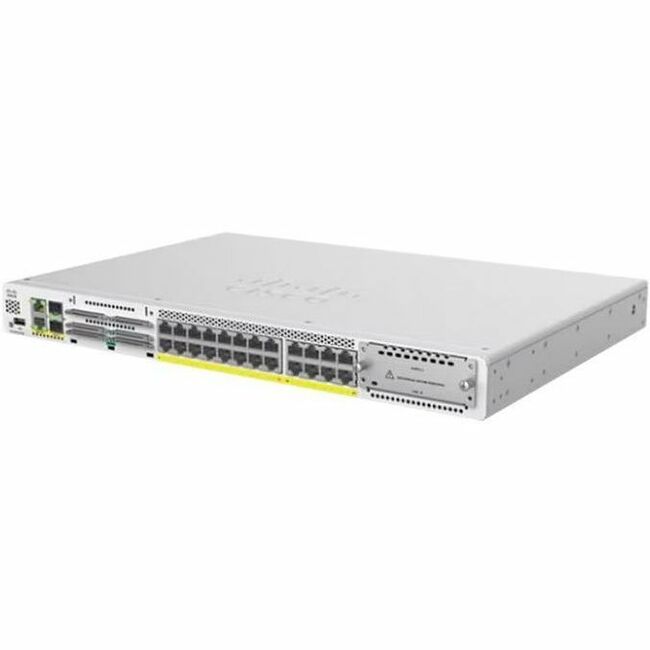

• C1100TG-1N32A Router
• Rack-mount 19 in. (48.3 cm) EIA
