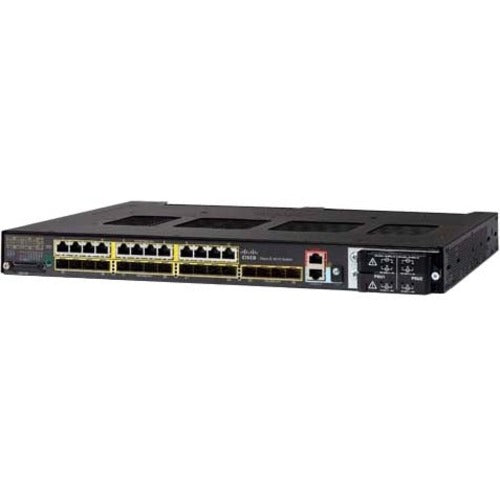

Cisco IE-4010-4S24P Industrial Ethernet Switch - IE-4010-4S24P=

    Product form
    • Cisco Systems, Inc

    Cisco IE-4010-4S24P Industrial Ethernet Switch - IE-4010-4S24P=

      General Information Manufacturer: Cisco Systems, Inc Manufacturer Part Number: IE-4010-4S24P= Manufacturer Website Address: http://www.cisco.com Brand Name: Cisco Product Series: 4010... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $10,026.17

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: IE40104S24P
        Barcode: 882658945526

        Size chart

        General Information

      • Manufacturer: Cisco Systems, Inc
      • Manufacturer Part Number: IE-4010-4S24P=
      • Manufacturer Website Address: http://www.cisco.com
      • Brand Name: Cisco
      • Product Series: 4010
      • Product Model: IE-4010-4S24P
      • Product Name: IE-4010-4S24P Industrial Ethernet Switch
      • Marketing Information: Cisco® Industrial Ethernet (IE) 4010 Series Switches with 28 Gigabit Ethernet interfaces are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access switches in industrial environments. The 4010 delivers comprehensive Cisco IOS® Software security features and high-availability ring protocols. The switch is ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.

        The 4010 has a comprehensive software feature set, developed from manufacturing, utility, and enterprise switching products making it excellent for extended temperature range locations, such as smart buildings, utility, process control, intelligent transportation systems (ITS), and city surveillance programs. The 4010 complements the existing Cisco IE 2000, IE 2000U, IE 3000, IE 3010, IE 4000, and IE 5000 Series Switching families, as well as the Cisco CGS 2520 Switch.

        The 4010 supports a GUI-based web user Interface, and Express Setup for the switch provides easy out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.
      • Product Type: Ethernet Switch

        • Interfaces/Ports

      • Total Number of Network Ports: 24
      • Uplink Port: Yes
      • Modular: Yes
      • Stack Port: No
      • Port/Expansion Slot Details:
        • 24 x Gigabit Ethernet Network
        • 4 x Gigabit Ethernet Expansion Slot

        • Media & Performance

      • Media Type Supported:
        • Twisted Pair
        • Optical Fiber

      • Ethernet Technology: Gigabit Ethernet
      • Network Technology:
        • 1000Base-X
        • 10/100/1000Base-T

        • I/O Expansions

      • Total Number of Expansion Slots: 4.0
      • Expansion Slot Type: SFP
      • Shared SFP Slot: No
      • Number of SFP Slots: 4

        • Network & Communication

      • Layer Supported: 3

        • Management & Protocols

      • Manageable: Yes

        • Power Description

      • Power Source: Power Supply
      • Redundant Power Supply Supported: Yes

        • Physical Characteristics

      • Compatible Rack Unit: 1U
      • Form Factor: DIN Rail Mountable
      • Height: 1.8"
      • Width: 17.5"
      • Depth: 14"
      • Weight (Approximate): 12.10 lb
        •
