Name: Cisco Meraki 48-port Gbe Switch - MS390-48-HW
Brand: Cisco Systems, Inc
SKU: 7AK816
Price: 5783.05 USD

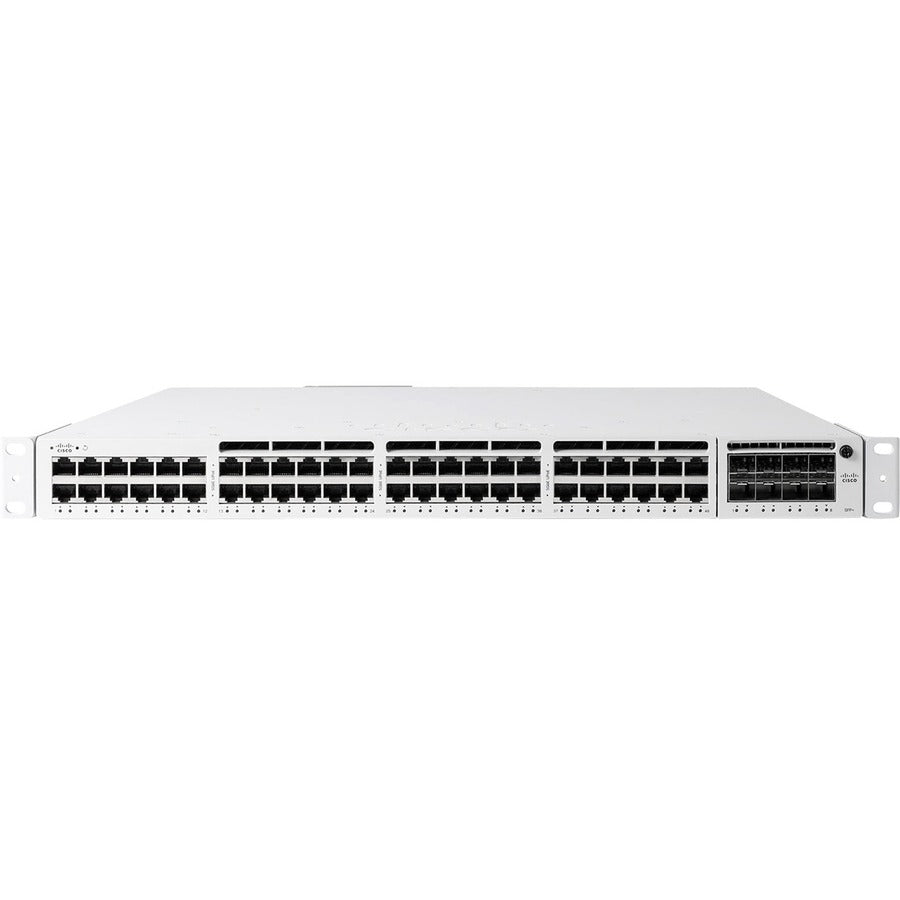

Cisco Meraki 48-port Gbe Switch - MS390-48-HW

Product form

Cisco Systems, Inc

Cisco Meraki 48-port Gbe Switch - MS390-48-HW

General Information Manufacturer: Cisco Systems, Inc Manufacturer Part Number: MS390-48-HW Manufacturer Website Address: http://www.cisco.com Brand Name: Cisco Meraki Product Series:... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$5,783.05

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: 7AK816
Barcode: 0889728231428

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Cisco Systems, Inc

Manufacturer Part Number: MS390-48-HW

Manufacturer Website Address: http://www.cisco.com

Brand Name: Cisco Meraki

Product Series: MS390

Product Model: MS390-48-HW

Product Name: 48-port Gbe Switch

Marketing Information: The Meraki MS390 addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the MS390 provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The MS390 delivers resiliency with fast stack convergence and StackPower. The MS390 provides Adaptive Policy using an over- the-wire tag which segments traffic into security groups to deliver scalable security. The MS390 is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as "IOT device" & "Guest." The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group's traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.

By pooling & distributing power across MS390s using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.

Product Type: Ethernet Switch

Interfaces/Ports

Total Number of Network Ports: 48

Uplink Port: Yes

Modular: Yes

Stack Port: Yes

Port/Expansion Slot Details:

48 x Gigabit Ethernet Network
2 x Stack
1 x Expansion Slot

Media & Performance

Media Type Supported:

Twisted Pair
Optical Fiber

Ethernet Technology: Gigabit Ethernet

Network Technology: 10/100/1000Base-T

I/O Expansions

Total Number of Expansion Slots: 1.0

Expansion Slot Type: I/O Module

Network & Communication

Layer Supported: 3

Management & Protocols

Manageable: Yes

Power Description

Power Source: Power Supply

Redundant Power Supply Supported: Yes

Power Consumption: 350 W

Physical Characteristics

Compatible Rack Unit: 1U

Form Factor: Rack-mountable

Height: 1.7"

Width: 17.5"

Depth: 17.7"

Weight (Approximate): 16.43 lb

Miscellaneous

Package Contents:

48-port Gbe Switch
1 x Power Supply (MA-PWR-350WAC)
Rack Mount Brackets and Screw Kit
3 x Pre-Installed Fans
Cable Guide

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Country of Origin: China

Warranty

Limited Warranty: Lifetime
