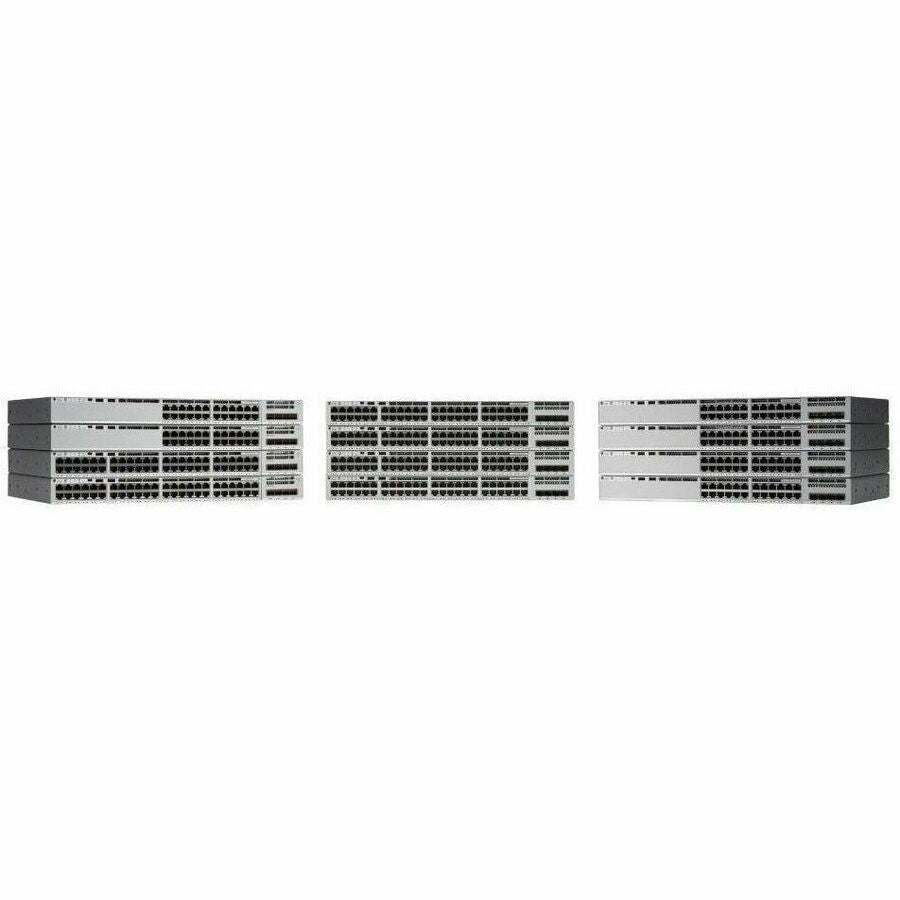

The Catalyst 9200L-M meets the demands of enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. It supports high-bandwidth applications and high-speed Wi-Fi access points with multigigabit ports and 80GB stacking. It offers either four fixed 1G/10G or two fixed 25G uplinks. The switch delivers resiliency through fast stack convergence. It uses Adaptive Policy with an over-the-wire tag to segment traffic into security groups, providing scalable security. Integrated with the Meraki dashboard, the Catalyst 9200L-M offers a simple yet powerful solution for demanding wired access applications.

Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as "IOT device" & "Guest." The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group's traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.

• Access Control List
• Hot-swappable
• Broadcast Storm Control
• DHCP Relay
• DHCP Snooping
• Dynamic ARP Inspection

• 24 x Gigabit Ethernet PoE+ Network Port
• 4 x Gigabit Ethernet SFP+ Expansion Slot
• 1 x Management Port
• 2 x Stacking Port

• Twisted Pair
• Optical Fiber

• Gigabit Ethernet
• 10 Gigabit Ethernet

• 1000Base-T
• 1000Base-X
• 10GBase-X

• IEEE 802.3at
• IEEE 802.1p
• IEEE 802.1Q
• IEEE 802.1s
• IEEE 802.1ab
• IEEE 802.3ad
• IEEE 802.1x

• Power Supply
• AC

• Catalyst C9200L-24P-4X-M Ethernet Switch
• 1 x Power Supply
• Rack Mount Brackets
• 2 x Pre-Installed Fans.
