Cisco Meraki MS450 Aggregation Switch - MS450-12-HW

    Product form
    • Cisco Systems, Inc

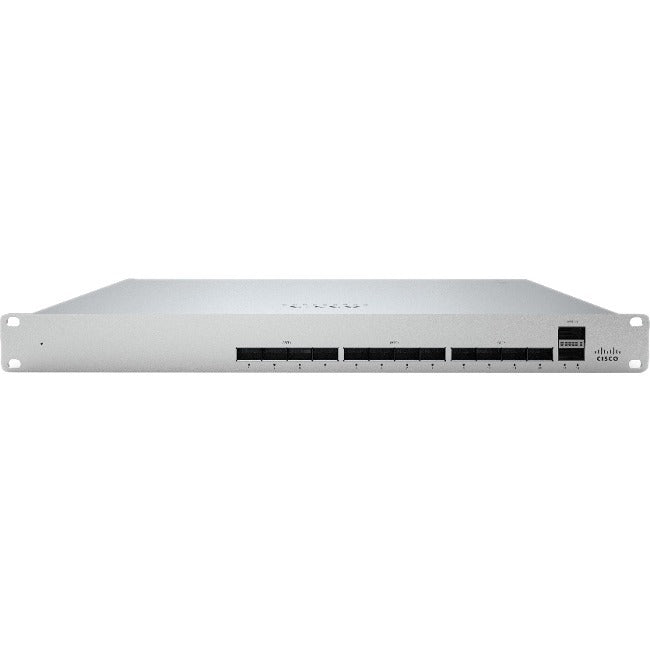

    Cisco Meraki MS450 Aggregation Switch - MS450-12-HW

      General Information Manufacturer: Cisco Systems, Inc Manufacturer Part Number: MS450-12-HW Manufacturer Website Address: http://www.cisco.com Brand Name: Cisco Meraki Product Model:... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $19,404.63

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: MS45012HW
        Barcode: 810979015833

        Size chart

        General Information

      • Manufacturer: Cisco Systems, Inc
      • Manufacturer Part Number: MS450-12-HW
      • Manufacturer Website Address: http://www.cisco.com
      • Brand Name: Cisco Meraki
      • Product Model: MS450-12
      • Product Name: MS450 Aggregation Switch
      • Marketing Information: HIGH-BANDWIDTH AGGREGATION SWITCHING

        The Cisco Meraki MS450 brings powerful high-bandwidth switching to the aggregation layer. The 40G fiber aggregation switch with 100G uplinks adopts the benefits of the cloud with simplified management, reduced complexity, and network-wide visibility.

        EXPANDING CLOUD MANAGEMENT TO THE CAMPUS

        Meraki aggregation switches are built from the ground up to be easy to manage without compromising the power and flexibility traditionally found in enterprise-class switches.

        To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management.

        Meraki's centralized management gives administrators granular visibility into their network. The dashboard helps you keep track of every configuration change in your network with detailed event and change logs.

        INDUSTRY-LEADING CLOUD MANAGEMENT

        Cloud management has a number of benefits that make it easier to build campus networks:
        • Automatic email alerts from power loss, downtime, or configuration changes
        • Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
        • Role-based administration
        • Firmware upgrades and enhancements from the Meraki cloud
        • Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
        • Incredible network transparency with application, operating system, client, and hostname visibility
        • Zero-touch provisioning for rapid deployment across sites
        Product Highlights
        • Connect up to 12 MS355s for high-bandwidth aggregration layer switching
        • Connect to core or data center switches with 2 x 100G QSFP28 uplinks
        • Stack up to eight switches for high-availability deployments
        • Dual stacking interfaces with up to 400 Gbps of band- width
        • Non-blocking switch backplane with up to 1.36 Tbps of switching capacity
        • Support for field replaceable, redundant power supplies
        • Integrated mounting brackets for rack mounting
        • Lifetime hardware warranty and advanced replacement at no additional cost
        Meraki switches feature high-end hardware features, including:
        • Compact, 1RU design for space-constrained environments
        • Terabit performance with non-blocking architecture
        • Field-replaceable, hot-swappable power supplies/fans
        • Front-to-back cooling
        • Dedicated management port
        • Low power consumption and shallow rack depth, which enable flexible deployment
        • Stacking option for building redundant architecture

      • Product Type: Layer 3 Switch

        • Interfaces/Ports

      • Uplink Port: Yes
      • Modular: Yes
      • Stack Port: Yes
      • Port/Expansion Slot Details:
        • 12 x 40 Gigabit Ethernet Expansion Slot
        • 2 x 100 Gigabit Ethernet Expansion Slot

        • Media & Performance

      • Media Type Supported: Optical Fiber
      • Ethernet Technology:
        • 100 Gigabit Ethernet
        • 40 Gigabit Ethernet

      • Network Technology:
        • 100GBase-X
        • 40GBase-X

        • I/O Expansions

      • Total Number of Expansion Slots: 16
      • Expansion Slot Type:
        • QSFP+
        • QSFP28

        • Network & Communication

      • Layer Supported: 3

        • Management & Protocols

      • Manageable: Yes

        • Power Description

      • Power Source: Power Supply
      • Redundant Power Supply Supported: Yes
      • Power Consumption: 250 W

        • Physical Characteristics

      • Compatible Rack Unit: 1U
      • Form Factor: Rack-mountable
      • Height: 1.7"
      • Width: 19.1"
      • Depth: 18.9"
      • Weight (Approximate): 13.80 lb

        • Miscellaneous

      • Package Contents:
        • MS450 Aggregation Switch
        • 1 x Power Supply (MA-PWR-250WAC)
        • 4-Post Rack Mount Kit
        • 3 x Pre-Installed Fans

      • Country of Origin: Taiwan

        • Warranty

      • Limited Warranty: Lifetime
        •
