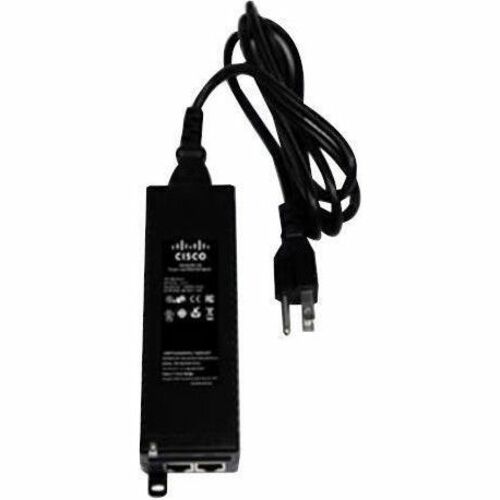

The Cisco^®Multigigabit 802.3bt Power Injector(Figure 1) is a reliable, standards-compliant power injector capable of powering the latest high-performance access points and other network devices.

One of the main limitations in designing your wireless network is the availability of power. Running power cabling is also a primary cost driver of wireless installations. The Cisco Power over Ethernet (PoE) Injector allows delivery of both data and power to a Cisco access point over a single Ethernet cable, allowing deployment of devices exactly where they are needed to provide the best wireless coverage at a much lower installation cost.

The Cisco 802.3bt PoE Injector provides fully compliant 802.3bt detection, with disconnect, short-circuit, and overload protection to ensure that only 802.3bt, 802.3at, and 802.3af devices receive power, and that non-compliant devices are not accidentally damaged. Using this injector, it is possible to power the latest generation of 802.11ax devices that require higher power as well as providing multigigabit support.

Regardless of the deployment scenario, powering Cisco devices with 802.3bt Power over Ethernet with multigigabit is a flexible and low-cost method to simplify the installation process while ensuring that network design is not compromised by power availability limitations.

Features and benefits

The Power Injector powers reliable wired network devices that provide a robust, mobile end-user experience. Table 1 lists the injectors features and benefits.

• Short Circuit
• Overload Protection
• Over Voltage
• Over Current
• Over Temperature

• 120 V AC
• 230 V AC

Compatible Products:

• Access Points
• Network Devices

• 802.3bt
• 802.3at
• 802.3af
• 802.11ax
• IEC 61000-4-2, +/- 6kV
• IEC 61000-4-3, 3V/m, 80%am, 1kHz, 80MHz to 1GHz Criterion A
• IEC 61000-4-4. +/-1kV on input, Criterion B
• IEC 61000-4-5 (lightning surge, AC Input port), 1.2/50 µs / 8/20 µs combination wave, +/-6kV from line to line,+/-6kV line to earth, Generator impedance ?2ohm; Criterion B
• EN55204 (lightning surge, RJ45 port), 10/700 µs wave +/-2kV all lines to earth
• IEC-61000-4-6 (conducted immunity), 3V, 80%AM, 1kHz, 150 kHz-80MHz; Criterion A
• CISPR 32/EN55032 Class B FCC Part 15 Class B
• Safety UL
• CE
• CCC
• IEC 62368
• EN 62368
• UL 62368
