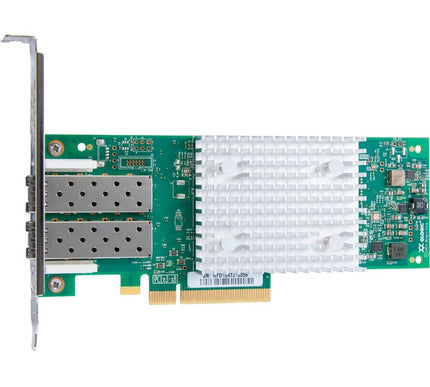

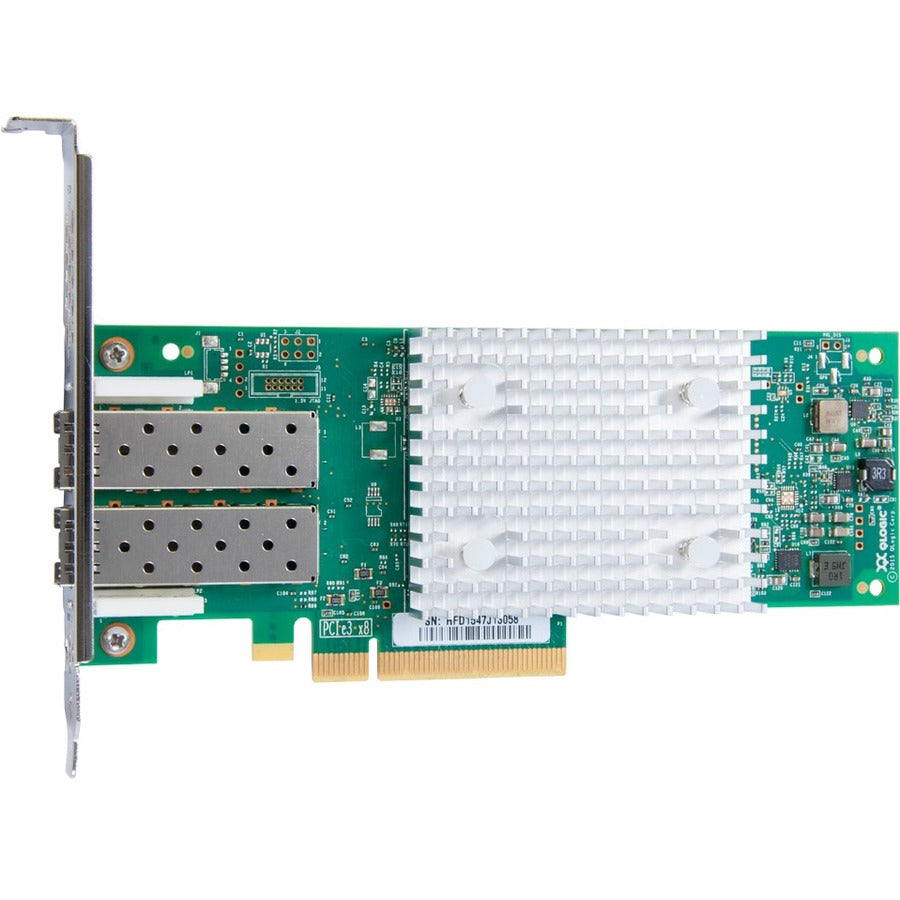

Cisco QLogic QLE2742-CSC Dual-port Gen 6 Fibre Channel Adapter - UCSC-PCIE-QD32GF=

    Product form
    • Cisco Systems, Inc

    Cisco QLogic QLE2742-CSC Dual-port Gen 6 Fibre Channel Adapter - UCSC-PCIE-QD32GF=

      General Information Manufacturer: Cisco Systems, Inc Manufacturer Part Number: UCSC-PCIE-QD32GF= Manufacturer Website Address: http://www.cisco.com Brand Name: Cisco Product Name: QLogic... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $3,414.45

      Business-to-Business Sales Only
      We sell exclusively to businesses, government agencies, educational institutions, organizations, and U.S. military bases within the United States. A valid business email address is required.

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 6GD971

        Size chart

        General Information

      • Manufacturer: Cisco Systems, Inc
      • Manufacturer Part Number: UCSC-PCIE-QD32GF=
      • Manufacturer Website Address: http://www.cisco.com
      • Brand Name: Cisco
      • Product Name: QLogic QLE2742-CSC Dual-port Gen 6 Fibre Channel Adapter
      • Marketing Information: The QLogic QLE2742-CSC dual-port Gen 6 Fibre Channel Host Bus Adapter boasts industry leading native FC performance with extremely low CPU usage with full hardware offloads.

        32GFC TECHNOLOGY
        The FC solution from QLogic provides the industry's leading Gen 6 adapter. The QLogic FC solution offers higher per-port performance (up to 650K IOPS) with low power consumption. In addition, QLogic StorFusion technology delivers streamlined provisioning, guaranteed quality of service (QoS), and improved resiliency with built-in forward error correction (FEC). StorFusion addresses the needs of IT organizations that require reliability, integrated management, and guaranteed network performance.

        The 32GFC technology resolves data center complexities by enabling a storage network infrastructure that supports powerful virtualization features, application-aware services, and simplified management. The QLE2742-CSC Adapter provides advanced storage networking features capable of supporting the most demanding virtualized and private cloud environments. This adapter fully leverages the capabilities of highperformance 32GFC, all-flash arrays (AFAs), and demanding enterprise applications. Powerful management tools automate and simplify SAN provisioning to help reduce cost and complexity, while the unmatched Gen 6 performance eliminates potential I/O bottlenecks in today's powerful multiprocessor, multicore servers.

        SUPERIOR PERFORMANCE
        The QLE2742-CSC Adapter can accelerate mission-critical enterprise applications by delivering up to 1.3 million IOPS for physical, virtual, and private cloud environments. QLogic adapters deliver the application performance in virtualized and non-virtualized environments with up to 650K I/O transactions per second, per port.

        VIRTUALIZATION OPTIMIZED
        The QLE2742-CSC Adapter supports standards-based virtualization features. Support for N_Port ID virtualization (NPIV) enables a single FC adapter port to provide multiple virtual ports for increased network scalability. Standard class-specific control (CS_CTL)-based QoS technology per NPIV port allows bandwidth controls and guarantees per virtual machine (VM). In addition, the 32GFC line rate per physical port delivers unmatched storage performance to maximize the quantity of VMs per physical server.
      • Packing: Box
      • Package Type: Bulk
      • Product Type: Fibre Channel Host Bus Adapter

        • Technical Information

      • Total Number of Fibre Channel Ports: 2
      • Host Interface: PCI Express 3.0 x8

        • Media & Performance

      • Media Type Supported: Optical Fiber
      • Fiber Mode Supported: Multi-mode
      • Data Transfer Rate:
        • 8 Gbit/s
        • 16 Gbit/s
        • 32 Gbit/s

        • Physical Characteristics

      • Form Factor: Plug-in Card
      • Card Height: Low-profile
      • Height: 2.7"
      • Width: 6.6"

        • Miscellaneous

      • Compatibility:
        • Cisco (C220 M4, C240 M4, and C460 M4) UCS C-Series Rack Servers

        Cisco FC SAN Switches:
        • UCS-EP-MDS9148S-16: MDS 9148S 16G FC switch, with 12 active ports and 16G SW SFPs
        • UCS-EP-MDS9148SL2: MDS 9148S 16G FC 12-port upgrade license and 16G SW SFPs
        • UCS-EP-MDS9396S-16: Cisco MDS 9396S 16G switch; 48 enabled ports, 48 × 16G SW SFP
        • UCS-EP-MDS9396SL2: Cisco MDS 9396S 12-port license with 12 × 16G SW SFP+

      • Environmentally Friendly: Yes
      • Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
        •
