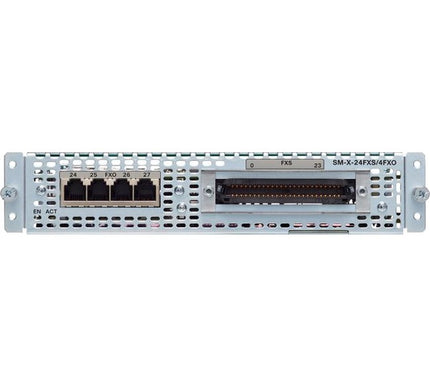

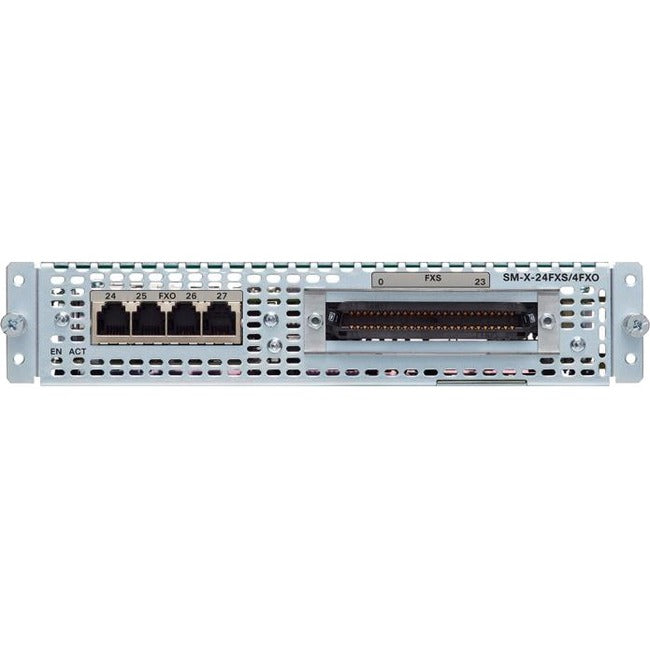

Cisco Single-Wide High Density Analog Voice Service Module with 24 FXS and 4 FXO - SM-X-24FXS/4FXO=

    Product form
    • Cisco Systems, Inc

    Cisco Single-Wide High Density Analog Voice Service Module with 24 FXS and 4 FXO - SM-X-24FXS/4FXO=

      General Information Manufacturer: Cisco Systems, Inc Manufacturer Part Number: SM-X-24FXS/4FXO= Manufacturer Website Address: http://www.cisco.com Brand Name: Cisco Product Name: Single-Wide... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $8,114.14

      Business-to-Business Sales Only
      We sell exclusively to businesses, government agencies, educational institutions, organizations, and U.S. military bases within the United States. A valid business email address is required.

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: SMX24FXS4FXOC
        Barcode: 000000000000

        Size chart

        General Information

      • Manufacturer: Cisco Systems, Inc
      • Manufacturer Part Number: SM-X-24FXS/4FXO=
      • Manufacturer Website Address: http://www.cisco.com
      • Brand Name: Cisco
      • Product Name: Single-Wide High Density Analog Voice Service Module with 24 FXS and 4 FXO
      • Marketing Information: The Cisco® High-Density Analog Voice and Fax Service Modules provide enterprises, managed services providers, and service providers the ability to directly connect public-switched telephone networks (PSTNs) and existing telephony equipment to Cisco 4000 Series Integrated Services Routers (ISRs). These fixed-port (FXS and FXO) modules provide Dual-Tone Multifrequency (DTMF) detection, voice compression and decompression, call progress tone generation, Voice Activity Detection (VAD), echo cancellation, and adaptive jitter buffering.

        Product details

        The FXO port is used to connect to PBX or key systems, or to provide off-premises connections to the PSTN. It supports battery reversal detection and caller ID. The FXO port is also used to connect to analog Centralized Automatic Message Accounting (CAMA) trunks to provide dedicated E-911 service (in North America only).

        The FXS port is used to connect analog phones, modems, fax machines, and speaker phones to an enterprise IP voice system, so you can use them as extensions to your Cisco or third-party IP call-control system. Having these devices tightly integrated with the IP-based phone system is advantageous for increased manageability, scalability, and cost-effectiveness. The Direct Inward Dialing (DID) port is used to provide off-premises DID connection from the central office. It serves only incoming calls from the PSTN. Caller ID is not supported in DID mode.
      • Product Type: Service Module

        • Technical Information

      • Application/Usage: Voice

        • Interfaces/Ports

      • Total Number of Ports: 28
      • Connector Type:
        • RJ-11
        • RJ-21

      • Interfaces/Ports Details:
        • 24 x RJ-21 FXS
        • 4 x RJ-11 FXO

        • Media & Performance

      • Media Type Supported: Twisted Pair
      • Twisted Pair Cable Standard:
        • Category 3
        • Category 5

        • Physical Characteristics

      • Height: 1.6"
      • Width: 7.4"
      • Depth: 7.6"
      • Weight (Approximate): 2.12 lb

        • Miscellaneous

      • Compatibility: Cisco 4000 Series ISRs
      • Country of Origin: China
        •
