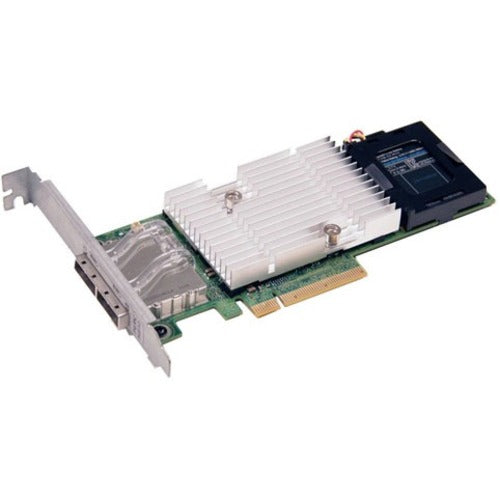

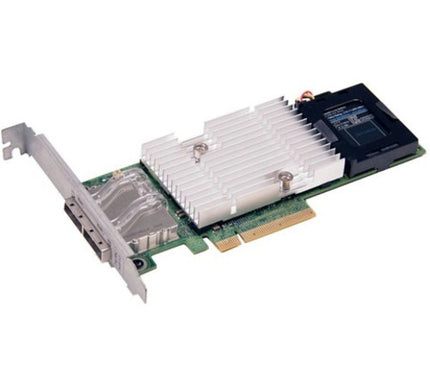

Dell PERC H810 Adapter RAID Controller Card - 469-2138

    Product form
    • Dell Technologies

    Dell PERC H810 Adapter RAID Controller Card - 469-2138

      General Information Manufacturer: Dell Technologies Manufacturer Part Number: 469-2138 Manufacturer Website Address: http://www.delltechnologies.com Brand Name: Dell Product Model: PERC H810... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $247.46

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: NK6554

        Size chart

        General Information

      • Manufacturer: Dell Technologies
      • Manufacturer Part Number: 469-2138
      • Manufacturer Website Address: http://www.delltechnologies.com
      • Brand Name: Dell
      • Product Model: PERC H810
      • Product Name: PERC H810 Adapter RAID Controller Card
      • Marketing Information:

        The PERC H810, Premium External RAID controller from DellTM, is based on LSI´s Thunderbolt (2208) ROC, which offers dual PPC 800 MHz cores, along with 6Gb/s SAS, 1333 DDR3 cache and PCIe 2.0 interface support. The PERC H810 operates on PERC 8.0 FW Stack and supports RAID Levels 0, 1, 10, 5, 50, 6, and 60.

        The PERC H810 is available in either Low profile or Full Height Adapter form. The PERC H810 only supports External Storage and is targeted at Premium Enterprise customers. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.


      • Product Type: SAS Controller

        • Technical Information

      • Host Interface: PCI Express 2.0 x8
      • Controller Type: 6Gb/s SAS
      • RAID Supported: Yes
      • RAID Levels:
        • 0
        • 1
        • 5
        • 6
        • 10
        • 50
        • 60

        • Memory

      • Cache Memory: 1 GB

        • Interfaces/Ports

      • Total Number of SAS Ports: 2
      • Number of SAS Ports (External): 2
      • SAS Connector Details: 2 x SFF-8088

        • Physical Characteristics

      • Form Factor: Plug-in Card
      • Card Height: Full-height
      • Height: 2.5"
      • Width: 6.6"

        • Miscellaneous

      • Platform Supported:
        • PC
        • Linux

        •
