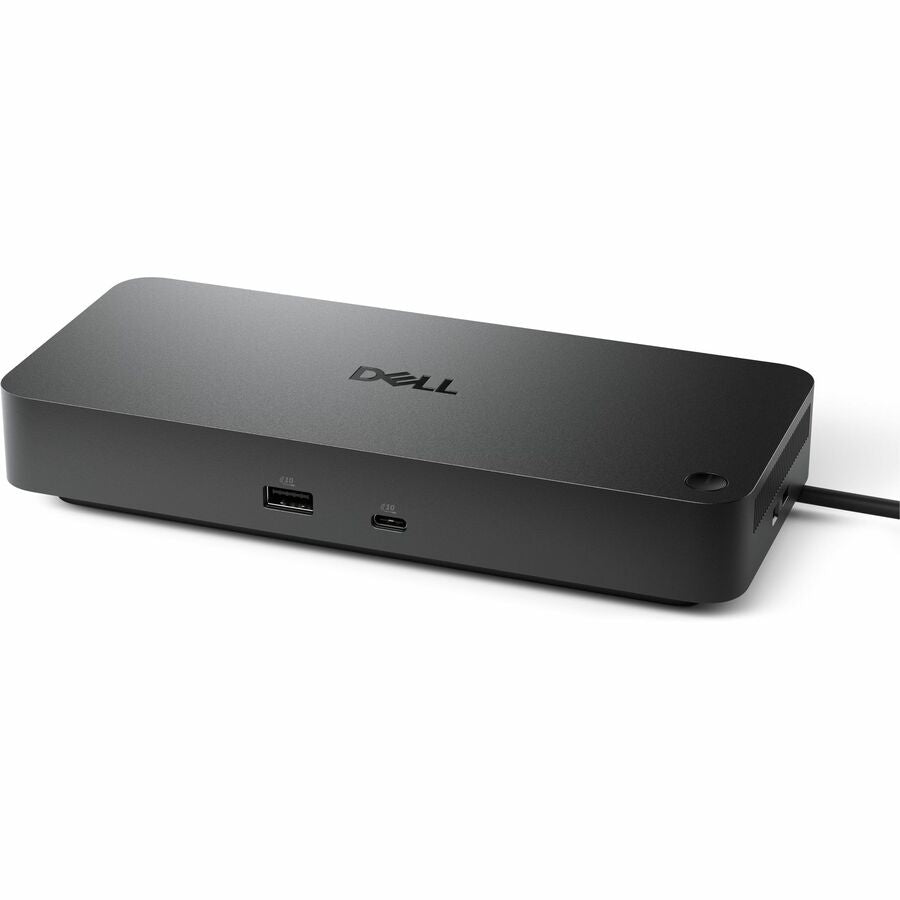

Dell Pro Thunderbolt 5 Dock - WD25TB5 - DELL-WD25TB5

    Product form
    • Dell Technologies

    Dell Pro Thunderbolt 5 Dock - WD25TB5 - DELL-WD25TB5

      General Information Manufacturer: Dell Technologies Manufacturer Part Number: DELL-WD25TB5 Manufacturer Website Address: http://www.delltechnologies.com Brand Name: Dell Product Series: Pro Product... Read more

      46 in stock Order today, shipped 1-2 business days

      $522.94

      Business-to-Business Sales Only
      We sell exclusively to businesses, government agencies, educational institutions, organizations, and U.S. military bases within the United States. A valid business email address is required.

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
            Have a question on this product? Fill out the form below.
          Send us a message!

          SKU: 210BTMT
          Barcode: 884116493754

          Size chart

          General Information

        • Manufacturer: Dell Technologies
        • Manufacturer Part Number: DELL-WD25TB5
        • Manufacturer Website Address: http://www.delltechnologies.com
        • Brand Name: Dell
        • Product Series: Pro
        • Product Model: WD25TB5
        • Product Name: Pro Thunderbolt 5 Dock - WD25TB5
        • Marketing Information:

          Power AI productivity

          Maximize AI PC productivity with the industry's most powerful Thunderbolt 5 dock and seamlessly run Gen AI tools across up to four 4K 120Hz displays. Featuring Extended Power Range, deliver up to 300W over a single USB-C cable to power even the highest-performance AI PCs, while modern ports ensure broad connectivity.

          Accelerate manageability

          Delivering ultimate IT efficiency across the modern workspace.

          Improved manageability

          Manage your dock through the Dell Device Management Console, using the Dell Display and Peripheral Manager along with the Dell Device Management Agent installed on your PC.

          Simplify firmware updates

          Reduce IT complexity by deploying a single firmware file across workspaces. Minimize end-user disruption with silent firmware updates, executed upon dock disconnection.

          Unlock out-of-band management on select Intel® vPro® PCs with Intel® Active Management Technology (Intel® AMT) over

          Work with confidence

          Enhance your docking experience across brands with universally compatible features including MAC Address Pass-Through and Power Button Sync.

          Connect your way

          Configure your workspace to your liking with an ambidextrous USB-C cable[3] that can be routed left or right.

          Improved sustainability

          The new generation of Dell Pro Docks reflect a commitment to sustainable design innovation to reduce environmental impact. The WD25TB5 is built with sustainable materials and packaged with at least 65% post-recycled content (PCR) plastic and 100% recycled or renewable packaging.


        • Packaged Quantity: 1 Unit
        • Product Type: Docking Station

          • Technical Information

        • Connectivity Technology: Wired
        • Number of Displays Supported: 4
        • Supported Resolutions:
          • 3840 x 2160
          • 5120 x 2160
          • 2560 x 1440
          • 3440 x 1440
          • 7680 x 4320
          • 6144 x 3456

        • Screen Mode Supported:
          • QHD @ 60Hz
          • WQHD @ 60Hz
          • 4K @ 60Hz
          • 5K @ 60Hz
          • 6K @ 60Hz
          • 8K @ 60Hz
          • 4K @ 120Hz

        • Management Features:
          • Intel AMT over Thunderbolt with select Intel vPro PCs
          • MAC Address Pass-through
          • PXE Boot
          • Dock Power Button Sync
          • Wake-on-LAN
          • WLAN to LAN Switch
          • Kernel Direct Memory Access (DMA) Protection
          • Dell Command Update (DCU)
          • Port Disablement
          • Host PC based firmware update
          • Firmware update on disconnect

        • Device Supported:
          • Notebook
          • Desktop PC

          • Network & Communication

        • Ethernet Technology: 2.5 Gigabit Ethernet

          • Interfaces/Ports

        • Host Interface: Thunderbolt 5
        • Total Number of USB Ports: 6
        • Number of USB 3.2 Gen 2 Type-A Ports: 4
        • Number of USB 3.2 Gen 2 Type-C Ports: 1
        • Number of USB Type-C Ports: 2
        • USB Type-C: Yes
        • USB Type-C Detail: 1 x USB-C 3.2 Gen 2 (10 Gbps), (15W), 1 x USB-C Multi-function DisplayPort (7.5W)
        • Number of USB Type-A Ports: 4
        • USB Type-A: Yes
        • Network (RJ-45): Yes
        • Number of DisplayPorts: 2
        • DisplayPort: Yes
        • DisplayPort Version: 2.1
        • Number of HDMI Ports: 1
        • HDMI: Yes
        • Thunderbolt 5: Yes
        • Thunderbolt Ports Quantity: 2
        • Number of Thunderbolt 5 Ports: 2
        • Total Number of Ports: 12

          • Software

        • Operating System Supported:
          • Windows 10
          • Windows 11
          • Ubuntu 24.04
          • Red Hat Enterprise Linux 9.7
          • ChromeOS 141
          • macOS

          • Power Description

        • Maximum Power Supply Wattage: 330 W

          • Physical Characteristics

        • Height: 1.39"
        • Width: 3.54"
        • Depth: 8.07"
        • Weight (Approximate): 1.37 lb

          • Miscellaneous

        • Package Contents:
          • Pro Thunderbolt 5 Dock - WD25TB5
          • Power Adapter
          • Power Cord
          • Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)

        • Kensington Security Slot: Yes

          • Warranty

        • Limited Warranty: 3 Year
        • Additional Warranty Information:
          • 3-Year Limited Hardware Warranty with Advanced Exchange
          • Additional 4- & 5-year warranty optional

          •
