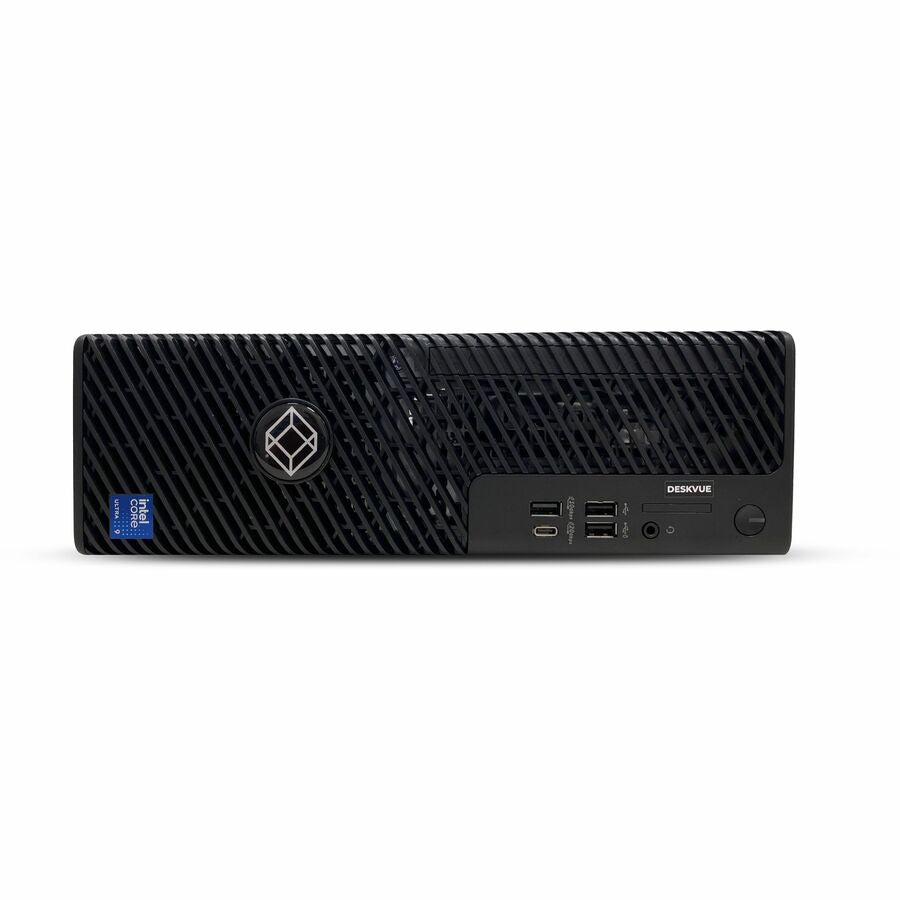

Emerald® DESKVUE PE+ Multi-Source Receiver - Quad-Monitor, Fiber - EMD5004FPE-R

    Product form
    • Black Box Corporation

    Emerald® DESKVUE PE+ Multi-Source Receiver - Quad-Monitor, Fiber - EMD5004FPE-R

      General Information Manufacturer: Black Box Corporation Manufacturer Part Number: EMD5004FPE-R Manufacturer Website Address: http://www.blackbox.com Brand Name: Emerald® Product Line: DESKVUE... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $7,024.38

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 880W43
        Barcode: 0822088289647

        General Information

      • Manufacturer: Black Box Corporation
      • Manufacturer Part Number: EMD5004FPE-R
      • Manufacturer Website Address: http://www.blackbox.com
      • Brand Name: Emerald®
      • Product Line: DESKVUE
      • Product Name: DESKVUE PE+ Multi-Source Receiver - Quad-Monitor, Fiber
      • Marketing Information:

        Emerald DESKVUE Professional Edition with Fiber (PE+)

        Emerald DESKVUE is more than a KVM receiver. It is the control platform for the most demanding environments, where performance, scale, and distance all matter at once. It carries the full four-monitor, 16-tile workspace of the Professional Edition and adds fiber-enabled 10G connectivity, so live sources can be brought together across a large facility or distributed across multiple rooms without losing speed. With RDP and PCoIP support and H.264 and H.265 compatibility, PE+ is built for large-scale control rooms and distributed operations that need maximum throughput over long distances.

        In control rooms, security environments, and transportation control centers, operators are expected to monitor, analyze, and act across dozens of systems at once. Traditional approaches force them to switch between sources, creating delays, increasing risk, and breaking focus. DESKVUE eliminates that problem entirely.

        Whether for virtual, physical, or cloud applications, DESKVUE is built for control rooms, command-and-control centers, air traffic control, broadcast operations, security operations centers, and maritime bridges.

        Build and Control Video Walls

        The Canvas feature extends Boxilla management to video walls built on Emerald DESKVUE receivers. Design display layouts, assign sources, configure workspace settings, and switch configurations instantly. No separate video wall controller required. Just a much better way to run the room. License required.

        DESKVUE PE+ Multi-Source Receiver delivers key advantages, including:

      • Work in virtual machines as if they were local. Native RDP, PCoIP, and PCoIP Ultra
      • Access from native Windows and macOS apps, with no receiver hardware to buy per seat.
      • Manage physical KVM, virtual machines, and network from a single pane in Boxilla.
      • Enterprise capability at mid-market pricing, for the best total cost of ownership in its class.
      • NOTE: Use only with SFP transceiver EMD-LSP-5000 (Multimode) or LSP-5001 (Singlemode), sold separately.


      • Packaged Quantity: 1
      • Product Type: KVM Extender Receiver
      • Technical Information

      • Connectivity Technology: Wired
      • Number of Computers Supported: 16
      • Maximum Operating Distance: 328.08 ft
      • Device Type: KVM Extender
      • Video

      • Graphic Mode: 5K
      • Maximum Video Resolution: 5120 x 2880
      • Interfaces/Ports

      • Host Interface: DisplayPort
      • USB: Yes
      • DisplayPort: Yes
      • Number of USB Ports: 10
      • Power Description

      • Input Voltage:
        • 100 V AC
        • 240 V AC

      • Power Consumption: 300 W
      • Physical Characteristics

      • Receiver Height: 11.42"
      • Receiver Width: 3.65"
      • Receiver Depth: 11.53"
      • Receiver Weight (Approximate): 8.52 lb
      • Miscellaneous

      • Package Contents:
        • DESKVUE PE Multi-Source Receiver - Quad-Monitor, Fiber
        • 1x Country Specific Power Cord
        • 1x 4 Mini DP to DP Adapter

      • Platform Supported:
        • Windows
        • Mac

      • Environmental Compliance:
        • Restriction of Hazardous Substances (RoHS)
        • Waste Electrical and Electronic Equipment Directive (WEEE)

      • Country of Origin: Poland
      • TAA Compliant: Yes
      • Warranty

      • Limited Warranty: 2 Year
