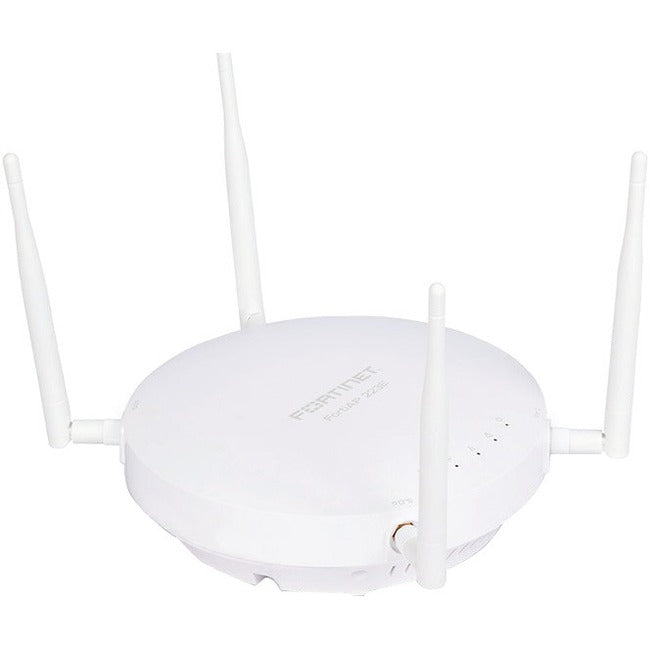

Fortinet FortiAP 223E IEEE 802.11ac 1.14 Gbit/s Wireless Access Point - FAP-223E-A

    Product form
    • Fortinet, Inc

    Fortinet FortiAP 223E IEEE 802.11ac 1.14 Gbit/s Wireless Access Point - FAP-223E-A

      General Information Manufacturer: Fortinet, Inc Manufacturer Part Number: FAP-223E-A Manufacturer Website Address: http://www.fortinet.com Brand Name: Fortinet Product Line: FortiAP Product... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $188.14

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 2AV670
        Barcode: 0842382129487

        Size chart

        General Information

      • Manufacturer: Fortinet, Inc
      • Manufacturer Part Number: FAP-223E-A
      • Manufacturer Website Address: http://www.fortinet.com
      • Brand Name: Fortinet
      • Product Line: FortiAP
      • Product Model: 223E
      • Product Name: FortiAP 223E Wireless Access Point
      • Marketing Information: FortiAP access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or can be managed through the FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the market leading FortiGate appliance, Fortinet delivers a true Unified Access Layer. This enables you to easily manage wired and wireless security from a Singlepane-of-glass management console and protects your network from the latest security threats.

        Unified Management

        Product Offerings Unified management console simplifies operations, ensuring consistent and effective policy enforcement and compliance.

        Advanced Security Protection

        Wireless LAN security done right, from the leader in network security. Integrated Firewall, IPS, Application Control, and Web Filtering protect the wireless LAN from the latest security threats.

        Built-in WiFi Security

        Protects the network from advanced wireless threats and satisfies PCI DSS compliance.

      • Product Type: Wireless Access Point

        • Technical Information

      • Wireless LAN Standard: IEEE 802.11ac
      • Frequency Band:
        • 5 GHz
        • 2.40 GHz

      • Total Number of Antennas: 4
      • Number of External Antennas: 4
      • Wireless Transmission Speed: 1.14 Gbit/s
      • MIMO Technology: Yes
      • Beamforming Technology: Yes

        • Interfaces/Ports

      • Ethernet Technology: Gigabit Ethernet
      • Number of Network (RJ-45) Ports: 1
      • PoE PD Port: Yes
      • VGA: No
      • HDMI: No
      • Powerline: No
      • Management Port: Yes

        • Physical Characteristics

      • Form Factor:
        • Ceiling Mountable
        • Wall Mountable
        • Rail-mountable

      • Height: 1.9"
      • Diameter: 6.3"
      • Weight (Approximate): 1.10 lb

        • Miscellaneous

      • Package Contents:
        • FortiAP 223E Wireless Access Point
        • Ceiling, T-Rail and Wall mount kit
        • 8 Dipole Antennas

      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Country of Origin: Taiwan

        • Warranty

      • Limited Warranty: Lifetime
        •
