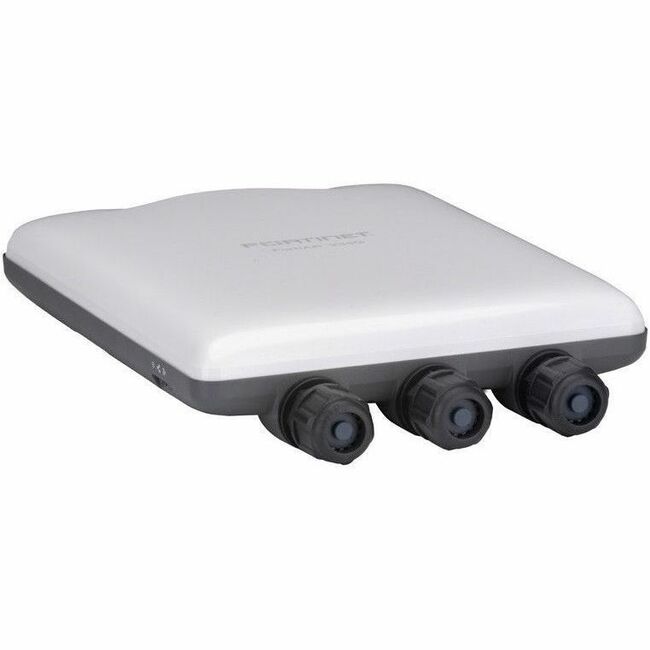

Fortinet FortiAP 234G Tri Band Wi-Fi 6E IEEE 802.11 a/b/g/n/ac/ax/e/i/r/k/v/w/u 4.08 Gbit/s Wireless Access Point - Indoor/Outdoor - FAP-234G-A

    Product form
    • Fortinet, Inc

    Fortinet FortiAP 234G Tri Band Wi-Fi 6E IEEE 802.11 a/b/g/n/ac/ax/e/i/r/k/v/w/u 4.08 Gbit/s Wireless Access Point - Indoor/Outdoor - FAP-234G-A

      General Information Manufacturer: Fortinet, Inc Manufacturer Part Number: FAP-234G-A Manufacturer Website Address: http://www.fortinet.com Brand Name: Fortinet Product Line: FortiAP Product... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $847.18

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: FAP234GAS
        Barcode: 195875312065

        Size chart

        General Information

      • Manufacturer: Fortinet, Inc
      • Manufacturer Part Number: FAP-234G-A
      • Manufacturer Website Address: http://www.fortinet.com
      • Brand Name: Fortinet
      • Product Line: FortiAP
      • Product Model: 234G
      • Product Name: FortiAP 234G Wireless Access Point
      • Marketing Information:

        This enterprise class Wi-Fi 6E ruggedized indoor/outdoor AP provides three radios with internal antennas and two spatial streams. This access point supports the 6 GHz band, OFDMA, a 2.5 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port for PoE diversity. The AP can provide 24/7 scanning across all bands while still providing access on both the 2.4 GHz and 5 GHz bands or 2.4 Ghz and dual 5 GHz service or the AP can be configured to provide simultaneous access on 2.4 GHz, 5 GHz, and the 6 GHz bands. The integrated BLE radio can be used for beacons and locationing applications.


      • Product Type: Wireless Access Point

        • Technical Information

      • Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/e/i/r/k/v/w/u
      • Network Band: Tri Band
      • Frequency Band:
        • 2.40 GHz
        • 5 GHz
        • 6 GHz

      • Total Number of Antennas: 8
      • Number of Internal Antennas: 8
      • Indoor/Outdoor: Indoor/Outdoor
      • Wireless Transmission Speed: 4.08 Gbit/s
      • MIMO Technology: Yes
      • MIMO Type: Multi User MIMO
      • Data Encryption: Yes
      • Encryption Standard:
        • EAP-TLS
        • EAP-TTLS
        • PEAPv0
        • PEAPv1
        • MSCHAPv2
        • EAP-GTC
        • EAP-SIM
        • EAP-AKA
        • EAP-FAST
        • WPA
        • WPA2
        • WPA3
        • WEP

      • Ingress Protection (IP) Rating: IP67
      • AI-powered: Yes

        • Interfaces/Ports

      • Ethernet Technology:
        • 2.5 Gigabit Ethernet
        • Gigabit Ethernet

      • Number of Network (RJ-45) Ports: 2
      • PoE PD Port: Yes
      • USB: Yes
      • Management Port: Yes

        • Network & Communication

      • Wi-Fi Generation: Wi-Fi 6E

        • Power Description

      • Power Consumption: 28 W

        • Physical Characteristics

      • Form Factor:
        • Wall Mountable
        • Pole-mountable
        • Desktop

      • Antenna Form Factor: Internal
      • Height: 2.3"
      • Width: 8.5"
      • Depth: 10.2"
      • Weight (Approximate): 3.05 lb

        • Miscellaneous

      • Package Contents:
        • FortiAP 234G Wireless Access Point
        • Wall and Pole Installation Brackets with Mounting Kits
        • PoE Injector

      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)

        • Warranty

      • Limited Warranty: Lifetime
        •
