Fortinet FortiAP 23JF Dual Band Wi-Fi 6 IEEE 802.11 a/b/d/e/g/h/i/j/k/n/r/v/w/ac/ax 1.73 Gbit/s Wireless Access Point - Indoor - FAP-23JF-K

    Product form
    • Fortinet, Inc

    Fortinet FortiAP 23JF Dual Band Wi-Fi 6 IEEE 802.11 a/b/d/e/g/h/i/j/k/n/r/v/w/ac/ax 1.73 Gbit/s Wireless Access Point - Indoor - FAP-23JF-K

      General Information Manufacturer: Fortinet, Inc Manufacturer Part Number: FAP-23JF-K Manufacturer Website Address: http://www.fortinet.com Brand Name: Fortinet Product Line: FortiAP Product... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $371.57

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: KS3524
        Barcode: 0195875010145

        Size chart

        General Information

      • Manufacturer: Fortinet, Inc
      • Manufacturer Part Number: FAP-23JF-K
      • Manufacturer Website Address: http://www.fortinet.com
      • Brand Name: Fortinet
      • Product Line: FortiAP
      • Product Model: 23JF

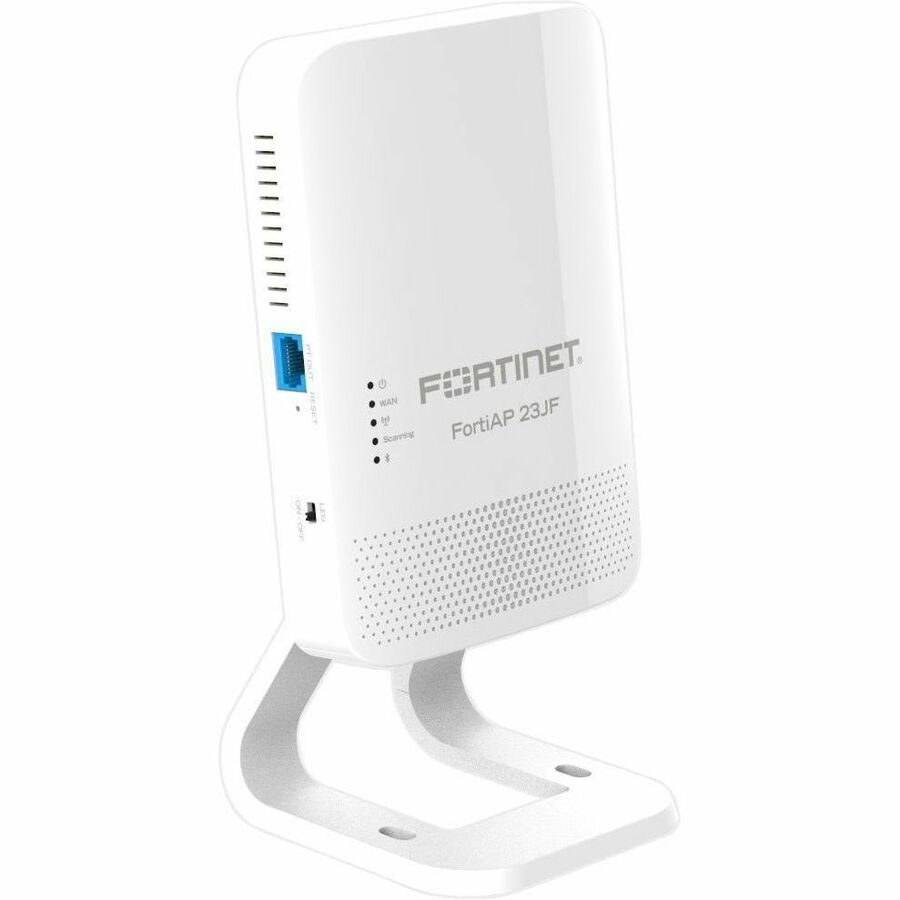

      • Product Name: FortiAP 23JF Wireless Access Point
      • Marketing Information:

        This enterprise class Wi-Fi 6 wall plate AP provides three radios with internal antennas and two spacial streams, as well as features such as OFDMA and is PSE-capable. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 GHz and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications. Additional features include PoE out for downstream devices and RJ45 passthrough. This access point can be installed in minutes, right over the existing wall plate , or with the optional desk mount, makes a perfect remote / work from home AP.


      • Product Type: Wireless Access Point

        • Technical Information

      • Wireless LAN Standard: IEEE 802.11 a/b/d/e/g/h/i/j/k/n/r/v/w/ac/ax
      • Network Band: Dual Band
      • Frequency Band:
        • 2.40 GHz
        • 5 GHz

      • Total Number of Antennas: 3
      • Number of Internal Antennas: 3
      • Indoor/Outdoor: Indoor
      • Wireless Transmission Speed: 1.73 Gbit/s
      • MIMO Technology: Yes
      • MIMO Type: Multi User MIMO
      • Data Encryption: Yes
      • Encryption Standard:
        • EAP-TLS
        • EAP-TTLS
        • MSCHAPv2
        • PEAPv0
        • PEAPv1
        • EAP-GTC
        • EAP-SIM
        • EAP-AKA
        • EAP-FAST
        • WEP
        • WPA-PSK
        • WPA2-PSK
        • WPA3-PSK

        • Interfaces/Ports

      • Ethernet Technology: Gigabit Ethernet
      • Number of Network (RJ-45) Ports: 7
      • PoE (RJ-45) Port: Yes
      • PoE PD Port: Yes
      • Management Port: Yes

        • Network & Communication

      • Wi-Fi Generation: Wi-Fi 6

        • Power Description

      • Power Consumption: 17.50 W

        • Physical Characteristics

      • Form Factor:
        • Wall Plate
        • Desktop
        • Ceiling Mountable
        • Wall Mountable
        • Rail-mountable

      • Antenna Form Factor: Internal
      • Height: 1.1"
      • Width: 4.6"
      • Depth: 6.6"
      • Weight (Approximate): 15.84 oz

        • Miscellaneous

      • Package Contents:
        • FortiAP 23JF Wireless Access Point
        • Standard Mount kit for Ceiling, T-Rail, and Wall

      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)

        • Warranty

      • Limited Warranty: Lifetime
        •
