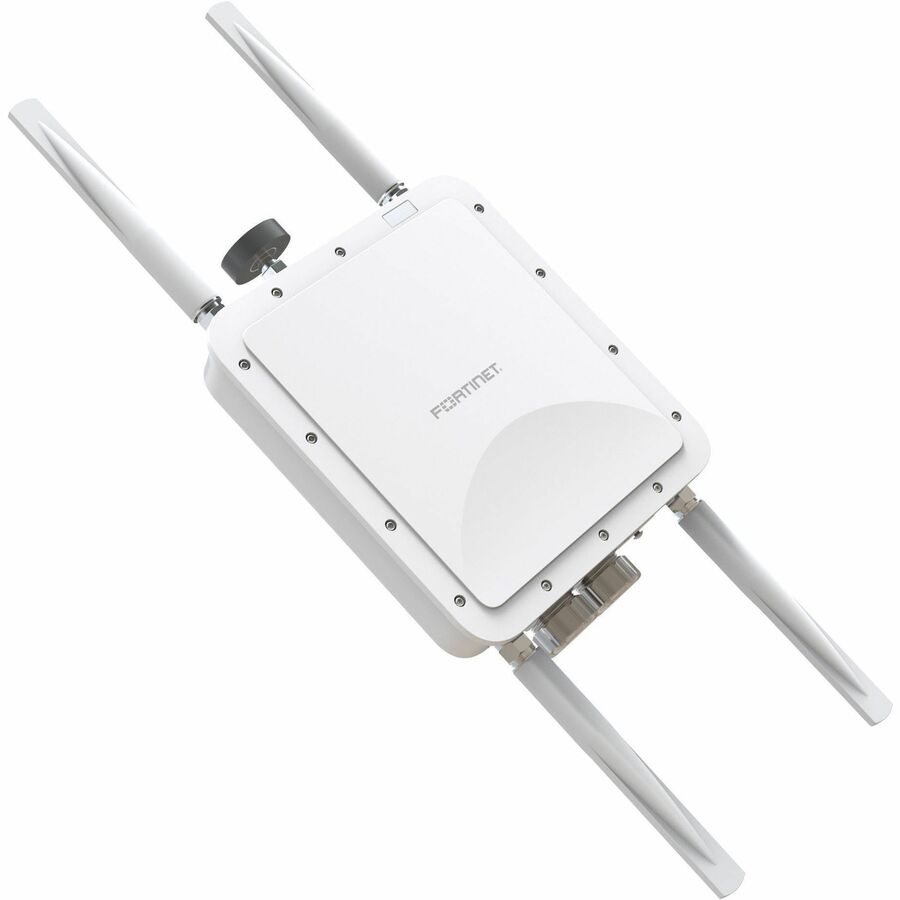

Fortinet FortiAP FAP-222KL Dual Band Wi-Fi 7 IEEE 802.11a/b/e/g/h/i/j/k/n/r/v/u/w/ac/ax/be/mc 4.32 Gbit/s Wireless Access Point - Outdoor - Yes - FAP-222KL-V

    Product form
    • Fortinet, Inc

    Fortinet FortiAP FAP-222KL Dual Band Wi-Fi 7 IEEE 802.11a/b/e/g/h/i/j/k/n/r/v/u/w/ac/ax/be/mc 4.32 Gbit/s Wireless Access Point - Outdoor - Yes - FAP-222KL-V

      General Information Manufacturer: Fortinet, Inc Manufacturer Part Number: FAP-222KL-V Manufacturer Website Address: http://www.fortinet.com Brand Name: Fortinet Product Line: FortiAP Product... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $2,172.98

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 300E90

        Size chart

        General Information

      • Manufacturer: Fortinet, Inc
      • Manufacturer Part Number: FAP-222KL-V
      • Manufacturer Website Address: http://www.fortinet.com
      • Brand Name: Fortinet
      • Product Line: FortiAP
      • Product Model: FAP-222KL
      • Product Name: FortiAP FAP-222KL Wireless Access Point
      • Marketing Information:

        This enterprise class Wi-Fi 7 ruggedized outdoor AP provides two Wi-Fi radios with external antennas and two spatial streams. This access point supports LoRaWAN modules plus LTE Backhaul in addition to 1x 2.5 Gbps PoE and 1x 1 Gbps RJ45 Ethernet port that can also be PSE-PD. The AP can provide background scan across all bands while still providing access on all the 2.4 GHz and 5 GHz bands making it more advanced for IoT applications.


      • Product Type: Wireless Access Point

        • Technical Information

      • Wireless LAN Standard: IEEE 802.11a/b/e/g/h/i/j/k/n/r/v/u/w/ac/ax/be/mc
      • Network Band: Dual Band
      • Frequency Band:
        • 2.40 GHz
        • 5 GHz

      • Total Number of Antennas: 5
      • Number of External Antennas: 5
      • Indoor/Outdoor: Outdoor
      • Wireless Transmission Speed: 4.32 Gbit/s
      • MIMO Technology: Yes
      • MIMO Type: Multi User MIMO
      • Number of Bandwidth Streams: 2
      • Data Encryption: Yes
      • Encryption Standard:
        • EAP-TLS
        • EAP-TTLS
        • MSCHAPv2
        • PEAPv0
        • EAP-MSCHAPv2
        • PEAPv1
        • EAP-GTC
        • EAP-SIM
        • EAP-AKA
        • EAP-FAST
        • WPA
        • WPA2
        • WPA3
        • WEP
        • WPA-PSK
        • WPA2-PSK
        • WPA3-PSK

      • Ingress Protection (IP) Rating: IP67
      • AI-powered: Yes
      • Mesh Supported: Yes

        • Interfaces/Ports

      • Ethernet Technology:
        • Ethernet
        • Fast Ethernet
        • Gigabit Ethernet
        • 2.5 Gigabit Ethernet

      • Number of Network (RJ-45) Ports: 2
      • PoE (RJ-45) Port: Yes
      • PoE PD Port: Yes
      • Management Port: Yes

        • Network & Communication

      • Wi-Fi Generation: Wi-Fi 7

        • Power Description

      • Power Consumption: 26 W

        • Physical Characteristics

      • Form Factor:
        • Pole-mountable
        • Wall Mountable
        • Desktop

      • Antenna Form Factor: External
      • Height: 2.4"
      • Width: 8.7"
      • Depth: 8.7"
      • Weight (Approximate): 5.95 lb

        • Miscellaneous

      • Package Contents:
        • FortiAP FAP-222KL Wireless Access Point
        • Wall and Pole Mounting Brackets
        • Grounding Cable
        • PoE Injector

      • Application/Usage:
        • Office
        • Campus

        • Warranty

      • Limited Warranty: Lifetime
        •
