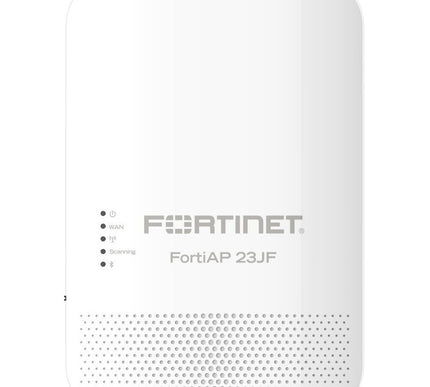

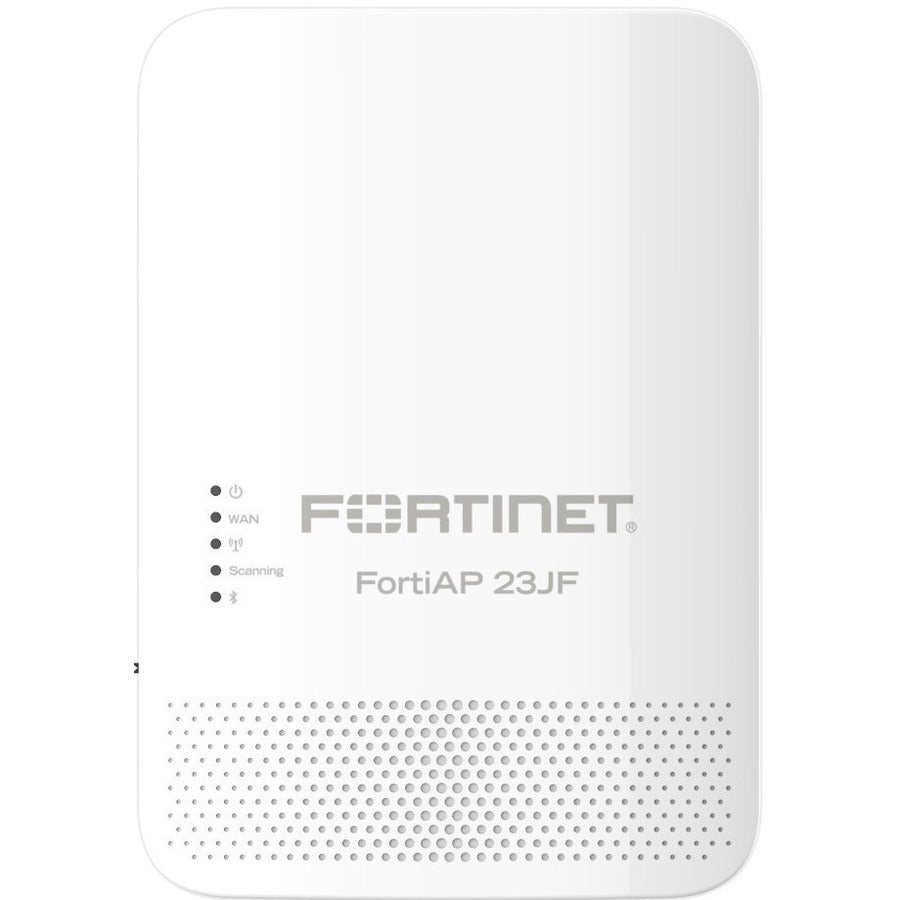

Fortinet FortiAP FAP-23JF 802.11ax 1.73 Gbit/s Wireless Access Point - Indoor - FAP-23JF-N

    Product form
    • Fortinet, Inc

    Fortinet FortiAP FAP-23JF 802.11ax 1.73 Gbit/s Wireless Access Point - Indoor - FAP-23JF-N

      General Information Manufacturer: Fortinet, Inc Manufacturer Part Number: FAP-23JF-N Manufacturer Website Address: http://www.fortinet.com Brand Name: Fortinet Product Line: FortiAP Product... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $371.57

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 8WC914
        Barcode: 0195875010145

        Size chart

        General Information

      • Manufacturer: Fortinet, Inc
      • Manufacturer Part Number: FAP-23JF-N
      • Manufacturer Website Address: http://www.fortinet.com
      • Brand Name: Fortinet
      • Product Line: FortiAP
      • Product Model: FAP-23JF
      • Product Name: 2x2 Wall-mount Tri-radio AP, Internal Antennas
      • Marketing Information:

        This enterprise class Wi-Fi 6 wall plate AP provides three radios with internal antennas as well as features such as OFDMA and is PSE-capable. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications. Additional features include PoE out for downstream devices and RJ45 passthrough. This access point can be installed in minutes, right over the existing wall plate.


      • Product Type: Wireless Access Point

        • Technical Information

      • Wireless LAN Standard: 802.11ax
      • Frequency Band:
        • 2.40 GHz
        • 5 GHz

      • Indoor/Outdoor: Indoor
      • Wireless Transmission Speed: 1.73 Gbit/s
      • MIMO Technology: Yes
      • Data Encryption: Yes
      • Encryption Standard:
        • WPA
        • WPA2
        • WPA3
        • WEP
        • WPA-PSK
        • WPA2-PSK
        • WPA3-PSK

      • Ingress Protection (IP) Rating: IP67

        • Interfaces/Ports

      • Ethernet Technology: Gigabit Ethernet
      • Number of Network (RJ-45) Ports: 7
      • PoE (RJ-45) Port: Yes
      • PoE PD Port: Yes
      • Management Port: Yes

        • Power Description

      • Power Consumption: 17.50 W

        • Physical Characteristics

      • Form Factor:
        • Wall Plate
        • Desktop
        • Ceiling Mountable
        • Rail-mountable
        • Wall Mountable

      • Antenna Form Factor: Internal
      • Height: 1.1"
      • Width: 4.6"
      • Depth: 6.6"
      • Weight (Approximate): 15.84 oz

        • Miscellaneous

      • Package Contents:
        • 2x2 Wall-mount Tri-radio AP, Internal Antennas
        • Standard Mount Kit for Ceiling, T-Rail, and Wall

      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Country of Origin: Taiwan

        • Warranty

      • Limited Warranty: Lifetime
        •
