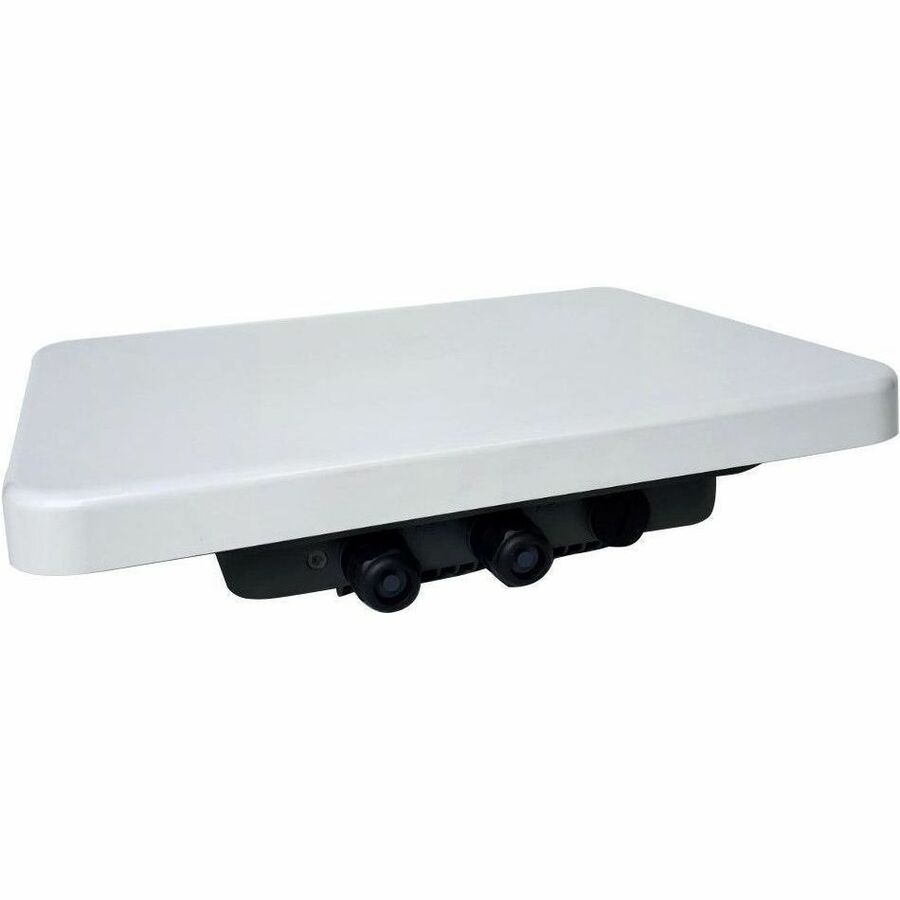

Marketing Information: FortiAP-HD -444Kx and -224Kx Series | Ultra High Density
Fortinet provides the industry's leading Wi-Fi solutions addressing today's ultra-high density (UHD) challenges, such as multi-devices per user, high capacity, fast throughput, low latency, and low total cost of ownership (TCO). Our solutions leverage the Fortinet Wi-Fi platform, designed and built specifically for UHD venues such as stadiums, arenas, meeting centers, shopping malls, transport hubs, auditoriums, campuses, and smart cities.
An Industry First... Again
Fortinet's Wi-Fi solutions utilize the high performance Wi-Fi 7 Series APs in the 5/6 GHz band (AFC standard power): 444KW for short-range, 444KN for mid-range, and 224Kx for long range. Designed as a single enclosure for overhead mounting, the Series is built on Fortinet's pioneering, field-proven, and next-generation products exhibiting industry firsts: 1) quad Wi-Fi 7 802.11be radios, 2) patented antenna technology for UHD venues, 3) multi-radio beamforming and shaping, 4) 16 MIMO streams, 5) 15 Gbps backhaul, and 6) small form factor.
Built From The Ground Up
The Series employs the industry's only four Wi-Fi 7 radios configurable in two modes: 1) 3x 5 GHz and 1x 6 GHz or, 2) 2x 5 GHz and 2x 6 GHz. With minimal internal radio interference along with using 2x 6 GHz radios, the Series utilizes all 1.74 GHz of bandwidth in 5/6 GHz bands, providing the highest and most flexible capacity in the industry.
In addition, the Series employs patented multi-antennas exhibiting directional, reconfigurable, beamforming and shaping, optimized multi-beams. This reach enables a variety of venueadaptable antenna patterns to achieve focused signals to intended users for best coverage while reducing interference to unintended users, two key factors in successful UHD deployments. Furthermore, all multi-antennas provide polarization and pattern diversity for efficient spatial and frequency reuse capabilities.
Finally, the Series takes advantage of key Wi-Fi 7 features such as DL/UL OFDMA, TWT, BSS coloring, Preamble Puncturing (future), and MLO (future). In combination with the above features, the Series attains highest user engagements, best-in-class capacity along with unmatched flexibility, installation simplicity and speed, and low TCO.
The Series also provides advanced radio resource management, active multi-radio client load balancing, and assisted roaming, which are fully supported by Fortinet's WLAN controller. Through its simple and clear user interface, the Series are easily and quickly configured, managed, monitored, and assessed with minimal user interaction, providing operational efficiency and system scalability.
