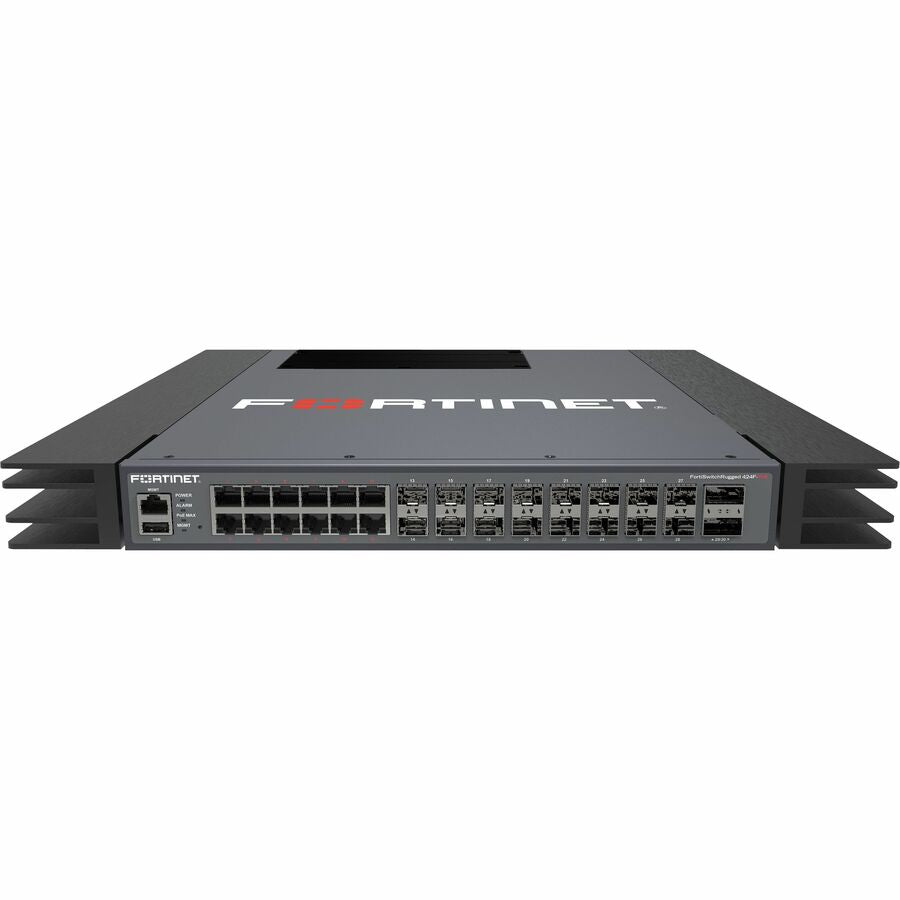

Fortinet FortiSwitch Ethernet Switch - FSR-424F-POE

    Product form
    • Fortinet, Inc

    Fortinet FortiSwitch Ethernet Switch - FSR-424F-POE

      General Information Manufacturer: Fortinet, Inc Manufacturer Part Number: FSR-424F-POE Manufacturer Website Address: http://www.fortinet.com Brand Name: Fortinet Product Line: FortiSwitch Product... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $7,388.43

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: FSR424FPOE
        Barcode: 195875130980

        General Information

      • Manufacturer: Fortinet, Inc
      • Manufacturer Part Number: FSR-424F-POE
      • Manufacturer Website Address: http://www.fortinet.com
      • Brand Name: Fortinet
      • Product Line: FortiSwitch
      • Product Name: FortiSwitch Ethernet Switch
      • Marketing Information:

        Performance and Features Designed for Harsh Environments

        FortiSwitch™ Rugged switches deliver all of the enterprise features, performance, and security of the trusted FortiSwitch secure, simple, scalable Ethernet solution. Our rugged switches have added hardware reinforcement and software features that make them ideal for deployments in hostile environments, as well as operational technology (OT) industrial and control networks.

        Resilient, sturdy, and capable of withstanding intense temperature fluctuations, FortiSwitch Rugged ensures the integrity and performance of mission-critical networks in even the most challenging of deployments. When united with FortiGate Rugged Next-Generation Firewalls, IT and OT network administrators can deploy a converged Ethernet architecture that offers powerful cybersecurity protection engineered to survive in hostile environments.

        Security-Driven Networking Through FortiLink

        FortiLink is an innovative proprietary management protocol that allows FortiGates to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console.

        FortiLink integration enables centralized policy management and offers basic network access control (NAC) functionality, making both easy to implement and manage. This converged Security-Driven architecture, centered around the FortiGate running FortiOS, offers better protection and lower cost of ownership than multiple point products. Coupled with the FortiGuard Industrial Security Service, it ensures that critical networks receive real-time protection.


      • Product Type: Ethernet Switch
      • Technical Information

      • Features: Fanless
      • Interfaces/Ports

      • Total Number of Network Ports: 12
      • Modular: Yes
      • Port/Expansion Slot Details:
        • 12 x 2.5 Gigabit Ethernet Network
        • 12 x 2.5 Gigabit Ethernet Expansion Slot
        • 4 x 10 Gigabit Ethernet Expansion Slot
        • 2 x 40 Gigabit Ethernet Expansion Slot

      • Media & Performance

      • Media Type Supported:
        • Optical Fiber
        • Twisted Pair

      • Ethernet Technology:
        • 40 Gigabit Ethernet
        • 2.5 Gigabit Ethernet
        • 10 Gigabit Ethernet
        • Gigabit Ethernet

      • Network Technology:
        • 40GBase-X
        • 2.5GBase-X
        • 2.5GBase-T
        • 10GBase-X
        • 10/100/1000Base-T

      • I/O Expansions

      • Total Number of Expansion Slots: 18
      • Expansion Slot Type:
        • SFP+
        • QSFP+

      • Shared SFP Slot: No
      • Number of SFP+ Slots: 16
      • Network & Communication

      • Layer Supported: 3
      • Networking Standards:
        • IEEE 802.1x
        • IEEE 802.1D
        • IEEE 802.1Q
        • IEEE 802.1s
        • IEEE 802.1w
        • IEEE 802.1AX
        • IEEE 802.3ad
        • IEEE 802.3af
        • IEEE 802.3at
        • IEEE 802.3az
        • IEEE 802.1ab
        • IEEE 802.3
        • IEEE 802.3x
        • IEEE 802.3u
        • IEEE 802.3z
        • IEEE 802.3ab
        • IEEE 802.3ae
        • IEEE 802.3bz
        • IEEE 802.1ad
        • IEEE 802.1Qbb
        • IEEE 802.3ba
        • IEEE 802.3bj
        • IEEE 802.3bm
        • IEEE 802.1p
        • IEEE 1588v2

      • Management & Protocols

      • Manageable: Yes
      • Power Description

      • PoE (RJ-45) Port: Yes
      • PoE Budget: 421 W
      • Input Voltage:
        • 41 V DC
        • 125 V DC

      • Power Source: DC
      • Redundant Power Supply Supported: Yes
      • Power Consumption: 528.60 W
      • Physical Characteristics

      • Form Factor: Rack-mountable
      • Height: 17.3"
      • Width: 16.1"
      • Length: 1.7"
      • Weight (Approximate): 13.90 lb
      • Miscellaneous

      • Environmentally Friendly: Yes
      • Environmental Compliance:
        • Restriction of Hazardous Substances (RoHS)
        • Waste Electrical and Electronic Equipment Directive (WEEE)

      • Warranty

      • Limited Warranty: Lifetime
