Name: Fortinet FortiSwitch FS-224E Ethernet Switch - FS-224E
Brand: Fortinet, Inc
SKU: FS224ES
Price: 631.56 USD

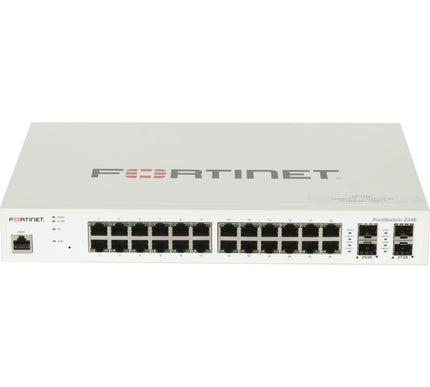

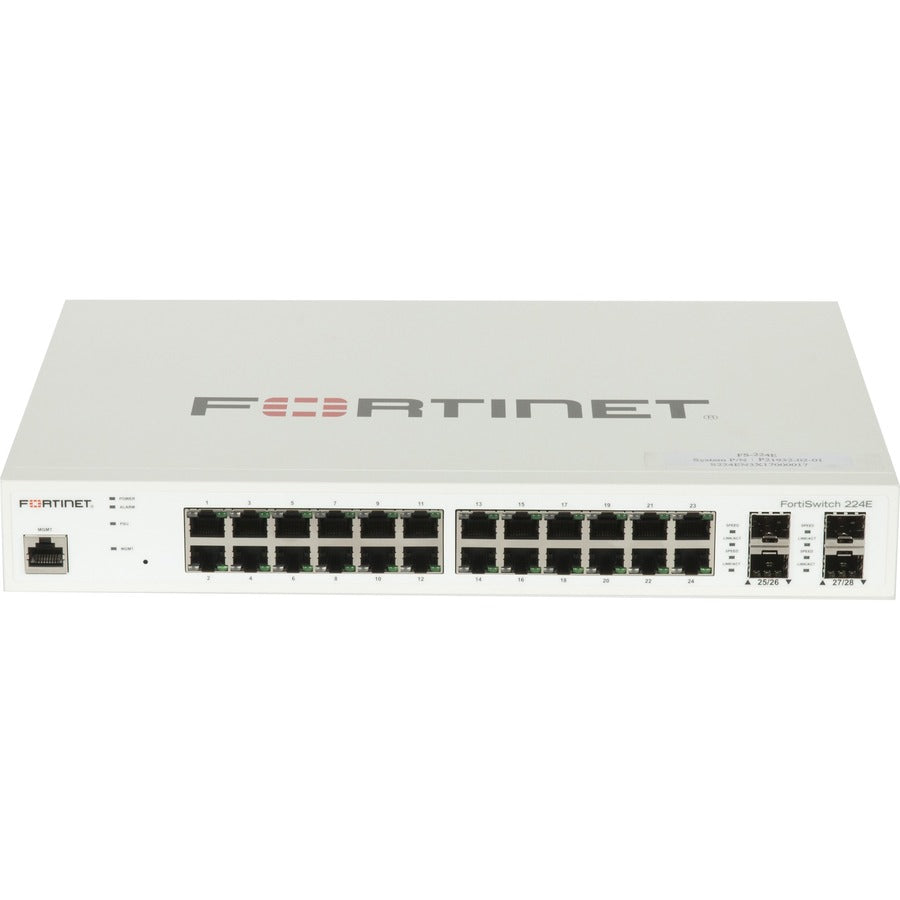

Fortinet FortiSwitch FS-224E Ethernet Switch - FS-224E

Product form

Fortinet, Inc

Fortinet FortiSwitch FS-224E Ethernet Switch - FS-224E

General Information Manufacturer: Fortinet, Inc Manufacturer Part Number: FS-224E Manufacturer Website Address: http://www.fortinet.com Brand Name: Fortinet Product Line: FortiSwitch Product... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$631.56

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: FS224ES
Barcode: 842382125861

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Fortinet, Inc

Manufacturer Part Number: FS-224E

Manufacturer Website Address: http://www.fortinet.com

Brand Name: Fortinet

Product Line: FortiSwitch

Product Series: 200

Product Model: FS-224E

Product Name: FortiSwitch FS-224E Ethernet Switch

Marketing Information: Security, Performance, and Manageability

The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threatconscious businesses of all sizes

Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single-pane-of-glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch and campus deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.

Security Fabric Integration through FortiLink

FortiLink is an innovative proprietary management protocol that allows our FortiGate Next-Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage.

HIGHLIGHTS | Entry | 100 Series

Entry level switch
8-48 GE ports, PoE+capable
Desktop to wiring closet
2-4 GE SFP uplink ports
4x 10GE SFP+ uplink ports

Mid-Range | 200 Series

Mid-level switch
24-48 GE ports, PoE+capable
Typical wiring closet switch
4 GE SFP uplink ports

Premium | 400 Series

Enterprise switch
24-48 GE and Multi-Gig port options, PoE+ and UPOE options
Larger wiring closet or high throughput requirements
4x 10 GE SFP+ uplink ports

Aggregation | 500 Series

Aggregation switch
24-48 GE ports, PoE+capable
Larger wiring closet or high throughput requirements
4x 10 GE SFP+ and 2x 40 GE QSFP uplink ports

DEPLOYMENT OVERVIEW

FortiSwitch is commonly managed and deployed through our FortiGate with FortiLink but can also be deployed and managed in non-FortiGate environments

FortiGate

Deployment and management via FortiLink
Security extended from NGFW
Most common Fortinet deployment model

Non-FortiGate

Standalone GUI or CLI
Manage at scale with FortiSwitch Manager
Industry standard, no Fortinet Security Fabric integration

Product Type: Ethernet Switch

Interfaces/Ports

Total Number of Network Ports: 24

Network (RJ-45): Yes

Uplink Port: Yes

Modular: Yes

Port/Expansion Slot Details:

24 x Gigabit Ethernet Network
4 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:

Optical Fiber
Twisted Pair

Ethernet Technology: Gigabit Ethernet

Network Technology:

1000Base-X
10/100/1000Base-T

I/O Expansions

Total Number of Expansion Slots: 4

Expansion Slot Type: SFP (mini-GBIC)

Number of SFP Slots: 4

Network & Communication

Layer Supported: 3

Networking Standards:

IEEE 802.1D
IEEE 802.1w
IEEE 802.1s
IEEE 802.1Q
IEEE 802.3ad
IEEE 802.1AX
IEEE 802.3x
IEEE 802.3
IEEE 802.3u
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ae
IEEE 802.3az
IEEE 802.3bz
IEEE 802.1ad
IEEE 802.3ba
IEEE 802.3bj
IEEE 802.3bm
IEEE 802.1p

Management & Protocols

Manageable: Yes

Power Description

PoE (RJ-45) Port: No

Power Source: Power Supply

Redundant Power Supply Supported: Yes

Power Consumption: 17.30 W

Physical Characteristics

Compatible Rack Unit: 1U

Form Factor: Rack-mountable

Height: 1.7"

Width: 13"

Depth: 9"

Weight (Approximate): 4.78 lb

Miscellaneous

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2

Warranty

Limited Warranty: Lifetime
