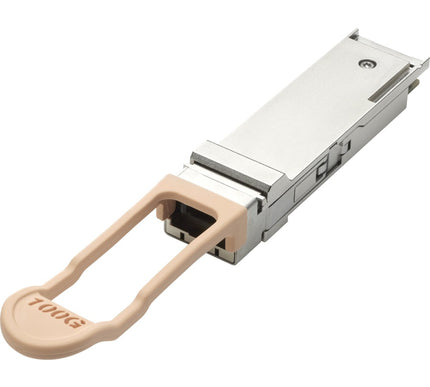

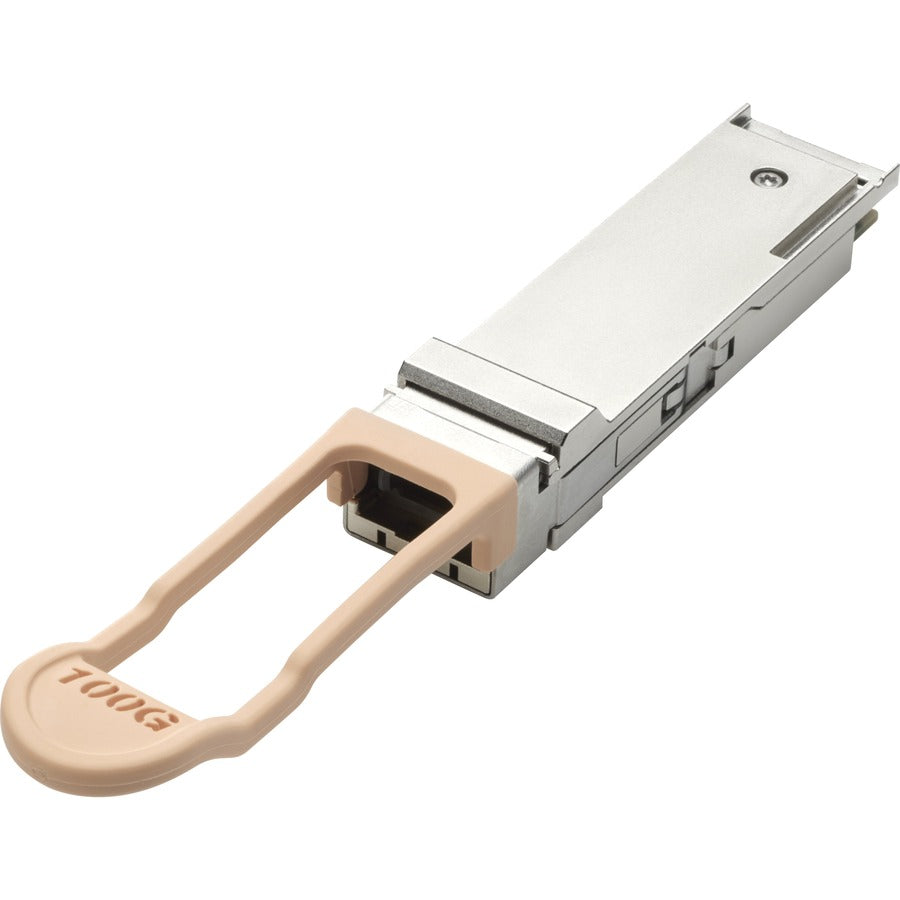

HPE 100Gb QSFP28 MPO SR4 100m Transceiver - 845966-B21

    Product form

    HPE 100Gb QSFP28 MPO SR4 100m Transceiver - 845966-B21

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: 845966-B21 Manufacturer Website Address: http://www.hpe.com Brand Name: HPE Product Name: 100Gb... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $3,317.31

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 4L0095
        Barcode: 0190017017907

        Size chart

        General Information

      • Manufacturer: Hewlett Packard Enterprise
      • Manufacturer Part Number: 845966-B21
      • Manufacturer Website Address: http://www.hpe.com
      • Brand Name: HPE
      • Product Name: 100Gb QSFP28 MPO SR4 100m Transceiver
      • Marketing Information: What if you could deploy 100 Gb transceiver connections with an overall reduction of cost per bit? The HPE 100Gb QSFP28 Transceiver is designed to meet the increasing demand of growing bandwidth in the data center. The 100 Gb performance allows a reduction of the port density and number of hardware components required to achieve this higher speed.

        With reduction of cost per bit, The HPE 100Gb QSFP28 Transceiver can significantly reduce Capex and Opex spending on interconnect connections. When the fiber optic cable is attached via a standard MPO connector, up to 100m connection can be conducted via multi-mode fibers.

        Features

        The HPE 100Gb QSFP28 MPO SR4 100m Transceiver has four optical lanes in each direction, allowing each to operate at 25 Gb.

        MPO connector for plugging in multi-mode fiber cables.

        Maximum link length of 70 m on OM3 and 100 m on OM4 multimode fiber at 100 Gb/s.

        Bit-error Rate (BER) lower than 10-15.

        3.3 V power supply.


      • Product Type: QSFP28

        • Technical Information

      • Application/Usage:
        • Optical Network
        • Data Networking

        • Interfaces/Ports

      • Total Number of Ports: 1
      • Connector Type: MPO
      • Interfaces/Ports Details: 1 x MPO 100GBase-SR4 Network

        • Media & Performance

      • Media Type Supported: Optical Fiber
      • Fiber Mode Supported: Multi-mode
      • Ethernet Technology: 100 Gigabit Ethernet
      • Network Technology: 100GBase-SR4

        • Physical Characteristics

      • Height: 0.3"
      • Width: 0.7"
      • Depth: 2.9"
      • Weight (Approximate): 0.08 lb

        • Miscellaneous

      • Environmentally Friendly: Yes
        •
