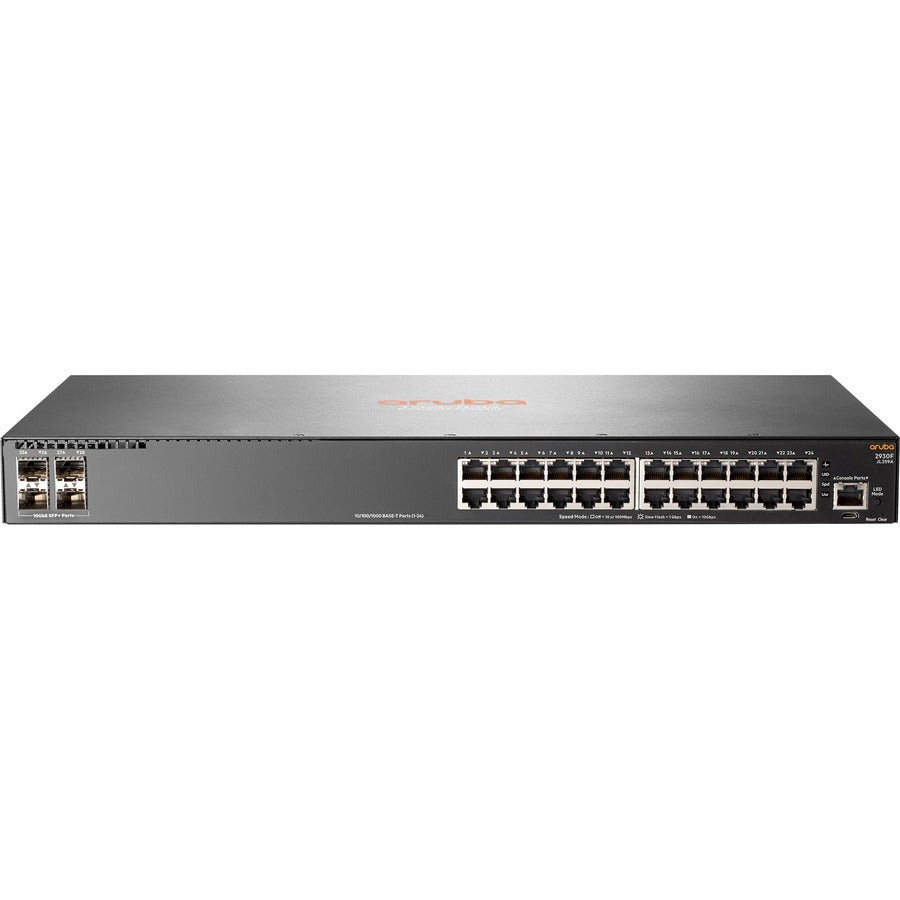

HPE 2930F 24G 4SFP Switch - JL259A#ACC

    Product form

    HPE 2930F 24G 4SFP Switch - JL259A#ACC

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: JL259A#ACC Manufacturer Website Address: http://www.hpe.com Brand Name: HPE Product Series: 2930F... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $961.45

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 8YB212
        Barcode: 0190017006062

        Size chart

        General Information

      • Manufacturer: Hewlett Packard Enterprise
      • Manufacturer Part Number: JL259A#ACC
      • Manufacturer Website Address: http://www.hpe.com
      • Brand Name: HPE
      • Product Series: 2930F
      • Product Model: 2930F 24G 4SFP
      • Product Name: 2930F 24G 4SFP Switch
      • Marketing Information: The Aruba 2930F Switch Series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave. With support from Aruba Central, you can quickly set up remote branch sites with little or no IT support. A powerful Aruba ProVision ASIC delivers performance and value with support of the latest SDN apps with future proof programmability for tomorrow's applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Tunnel Node, robust QoS, RIP routing, and IPv6 with no software licensing required.

        The Aruba 2930F Switch Series provides a convenient and costeffective access switch solution that can be quickly set up with Zero Touch Provisioning and built-in 10GbE uplinks. The robust Layer 3 feature set includes a limited lifetime warranty.

        FEATURES AND BENEFITS

        Software-defined networking ?
        • OpenFlow supports OpenFlow 1.0 and 1.3 specifications to enable SDN by allowing separation of the data (packet forwarding) and control (routing decision) paths
        Unified Wired and Wireless
        • Aruba ClearPass Policy Manager supports unified wired and wireless policies using Aruba ClearPass Policy Manager ?
        • Switch auto-configuration automatically configures switch for different settings such as VLAN, CoS, PoE max. power, and PoE priority when an Aruba access point is detected ?
        • User Role defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switch-based local user role or download from ClearPass
        • Tunnel Node provides a secure tunnel that transports network traffic on a per-port or per-user role basis to an Aruba Controller. In a per-user role Tunnel Node, users are authenticated by the ClearPass Policy Manager which directs traffic to be tunneled to an Aruba controller or switch locally
        • HTTP redirect function supports HPE Intelligent Management Center (IMC) bring your own device (BYOD) solution ?
        • Static IP visibility allows ClearPass to do accounting for clients with static IP address
        Quality of Service (QoS) ?
        • Traffic prioritization (IEEE 802.1p) Allows real-time traffic classification into eight priority levels mapped to eight queues ?
        • Layer 4 prioritization enables prioritization based on TCP/ UDP port numbers ?
        • Class of Service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ ?
        • Rate limiting sets per-port ingress enforced maximums and per-port, per-queue minimums ?
        • Large buffers provide graceful congestion management

      • Packaged Quantity: 1
      • Product Type: Layer 3 Switch

        • Interfaces/Ports

      • Total Number of Network Ports: 24
      • Uplink Port: Yes
      • Modular: Yes
      • Stack Port: No
      • Port/Expansion Slot Details:
        • 24 x Gigabit Ethernet Network
        • 4 x 10 Gigabit Ethernet Expansion Slot

        • Media & Performance

      • Media Type Supported:
        • Twisted Pair
        • Optical Fiber

      • Ethernet Technology:
        • Gigabit Ethernet
        • 10 Gigabit Ethernet

      • Network Technology:
        • 10/100/1000Base-T
        • 10GBase-X

        • I/O Expansions

      • Total Number of Expansion Slots: 4
      • Expansion Slot Type: SFP
      • Shared SFP Slot: No
      • Number of SFP Slots: 4

        • Network & Communication

      • Layer Supported: 3

        • Management & Protocols

      • Manageable: Yes

        • Power Description

      • Power Source: Power Supply
      • Redundant Power Supply Supported: No
      • Power Consumption: 29.30 W

        • Physical Characteristics

      • Compatible Rack Unit: 1U
      • Form Factor:
        • Desktop
        • Rack-mountable

      • Height: 1.7"
      • Width: 17.4"
      • Depth: 7.9"
      • Weight (Approximate): 5.31 lb
        •
