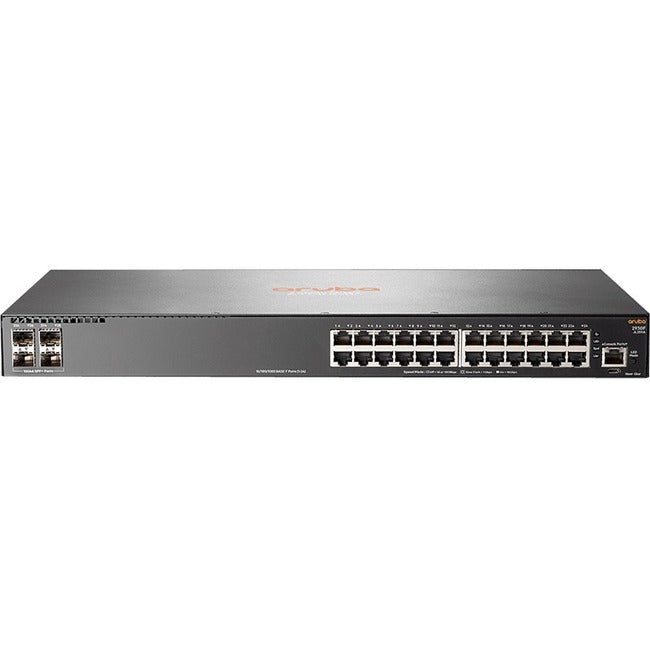

HPE 2930F 24G 4SFP Switch - JL259A#B2B

    Product form

    HPE 2930F 24G 4SFP Switch - JL259A#B2B

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: JL259A#B2B Manufacturer Website Address: http://www.hpe.com Brand Name: HPE Product Series: 2930F... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $961.45

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 02HQ25
        Barcode: 0190017006185

        Size chart

        General Information

      • Manufacturer: Hewlett Packard Enterprise
      • Manufacturer Part Number: JL259A#B2B
      • Manufacturer Website Address: http://www.hpe.com
      • Brand Name: HPE
      • Product Series: 2930F
      • Product Model: 2930F 24G 4SFP
      • Product Name: 2930F 24G 4SFP Switch
      • Marketing Information: The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power and are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloudbased Aruba Central.

        A powerful Aruba ProVision ASIC delivers performance , robust feature support and value with programmability for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required.

        The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust Layer 3 feature set includes a limited lifetime warranty.

        ENHANCED CAPABILITIES | Unified Wired and Wireless Support
        • Supports unified wired and wireless policies using Aruba ClearPass Policy Manager
        • Switch auto-configuration automatically configures switch for different settings such as VLAN, CoS, PoE max. power, and PoE priority when an Aruba access point is detected
        • User Role defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switch-based local user role or download from ClearPass
        • For improved network simplicity and security, Aruba Dynamic Segmentation automatically enforces user, device and application-aware policies on Aruba wired and wireless networks. Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end users alike
        • Dynamic Segmentation provides a secure tunnel that transports network traffic on a per-port or per-user role basis to an Aruba Controller. In a per-user role Tunnel Node, users are authenticated by the ClearPass PolicyDynamic Segmentation provides a secure tunnel that transports network traffic on a per-port or per-user role basis to an Aruba Controller. In a per-user role Tunnel Node, users are authenticated by the ClearPass Policy Manager which directs traffic to be tunneled to an Aruba controller or switch locally
        • Static IP visibility allows ClearPass to do accounting for clients with a static IP address
        Software-defined networks
        • Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting

      • Product Type: Layer 3 Switch

        • Interfaces/Ports

      • Total Number of Network Ports: 24
      • Network (RJ-45): Yes
      • Uplink Port: Yes
      • Modular: Yes
      • Port/Expansion Slot Details:
        • 24 x Gigabit Ethernet Network
        • 4 x Expansion Slot

        • Media & Performance

      • Media Type Supported:
        • Optical Fiber
        • Twisted Pair

      • Ethernet Technology: Gigabit Ethernet
      • Network Technology: 10/100/1000Base-T

        • I/O Expansions

      • Total Number of Expansion Slots: 4.0
      • Expansion Slot Type: SFP
      • Number of SFP Slots: 4

        • Network & Communication

      • Layer Supported: 3
      • Networking Standards:
        • IEEE 802.1p
        • IEEE 802.1ab
        • IEEE 802.1x
        • IEEE 802.1ad
        • IEEE 802.1s
        • IEEE 802.1D
        • IEEE 802.1w
        • IEEE 802.3az
        • IEEE 802.3
        • IEEE 802.3u
        • IEEE 802.1Q

        • Management & Protocols

      • Manageable: Yes

        • Power Description

      • Power Source: Power Supply
      • Power Consumption: 29.30 W

        • Physical Characteristics

      • Compatible Rack Unit: 1U
      • Form Factor: Rack-mountable
      • Height: 1.7"
      • Width: 17.4"
      • Depth: 7.9"
      • Weight (Approximate): 5.31 lb

        • Warranty

      • Limited Warranty: Lifetime
        •
