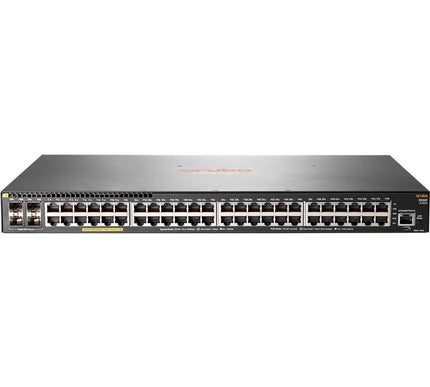

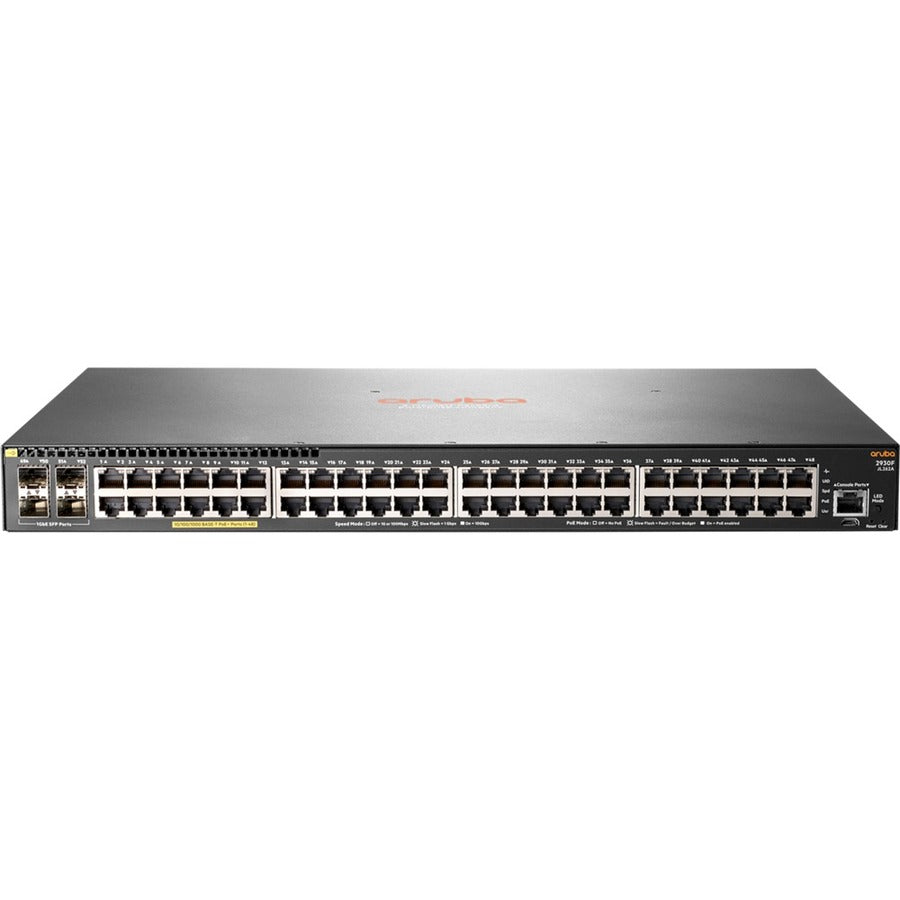

HPE 2930F 48G PoE+ 4SFP Switch - JL262A#ARE

    Product form

    HPE 2930F 48G PoE+ 4SFP Switch - JL262A#ARE

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: JL262A#ARE Manufacturer Website Address: http://www.hpe.com Brand Name: HPE Product Series: 2930F... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $2,246.67

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 02GP10
        Barcode: 0190017005911

        Size chart

        General Information

      • Manufacturer: Hewlett Packard Enterprise
      • Manufacturer Part Number: JL262A#ARE
      • Manufacturer Website Address: http://www.hpe.com
      • Brand Name: HPE
      • Product Series: 2930F
      • Product Model: 2930F 48G PoE+ 4SFP
      • Product Name: 2930F 48G PoE+ 4SFP Switch
      • Marketing Information: PRODUCT OVERVIEW

         The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power and are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloudbased Aruba Central.

        A powerful Aruba ProVision ASIC delivers performance , robust feature support and value with programmability for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required.

        The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust Layer 3 feature set includes a limited lifetime warranty.

        ENHANCED CAPABILITIES | Unified Wired and Wireless Support
        • Supports unified wired and wireless policies using Aruba ClearPass Policy Manager
        • Switch auto-configuration automatically configures switch for different settings such as VLAN, CoS, PoE max. power, and PoE priority when an Aruba access point is detected
        • User Role defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switch-based local user role or download from ClearPass
        • For improved network simplicity and security, Aruba Dynamic Segmentation automatically enforces user, device and application-aware policies on Aruba wired and wireless networks. Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end users alike
        • Dynamic Segmentation provides a secure tunnel that transports network traffic on a per-port or per-user role basis to an Aruba Controller. In a per-user role Tunnel Node, users are authenticated by the ClearPass Policy Manager which directs traffic to be tunneled to an Aruba controller or switch locally
        • Static IP visibility allows ClearPass to do accounting for clients with a static IP address
        Software-defined networks ?
        • Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting
        Quality of Service (QoS) ?
        • Traffic prioritization (IEEE 802.1p) for classification into eight priority levels mapped to eight queues
        • Layer 4 prioritization based on TCP/UDP port numbers

      • Product Type: Layer 3 Switch

        • Interfaces/Ports

      • Total Number of Network Ports: 48
      • Network (RJ-45): Yes
      • Uplink Port: Yes
      • Modular: Yes
      • Stack Port: Yes
      • Port/Expansion Slot Details:
        • 48 x Gigabit Ethernet PoE+
        • 4 x Expansion Slot

        • Media & Performance

      • Media Type Supported:
        • Optical Fiber
        • Twisted Pair

      • Ethernet Technology: Gigabit Ethernet
      • Network Technology: 10/100/1000Base-T

        • I/O Expansions

      • Total Number of Expansion Slots: 4
      • Expansion Slot Type: SFP
      • Number of SFP Slots: 4

        • Network & Communication

      • Layer Supported: 3
      • Networking Standards:
        • IEEE 802.3at
        • IEEE 802.3af
        • IEEE 802.1p
        • IEEE 802.1ab
        • IEEE 802.1x
        • IEEE 802.1ad
        • IEEE 802.1s
        • IEEE 802.1D
        • IEEE 802.1w
        • IEEE 802.3az
        • IEEE 802.3
        • IEEE 802.3u
        • IEEE 802.1Q

        • Management & Protocols

      • Manageable: Yes

        • Power Description

      • PoE (RJ-45) Port: Yes
      • PoE Budget: 370 W
      • Power Source: Power Supply
      • Power Consumption: 459 W

        • Physical Characteristics

      • Compatible Rack Unit: 1U
      • Form Factor: Rack-mountable
      • Height: 1.7"
      • Width: 17.4"
      • Depth: 12"
      • Weight (Approximate): 9.83 lb
        •
