The Aruba 5400R zl2 Switch Series delivers enterpriseclass resiliency with innovative flexibility and scalability for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. This modular series brings scalable aggregation with Virtual Switching Framework (VSF) stacking technology, hitless failover, and Fast Software Upgrade for 5400R VSF stacks. The advanced Layer 2 and 3 feature set includes OSPF, IPv6, IPv4 BGP, Dynamic Segmentation, robust QoS and policy-based routing with no software licensing required. Based on a powerful ProVision ASIC, the Aruba 5400R zl2 Switch Series has a high-speed, high-capacity architecture with 2 Tbps crossbar switching fabric with low 2.1µ latency, robust feature support, and value with flexible programmability for the latest applications. This series offers flexible connectivity options with 6- or 12-slot compact chassis, line rate 40GbE, up to 96 line rate Smart Rate multigigabit or 10GbE ports and up to 288 ports of PoE+ for powering access points, cameras and IoT devices. The 5400R is easy to deploy, use and manage using Aruba AirWave or Aruba Central. Aruba ClearPass offers centralized security and external captive portal support. The switches include a Limited Lifetime Warranty.

ENHANCED CAPABILITIES | Software-defined networks

• Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting

Unified Wired and wireless support

• Supports unified wired and wireless policies using Aruba ClearPass Policy Manager
• Switch auto-configuration automatically configures switch for different settings such as VLAN, CoS, PoE max power, and PoE priority when an Aruba access point is detected
• User Role defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switchbased local user role or download from ClearPass
• For improved network simplicity and security, Aruba Dynamic Segmentation automatically enforces user, device and application-aware policies on Aruba wired and wireless networks. Automated device profiling, rolebased access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike
• Dynamic Segmentation provides a secure tunnel that transports network traffic on a per-port or per-user role basis to an Aruba Controller. In a per-user role Tunnel Node, users are authenticated by the ClearPass Policy Manager which directs traffic to be tunneled to an Aruba controller or switch locally
• Static IP Visibility allows ClearPass to do accounting for clients with static IP addresses

Quality of Service (QoS)

• Advanced classifier-based QoS classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
• Traffic prioritization allows real-time traffic classification into eight priority levels mapped to eight queues
• Bandwidth shaping - Port-based rate limiting provides per-port ingress-/ egress-enforced increased bandwidth - Classifier-based rate limiting uses an access control list (ACL) to enforce increased bandwidth for ingress traffic on each port - Supports per-port, per-queue egress-based reduced bandwidth
• Class of Service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source

• Product Type: Layer 3 Switch


Interfaces/Ports

• Total Number of Network Ports: 44

• Network (RJ-45): Yes

• Modular: Yes

• Port/Expansion Slot Details:
  • 44 x Gigabit Ethernet Network
  • 4 x 10 Gigabit Ethernet Expansion Slot
  • 4 x Expansion Slot



Media & Performance

• Media Type Supported:
  • Twisted Pair
  • Optical Fiber


• Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet


• Network Technology:
  • 10/100Base-TX
  • 10/100/1000Base-T
  • 10GBase-X



I/O Expansions

• Total Number of Expansion Slots: 8

• Expansion Slot Type: SFP+

• Number of SFP+ Slots: 4


Network & Communication

• Layer Supported: 3

• Networking Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3at



Management & Protocols

• Manageable: Yes


Power Description

• Input Voltage:
  • 120 V AC
  • 230 V AC


• Power Source:
  • Power Supply
  • AC


• Redundant Power Supply Supported: Yes

• Number of Power Supplies Supported: 2


Physical Characteristics

• Compatible Rack Unit: 4U

• Form Factor:
  • Rack-mountable
  • Cabinet Mount
  • Surface Mount


• Height: 6.9"

• Width: 17.5"

• Depth: 17.8"

• Weight (Approximate): 28.11 lb


Miscellaneous

• Package Contents:

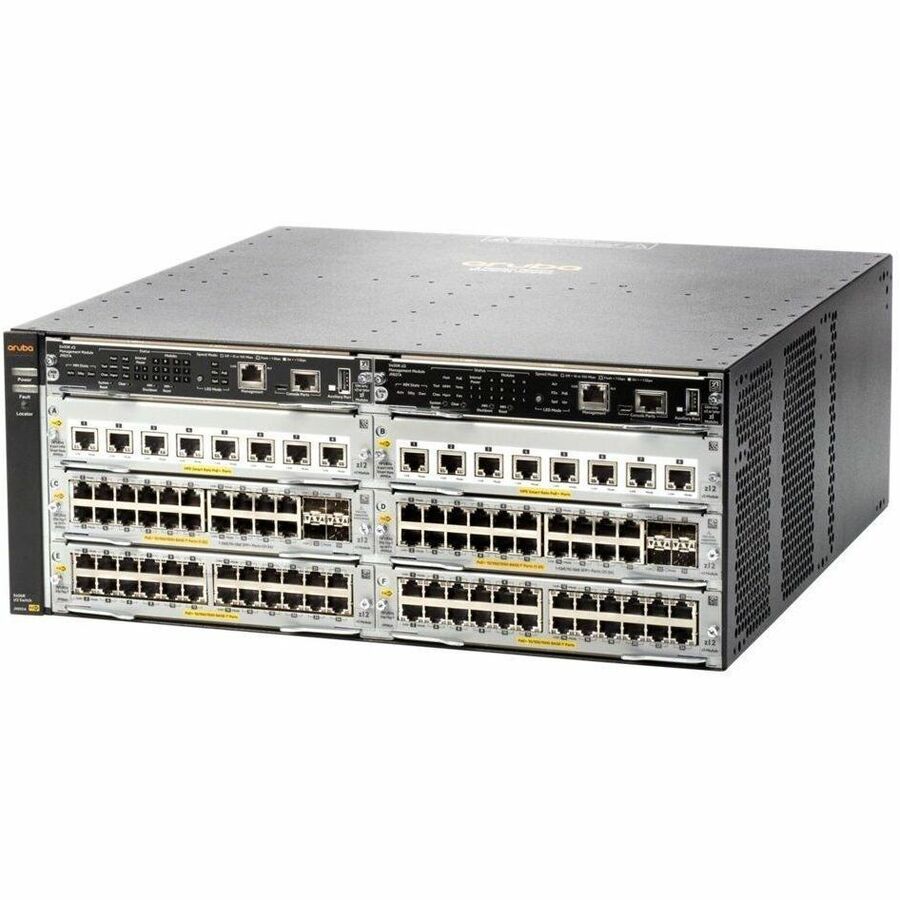

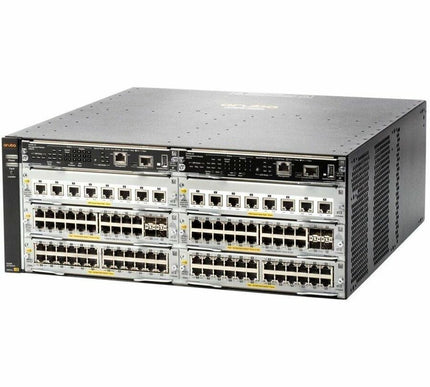

  • 5406R 44GT PoE+/4SFP+ (No PSU) v3 zl2 Switch
  • 1 x Aruba 5400R zl2 Management Module (J9827A)
  • 1 x Aruba 5406R zl2 Switch Fan Tray (J9831A)
  • 1 x Aruba 24-port 10/100/1000BASE-T PoE+ MACsec v3 zl2 Module (J9986A)
  • 1 x Aruba 20-port 10/100/1000BASE-T PoE+/4-port 1G/10GbE SFP+ MACsec v3 zl2 Module (J9990A)
  • Mounting Hardware


• Country of Origin: United States

• TAA Compliant: Yes


Warranty

• Limited Warranty: Lifetime
