Name: HPE 6100 Ethernet Switch - JL679A#ABB
Brand: Hewlett Packard Enterprise
SKU: 9CX331
Price: 1094.15 USD

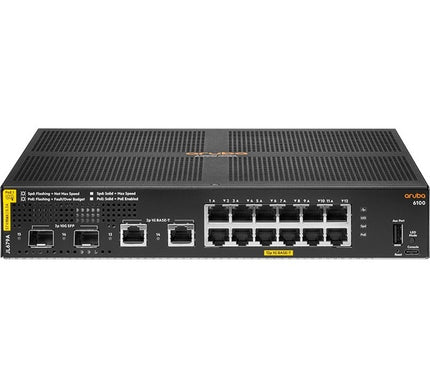

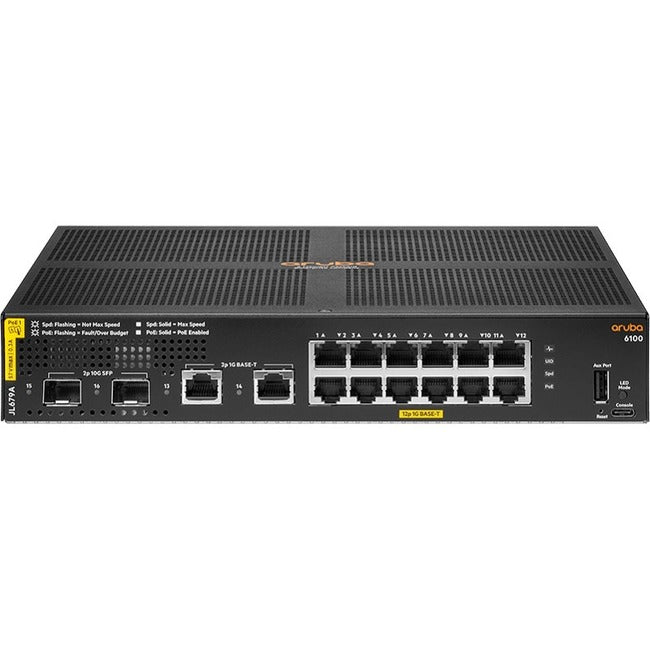

HPE 6100 Ethernet Switch - JL679A#ABB

Product form

Hewlett Packard Enterprise

HPE 6100 Ethernet Switch - JL679A#ABB

General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: JL679A#ABB Manufacturer Website Address: http://www.hpe.com Brand Name: HPE Product Series: 6100... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$1,094.15

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: 9CX331
Barcode: 0190017348964

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Hewlett Packard Enterprise

Manufacturer Part Number: JL679A#ABB

Manufacturer Website Address: http://www.hpe.com

Brand Name: HPE

Product Series: 6100

Product Model: 6100 12G CL4 2SFP+

Product Name: 6100 Ethernet Switch

Marketing Information: PRODUCT OVERVIEW

The Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks. Optimized for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications.

The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes a compact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements.

PRODUCT DIFFERENTIATORS

AOS-CX - a modern software system

The Aruba CX 6100 Switch Series is based on AOS-CX, a modern, database-driven operating system that is built on a modular Linux architecture. This operating system provides the following unique capabilities:

Easy access to all network configuration state information
REST APIs for fine-grained programmability of network tasks
A micro-services architecture that enables full integration with other workflow systems and services
All software processes communicate with the database rather than each other, ensuring near real-time state and resiliency

updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment and audit features. Capabilities include:

Centralized configuration with validation for consistency and compliance
Time savings via simultaneous viewing and editing of multiple configurations
Customized validation tests for corporate compliance and network design
Automated large-scale configuration deployment without programming

Note: A separate software license is required to use Aruba NetEdit.

Mobility and IoT performance

The Aruba CX 6100 Switch Series uses internally developed Aruba ASICs that provide very low latency, increased packet buffering, and adaptive power consumption. Each switch includes the following:

Up to 176 Gbps in non-blocking bandwidth and up to 98.6 Mpps for forwarding
Selectable queue configurations that allow for increased performance by defining a number of queues and associated memory buffering to best meet the requirements of network application

Simplify adds, moves and changes

Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves and changes with colorless ports using local user roles and local-MAC-Authentication (LMA). Instead of statically pre-configuring access ports to VLANs and maintaining the switch port to VLAN mapping, colorless ports can automatically apply the role/policy required.

Enterprise-class access connectivity

To address branch office and small enterprise environments, the CX 6100 family includes five fixed 1U models. Each switch includes built-in high speed uplinks that auto-negotiate from 1GbE to 10GbE to deliver non-blocking performance. Additional highlights:

1U models support 24 and 48 access ports of IEEE 802.3 1GbE with four built-in 1GbE/10GbE uplink SFP+ ports. The 24 and 48 port PoE models support up to 370W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port

Product Type: Ethernet Switch

Interfaces/Ports

Total Number of Network Ports: 12

Uplink Port: Yes

Modular: Yes

Port/Expansion Slot Details:

12 x Gigabit Ethernet PoE
2 x 10 Gigabit Ethernet Expansion Slot
2 x Gigabit Ethernet Uplink

Media & Performance

Media Type Supported:

Optical Fiber
Twisted Pair

Ethernet Technology:

Gigabit Ethernet
10 Gigabit Ethernet

Network Technology:

10/100/1000Base-T
10GBase-X

I/O Expansions

Total Number of Expansion Slots: 2

Expansion Slot Type: SFP (mini-GBIC)

Number of SFP Slots: 2

Network & Communication

Layer Supported: 2

Management & Protocols

Manageable: Yes

Power Description

PoE (RJ-45) Port: Yes

PoE Budget: 139 W

Power Source: Power Supply

Number of Power Supplies Installed: 1

Power Consumption: 21.90 W

Physical Characteristics

Compatible Rack Unit: 1U

Form Factor:

Wall Mountable
Rack-mountable

Height: 1.7"

Width: 10"

Depth: 10"

Weight (Approximate): 6.13 lb
