HPE 9012 Gateway - R1B33A

    Product form

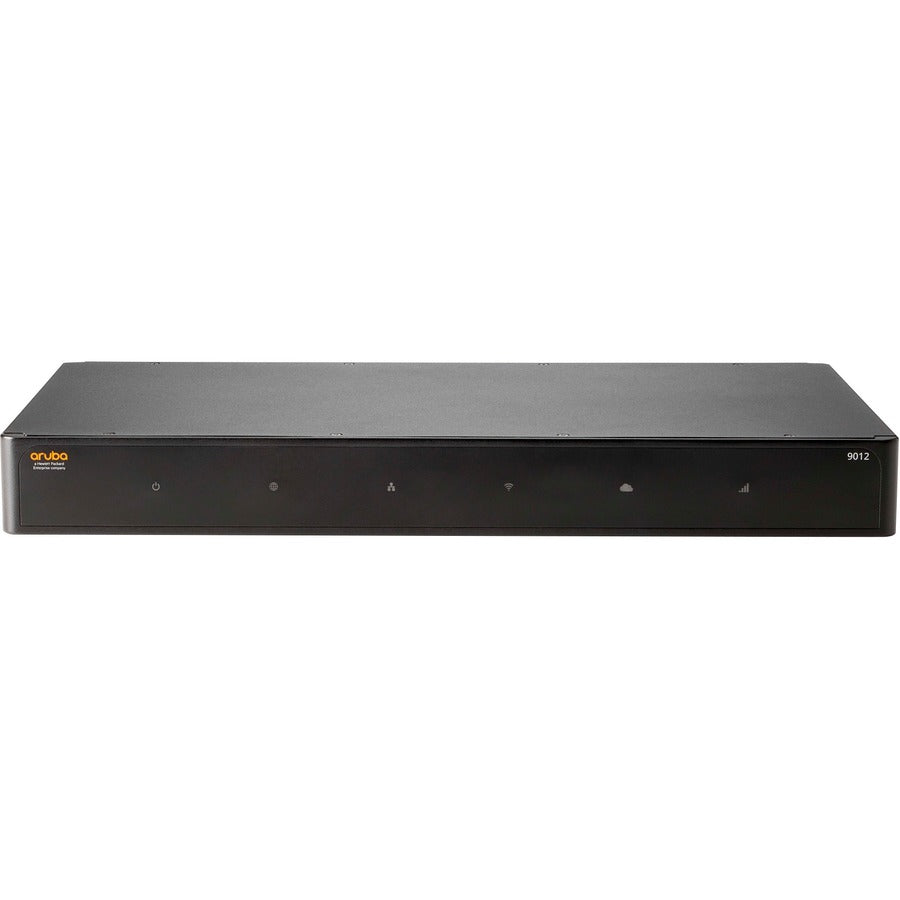

    HPE 9012 Gateway - R1B33A

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: R1B33A Manufacturer Website Address: http://www.hpe.com Brand Name: HPE Product Series: 9000... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $2,814.96

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 9MB526
        Barcode: 0190017325095

        Size chart

        General Information

      • Manufacturer: Hewlett Packard Enterprise
      • Manufacturer Part Number: R1B33A
      • Manufacturer Website Address: http://www.hpe.com
      • Brand Name: HPE
      • Product Series: 9000
      • Product Model: 9012
      • Product Name: 9012 Gateway
      • Marketing Information: Aruba 9000 Series Gateways provide high-performance networking, SD-WAN and security functionality in compact and cost-effective form factors. Ideally suited for branch and small campus networks, the 9000 Series Gateways serve a key role within Aruba's SD-Branch solution, which unifies WLAN, LAN, SD-WAN and security for distributed enterprises.

        The 9000 Series can be easily configured and managed using Aruba Central, a cloud-based network operations, assurance and security platform. Onsite deployment is accomplished with a simple mobile installer application.

        HIGH PERFORMANCE AND RELIABILITY

        For distributed enterprises with increasing performance and bandwidth needs, the 9000 Series is designed with scale and flexibility, and equipped with plenty of horsepower at a competitive price-point.

        The 9000 Series provides connectivity for up to 2,048 users or client devices at up to 6 Gbps of firewall throughput. These capabilities are up to 80 times the client density and 10 times the maximum throughput of typical SD-WAN appliances.

        For enhanced resiliency and high availability, the multiple 9000 Series can be clustered together at each branch.

        IOT AND INTEGRATION READY

        The 9000 Series includes flexible connectivity options:
        • 4xGbE - 9004 / 9004-LTE
        • 12xGbE (6xPoE+) - 9012
        • USB 3.0 ports
        • IoT Radio that supports BLE technologies
        • Integrated LTE connectivity - 9004-LTE
        The gateway also uses integrated device profiling to improve client visibility, and works with Aruba Central, ClearPass Policy Manager or ClearPass Device Insight to provide advanced user, device and IoT policy management and insights.

        SD-WAN DEPLOYMENT

        For organizations that are now managing multiple WAN connections, 9000 Series Gateways can be connected to Aruba's SD-WAN fabric right out of the box. SD-WAN is a rich WAN management solution that is used to simplify management of traffic entering and exiting branch sites. Role-based intrusion detection and prevention (IDS/IPS), Dynamic Segmentation, and stateful firewall deliver integrated security requirements. Please refer to the SD-WAN datasheet for more information.

        BRANCH AND CAMPUS DEPLOYMENT

        9000 Series Gateways can also be re-purposed as Mobility Controllers to provide WLAN and LAN services such as Dynamic Segmentation, stateful firewall and Live Upgrades. In this mode, the 9000 Series cannot simultaneously be used for SD-WAN.

        INTEGRATED LTE
        The 9004-LTE is a Gateway with an integrated LTE module that can use high speed LTE as a dedicated or redundant WAN uplink. The LTE operations are managed via Aruba Central.
      • Product Type: Router

        • Interfaces/Ports

      • Total Number of Ports: 12
      • Management Port: Yes

        • Network & Communication

      • Ethernet Technology: Gigabit Ethernet
      • Network Technology: 10/100/1000Base-T

        • Power Description

      • PoE (RJ-45) Port: Yes

        • Physical Characteristics

      • Form Factor: Rack-mountable
      • Height: 1.7"
      • Width: 15.6"
      • Depth: 10.2"
      • Weight (Approximate): 7.54 lb
        •
