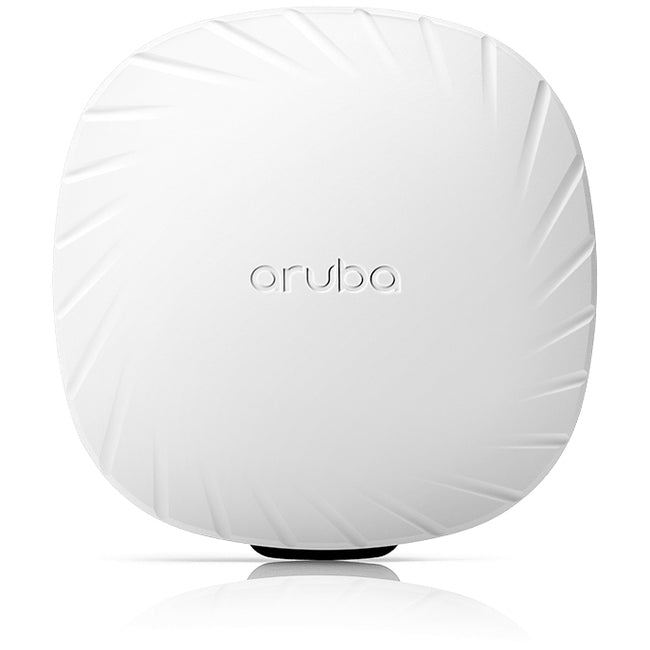

HPE AP-503 Dual Band IEEE 802.11ax 1.49 Gbit/s Wireless Access Point - Indoor - S1E83A

    Product form

    HPE AP-503 Dual Band IEEE 802.11ax 1.49 Gbit/s Wireless Access Point - Indoor - S1E83A

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: S1E83A Manufacturer Website Address: http://www.hpe.com Brand Name: HPE Product Series: 503... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $4,940.74

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 13BV77
        Barcode: 0190017661247

        Size chart

        General Information

      • Manufacturer: Hewlett Packard Enterprise
      • Manufacturer Part Number: S1E83A
      • Manufacturer Website Address: http://www.hpe.com
      • Brand Name: HPE
      • Product Series: 503
      • Product Model: AP-503
      • Product Name: AP-503 Wireless Access Point
      • Marketing Information: The Aruba 503 Series Access Points (APs) provide costeffective, high-performance connectivity for any organization experiencing device growth due to increased mobility, the shift to cloud, or IoT. With a maximum real-world aggregate data rate of 1.49 Gbps (HE80/HE20), the 503 Series deliver the speed and reliability needed for medium-density venues and workplaces such as schools, midsize offices, and retailers. Each 503 Series AP provides connectivity for a maximum of 256 associated clients per radio (512 in total).

        OPTIMIZED USER EXPERIENCE

        The 503 Series APs are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.

        Features include orthogonal frequency-division multiple access (OFDMA) and cellular optimization. With up to 2 spatial streams (2SS) and 80MHz channel bandwidth (HE80), the 503 Series provides the next generation of wireless capabilities for cost-conscious deployments.

        Advantages of OFDMA

        This capability allows Aruba's APs to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that multiple clients are sharing a channel and not competing for airtime and bandwidth.

        Aruba Air Slice™ for application assurance

        Aruba Air Slice delivers application assurance in order to optimize the user experience. By allocating radio resources such as time, frequency, and spatial stream to specific traffic types, Aruba APs can provide SLA-grade performance to client devices whether they support Wi-Fi 6 or prior standards.

        Aruba Air Slice relies on Aruba's Policy Enforcement Firewall and Deep Packet Inspection (DPI) to identify user roles and applications so that bandwidth can be dynamically allocated to ensure performance. Air Slice is available for APs running controller-less mode (Instant) and with Aruba Central; controller-based APs will be supported in a future software release.

        Wi-Fi 6 aware client optimization

        Aruba's patented AI-powered ClientMatch technology eliminates sticky client issues by placing Wi-Fi 6 capable devices on the best available AP. Session metrics are used to steer mobile devices to the best AP based on available bandwidth, types of applications being used, and traffic type - even as users roam.

        Resource management with AirMatch

        To better support growth in client device density and in data volumes, AirMatch uses machine learning techniques that provide automated radio frequency optimization.
      • Packaged Quantity: 10
      • Product Type: Wireless Access Point

        • Technical Information

      • Wireless LAN Standard: IEEE 802.11ax
      • Network Band: Dual Band
      • Frequency Band:
        • 2.40 GHz
        • 5 GHz

      • Indoor/Outdoor: Indoor
      • Wireless Transmission Speed: 1.49 Gbit/s
      • MIMO Technology: Yes
      • Beamforming Technology: Yes
      • Data Encryption: Yes
      • Encryption Standard:
        • WPA
        • WPA2
        • WPA3-ENT
        • WPA3-SAE
        • WPA3-Personal

        • Interfaces/Ports

      • Ethernet Technology: Gigabit Ethernet
      • Number of Network (RJ-45) Ports: 1
      • PoE PD Port: Yes
      • USB: Yes
      • USB Standard: USB 2.0

        • Power Description

      • Power Consumption: 10.90 W

        • Physical Characteristics

      • Form Factor:
        • Ceiling Mountable
        • Rail-mountable

      • Antenna Form Factor: Internal
      • Height: 1.4"
      • Width: 5.7"
      • Depth: 5.7"
      • Weight (Approximate): 8.99 oz
        •
