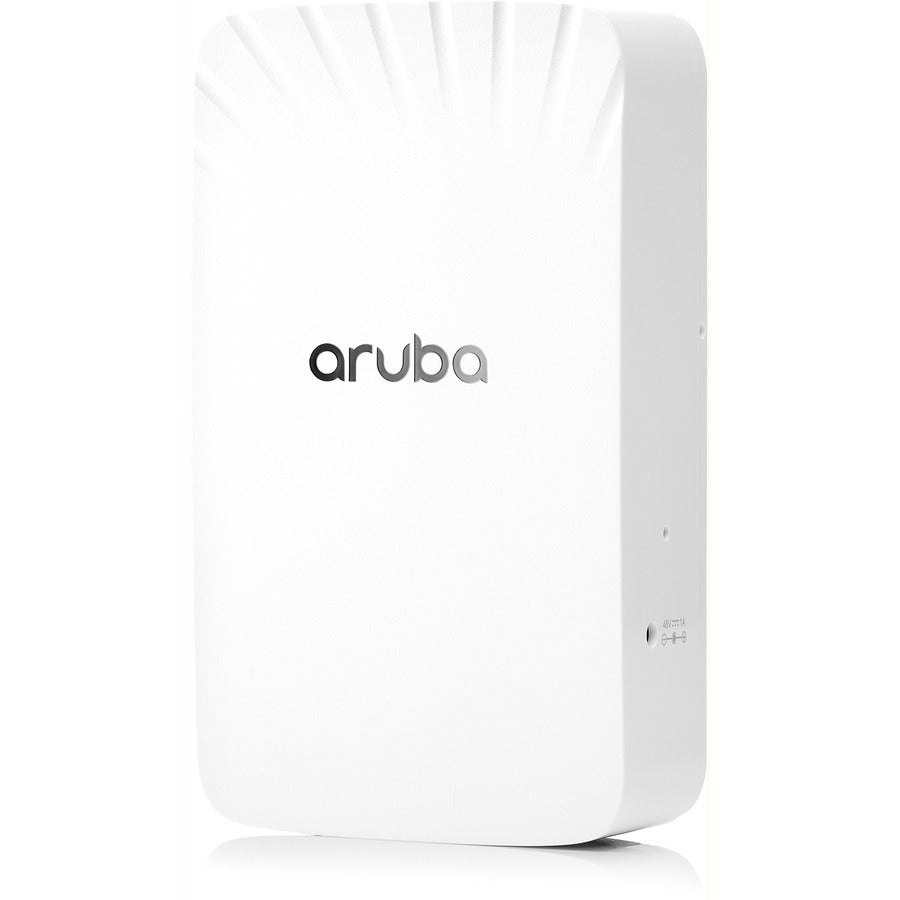

HPE AP-505H 802.11ax 1.50 Gbit/s Wireless Access Point - R3V46A

    Product form

    HPE AP-505H 802.11ax 1.50 Gbit/s Wireless Access Point - R3V46A

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: R3V46A Manufacturer Website Address: http://www.hpe.com Brand Name: HPE Product Series: 500H... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $784.78

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 7QK236
        Barcode: 0190017395708

        Size chart

        General Information

      • Manufacturer: Hewlett Packard Enterprise
      • Manufacturer Part Number: R3V46A
      • Manufacturer Website Address: http://www.hpe.com
      • Brand Name: HPE
      • Product Series: 500H
      • Product Model: AP-505H
      • Product Name: AP-505H Wireless Access Point
      • Marketing Information: High performance and cost-effective Wi-Fi 6 (802.11ax) for hospitality, branch, and teleworker deployments

        These economical Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing mobile, cloud and IoT requirements. With a wireless aggregate data rate of up to 1.5 Gbps and gigabit local wired ports, they deliver the range of connectivity options needed for venues such as hotels, residence halls, and remote offices alike.

        INCREDIBLE EFFICIENCY

        The 500H Series APs are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.

        Features include Orthogonal frequency-division multiple access (OFDMA), multi-user MIMO and cellular optimization. With up to 4 spatial streams (4SS) and 80MHz channel bandwidth, the 500H Series provides groundbreaking wireless capabilities for budget-conscious deployments. Read the Multi-User 802.11ax white paper for further information.

        Advantages of OFDMA

        This capability allows Aruba's APs to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that clients are sharing a channel and not competing for airtime and bandwidth.

        Aruba Air Slice for Extended OFDMA Assurance

        APs in controller-less mode (Instant) can provide SLA-grade performance by allocating RUs to specific traffic types. By combining Aruba's Policy Enforcement Firewall (PEF) and Layer 7 deep packet inspection (DPI) to identify user roles and applications, the APs will dynamically allocate the bandwidth needed. Non-Wi-Fi 6 clients can also benefit. Air Slice for APs in controller mode will be supported in a future software release. Learn more in the link to Air Slice tech brief that was staged for March 10 announcement.

        Multi-user MIMO (MU-MIMO)

        Similar to downlink MU-MIMO in Wi-Fi 5 (802.11ac Wave 2), the 500H Series can simultaneously connect clients using downlink - and now - uplink spatial streams. The added benefit is the ability to multiply the number of clients that can now send traffic, thus optimizing client-to-AP spatial stream diversity.

        Wi-Fi 6 and MU-MIMO aware client optimization

        Aruba's patented AI-powered ClientMatch technology eliminates sticky client issues by placing Wi-Fi 6 capable devices on the best available AP. Session metrics are used to steer mobile devices to the best AP based on available bandwidth, types of applications being used and traffic type - even as users roam.
      • Product Type: Wireless Access Point

        • Technical Information

      • Wireless LAN Standard: 802.11ax
      • Bluetooth Standard: Bluetooth 5
      • Frequency Band:
        • 2.40 GHz
        • 5 GHz

      • Total Number of Antennas: 2
      • Number of Internal Antennas: 2
      • Wireless Transmission Speed: 1.50 Gbit/s
      • MIMO Technology: Yes
      • Beamforming Technology: Yes

        • Interfaces/Ports

      • Ethernet Technology:
        • 2.5 Gigabit Ethernet
        • Gigabit Ethernet
        • Fast Ethernet

      • Number of Network (RJ-45) Ports: 5
      • PoE (RJ-45) Port: Yes
      • PoE PD Port: Yes
      • USB: Yes
      • Management Port: Yes

        • Physical Characteristics

      • Form Factor:
        • Wall Mountable
        • Desktop

      • Height: 5.9"
      • Width: 3.4"
      • Weight (Approximate): 12.70 oz
        •
