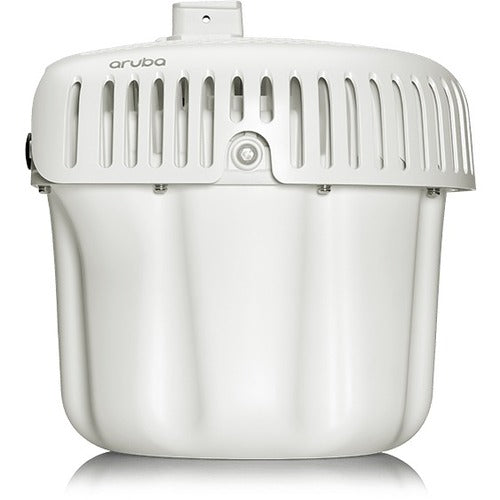

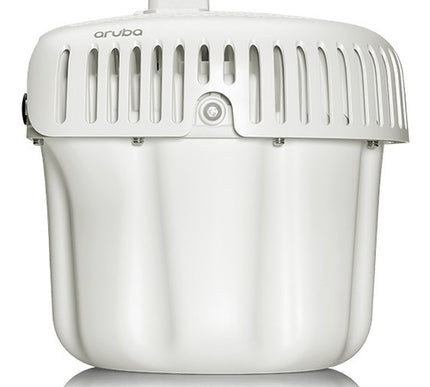

HPE AP-585 Dual Band IEEE 802.11ax 2.97 Gbit/s Wireless Access Point - Outdoor - TAA Compliant - R7T23A

    Product form

    HPE AP-585 Dual Band IEEE 802.11ax 2.97 Gbit/s Wireless Access Point - Outdoor - TAA Compliant - R7T23A

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: R7T23A Manufacturer Website Address: http://www.hpe.com Brand Name: HPE Product Series: 580... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $3,927.45

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 06NB51
        Barcode: 0190017514543

        Size chart

        General Information

      • Manufacturer: Hewlett Packard Enterprise
      • Manufacturer Part Number: R7T23A
      • Manufacturer Website Address: http://www.hpe.com
      • Brand Name: HPE
      • Product Series: 580
      • Product Model: AP-585
      • Product Name: AP-585 Wireless Access Point
      • Marketing Information: Purpose-built to survive in the harshest outdoor environments, Aruba 580 Series Outdoor Access Points are designed for the highest levels of performance and greater deployment flexibility - all backed by a limited lifetime warranty. Aruba 580 Series APs deliver the speed and reliability needed for large enterprise and Industrial IoT deployments with high power Bluetooth and 802.15.4/Zigbee radios and flexible power options.

        DESIGNED FOR OUTDOOR FLEXIBILITY

        Weatherproofed, and temperature hardened to survive in the harshest outdoor environments, Aruba 580 Series APs withstand exposure to extreme high and low temperatures, persistent moisture, and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial surge protection and are IP66/67 certified.

        To support high-performance connectivity in dense mobile and IoT outdoor environments, Aruba 580 Series APs deliver maximum aggregate on air data rates of 2.97 Gbps and include 5 Gbps Smart Rate Ethernet ports. In addition, dual redundant power/port failover and support for AC ensure high availability with uninterrupted performance.

        WI-FI 6 BENEFITS

        The 580 Series APs are based on the Wi-Fi 6/802.11ax standard, which means that Wi-Fi 6 features such as Uplink and Downlink Orthogonal Frequency Division Multiple Access (OFDMA), BSS coloring, Downlink Multi-User MIMO (MU-MIMO), and cellular co-location are fully supported making it more efficient and secure.

        Advantages of OFDMA

        This capability allows Aruba's APs to handle multiple 802.11ax capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that clients are sharing a channel and not competing for airtime and bandwidth.

        Bi-directional Multi-User MIMO (MU-MIMO)

        Similar to downlink MU-MIMO in Wi-Fi 5 (802.11ac Wave 2), Aruba 580 Series APs can simultaneously connect clients using downlink - and now - uplink spatial streams. The added benefit is the ability to multiply the number of clients that can now send traffic, thus optimizing client-to-AP spatial stream diversity.

        WI-FI OPTIMIZATION | Client optimization

        Aruba's patented AI-powered ClientMatch technology eliminates sticky client issues by steering a client to the AP where it receives the best radio signal. ClientMatch also dynamically steers traffic to load balance APs to improve the user experience.
      • Product Type: Wireless Access Point

        • Technical Information

      • Wireless LAN Standard: IEEE 802.11ax
      • Bluetooth Standard: Bluetooth 5
      • Network Band: Dual Band
      • Frequency Band:
        • 2.40 GHz
        • 5 GHz

      • Total Number of Antennas: 4
      • Number of Internal Antennas: 4
      • Indoor/Outdoor: Outdoor
      • Wireless Transmission Speed: 2.97 Gbit/s
      • MIMO Technology: Yes
      • Beamforming Technology: Yes
      • Data Encryption: Yes
      • Encryption Standard:
        • WPA3
        • WPA2-MPSK

      • Ingress Protection (IP) Rating: IP67

        • Interfaces/Ports

      • Ethernet Technology:
        • 5 Gigabit Ethernet
        • 10 Gigabit Ethernet
        • Gigabit Ethernet

      • Number of Network (RJ-45) Ports: 2
      • PoE (RJ-45) Port: Yes
      • PoE PD Port: Yes
      • USB: Yes
      • Management Port: Yes

        • Power Description

      • Power Consumption: 71 W

        • Physical Characteristics

      • Form Factor:
        • Wall Mountable
        • Pole-mountable
        • Ceiling Mountable

      • Antenna Form Factor: Internal
      • Height: 12.6"
      • Width: 12.8"
      • Depth: 12.3"
      • Weight (Approximate): 11.55 lb

        • Miscellaneous

      • TAA Compliant: Yes
        •
