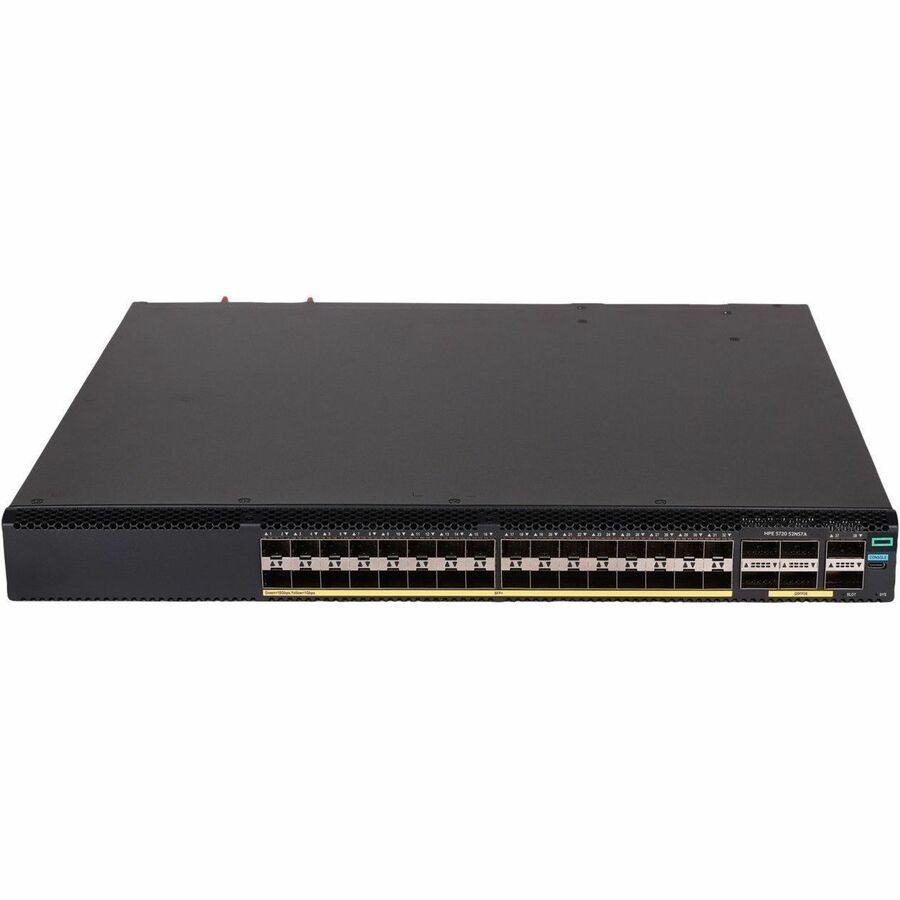

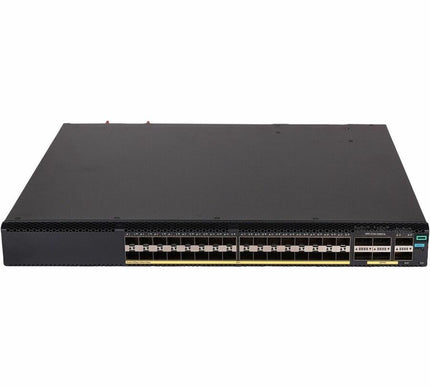

HPE Networking Comware Switch Series 5720 is designed to cater to diverse customer needs. This cost-effective access switch offers hybrid SFP+ and 10GBASE-T options, along with multigigabit support on 10GBASE-T ports, allowing scalability from 10GbE SFP+ to 100G QSFP28.

These data center leaf / access layer switches come with MACsec support and 10GBASE-T additional modules. Features such as distributed resilient network interconnect (DRNI) and HPE Intelligent Resilient Fabric (IRF) enhance network resiliency while redundant pluggable power supplies provide a dynamic and highly available network.

Moreover, these switches support HPE Intelligent Management Center (IMC), which delivers a consistent network manageability experience. Streamline network management processes for greater efficiency through centralized configuration, compliance, policy management, monitoring, and troubleshooting.

• Cost-effective access switch with hybrid SFP+ and 10GBASE-T with multigigabit options on 10GBASE-T port-5G, 2.5G, 1G.
• DRNI combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability.
• Virtual Extensible LAN (VXLAN) with lite Ethernet VPN (EVPN) allows greater flexibility, better performance with wirespeed, enhanced security, and better scalability.
• Hardware-based MACsec enable end-to-end encrypted security.
• The Intelligent Resilient Fabric (IRF) technology enabling greater resilience and scalability with IRF stacking.
• VXLAN and EVPN enable isolation and greater scalability of L2/L3 overlay services and multicast.

• 32 x 1/10 Gigabit Ethernet SFP+ Expansion Slot
• 6 x 100 Gigabit Ethernet QSFP28 Expansion Slot

• Gigabit Ethernet
• 10 Gigabit Ethernet
• 100 Gigabit Ethernet

• 1000Base-X
• 10GBase-X
• 100GBase-X

• SFP+
• QSFP28

• IEEE 802.1x
• IEEE 802.1ab
• IEEE 802.1ag
• IEEE 802.1D
• IEEE 802.1Qau
• IEEE 802.1Qaz
• IEEE 802.1Qbb
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.3ad
• IEEE 802.3ah

• 120 V AC
• 230 V AC

• AC
• Power Supply

• Black
• Silver
• Yellow
