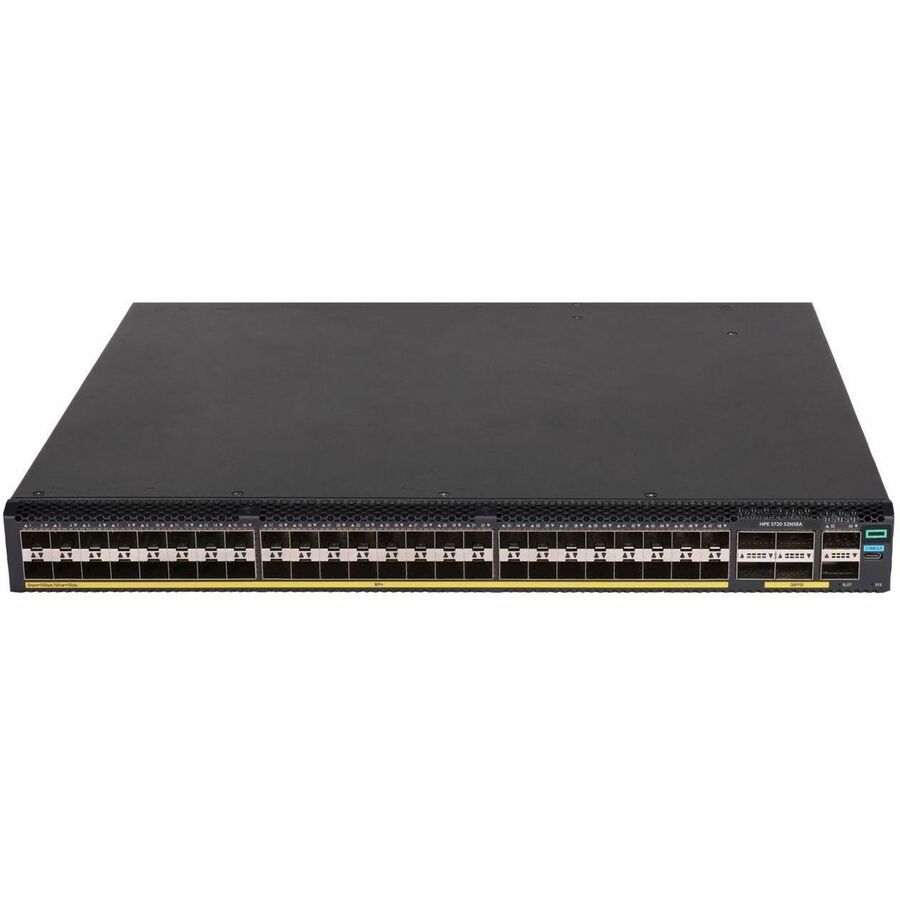

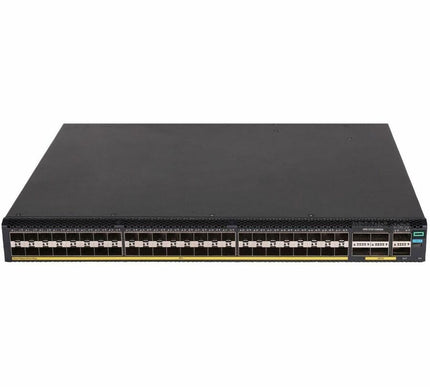

HPE Networking Comware Switch Series 5720 is designed to cater to diverse customer needs. This cost-effective access switch offers hybrid SFP+ and 10GBASE-T options, along with multigigabit support on 10GBASE-T ports, allowing scalability from 10GbE SFP+ to 100G QSFP28.

These data center leaf / access layer switches come with MACsec support and 10GBASE-T additional modules. Features such as distributed resilient network interconnect (DRNI) and HPE Intelligent Resilient Fabric (IRF) enhance network resiliency while redundant pluggable power supplies provide a dynamic and highly available network.

Moreover, these switches support HPE Intelligent Management Center (IMC), which delivers a consistent network manageability experience. Streamline network management processes for greater efficiency through centralized configuration, compliance, policy management, monitoring, and troubleshooting.

Features

Maximize your HPE Networking Comware Switch Series 5720

What's New

1. Cost-effective access switch with hybrid SFP+ and 10GBASE-T with multigigabit options on 10GBASE-T port-5G, 2.5G, 1G.
2. DRNI combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability.
3. Virtual Extensible LAN (VXLAN) with lite Ethernet VPN (EVPN) allows greater flexibility, better performance with wirespeed, enhanced security, and better scalability.
4. Hardware-based MACsec enable end-to-end encrypted security.
5. The Intelligent Resilient Fabric (IRF) technology enabling greater resilience and scalability with IRF stacking.
6. VXLAN and EVPN enable isolation and greater scalability of L2/L3 overlay services and multicast.

Multigigabit High-density Switches

• ?The HPE Networking Comware Switch Series 5720 provides medium and large enterprise networks with 24/40 port 1G/2.5G/5G/10GBASE-T and 32/48 port 10G SFP+ connectivity options, thereby resulting in high density and flexibility.
• The switch series delivers up to 1001.7 Mpps of packet forwarding rate and up to 2240 Gbps of switching capacity.
• It supports jumbo frames with a frame size of up to 9216 bytes, improving the performance of large data transfers.
• It supports equal-cost multi-path that enables multiple equal-cost links in a routing environment to increase link redundancy and scale bandwidth.

• In-Service Software Upgrade (ISSU)
• Virtual Extensible LAN (VXLAN)

• 32 x 10 Gigabit Ethernet Expansion Slot
• 6 x 100 Gigabit Ethernet Expansion Slot
• 1 x Expansion Slot

• Gigabit Ethernet
• 10 Gigabit Ethernet
• 100 Gigabit Ethernet

• 1000Base-X
• 10GBase-X
• 100GBase-X

• SFP+
• QSFP28

• 120 V AC
• 230 V AC
• -48 V DC
• -60 V DC

• Power Supply
• AC
• DC
