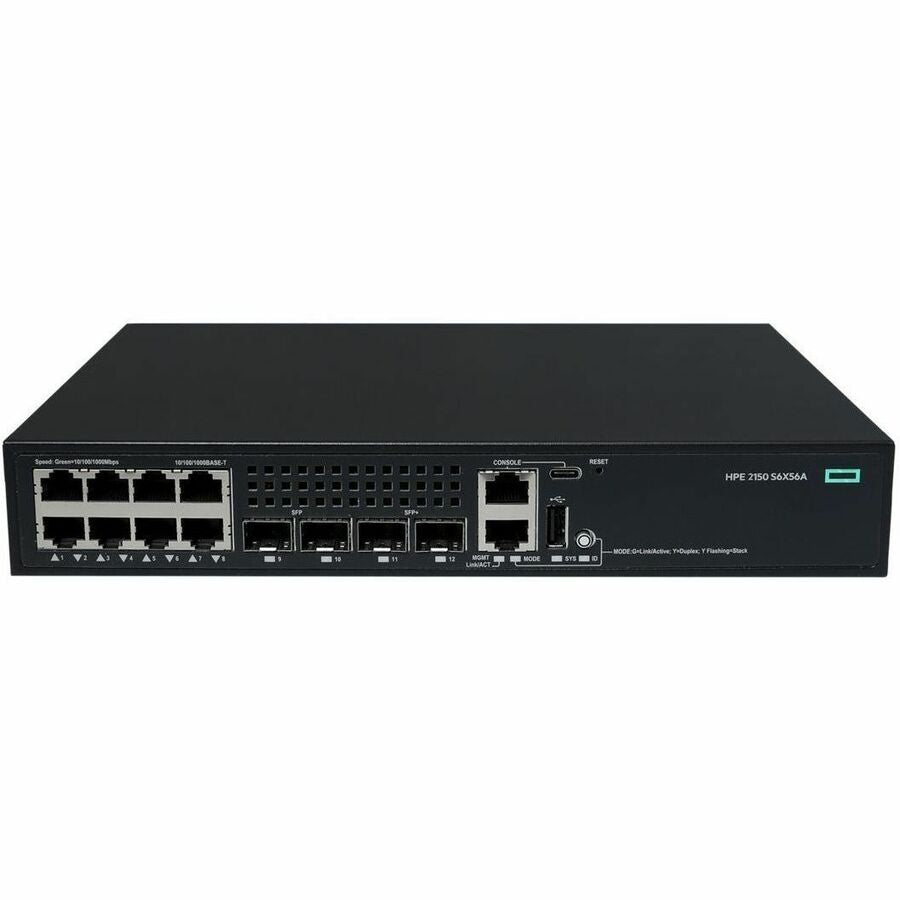

The HPE Networking CW 2150 Switch Series delivers fully managed, stackable Layer 3 switching for small and midsize businesses and branch offices. Designed to balance affordability and performance, the series provides simple management and secure, reliable connectivity to support growing SMB networks.

Maximize your HPE Networking CW 2150 Switch Series | What's New

• Enterprise-class, fully managed, stackable Layer 3 switch series with 8-, 16-, 24-, and 48-port Class 4 PoE and non-PoE models, four 1G/10G SFP+ uplinks, and up to 770W of Class 4 PoE
• Up to 176 Gbps in nonblocking bandwidth, 130 Mpps in forwarding, and up to 9-switch IRF stack
• Flexible connectivity options with four 1G/10G SFP+ uplinks in the 16-, 24-, and 48-port models and two 1G SFP and two 1G/10G SFP+ uplinks in the 8-port model
• Advanced Quality of Service (QoS), IPv6, and dynamic L3 protocols (RIP and OSPF) for reliable connectivity
• Fanless design in the 8-port and 24-/48-port non-PoE models. Supports IEEE 802.3az standard for Energy Efficient Ethernet (EEE)
• Managed by Web GUI, CLI, Smart Management Center (SmartMC) web dashboard, HPE Intelligent Management Center (IMC), SNMP, and REST APIs |

Enterprise-class secure and reliable connectivity

• The HPE Networking CW 2150 Switch Series delivers up to 176 Gbps of nonblocking bandwidth and up to 131 Mpps forwarding, with nine unit IRF stacking for resilient availability and link redundancy.
• The CW 2150 series offers flexible connectivity with four 1G/10G SFP+ uplinks on the 16, 24, and 48 port models, and two 1G SFP plus two 1G/10G SFP+ uplinks on the 8 port model. The 24 port model adds four SFP combo ports.
• Advanced Quality of Service (QoS), Internet Protocol version 6 (IPv6) and dynamic L3 protocols (RIP and OSPF) for reliable connectivity
• It supports IEEE 802.3az Energy Efficient Ethernet and offers a fanless design on the 8-, 24-, and 48-port non-PoE models.
• Built-in 6 kV service-port surge protection helps reduce the risk of power strikes in demanding environments such as construction sites.

Powerful PoE capabilities

• The HPE Networking CW 2150 Switch Series provides 125 W, 248 W, 405 W, 390 W, and 770 W Class 4 PoE across the 8-, 16-, 24-, and 48-port models.
• It supports advanced PoE features, including fast PoE that delivers power within seconds of system startup.

• Quality of Service (QoS)
• Energy Efficient
• Surge Protection
• Access Control List
• Virtual LAN (VLAN)
• Fanless

• 8 x Gigabit Ethernet Network Port
• 2 x Gigabit Ethernet Expansion Slot
• 2 x 10 Gigabit Ethernet Expansion Slot
• 1 x RJ-45 Console Port
• 1 x USB Type-C Console Port
• 1 x USB Port
• 1 x Out of Band Management Port

• Twisted Pair
• Optical Fiber

• Gigabit Ethernet
• 10 Gigabit Ethernet

• 10/100/1000Base-T
• 1000Base-X
• 10GBase-X

• SFP+
• SFP

• IEEE 802.3az
• IEEE 802.1x

• 120 V AC
• 230 V AC

• AC
• Power Supply
