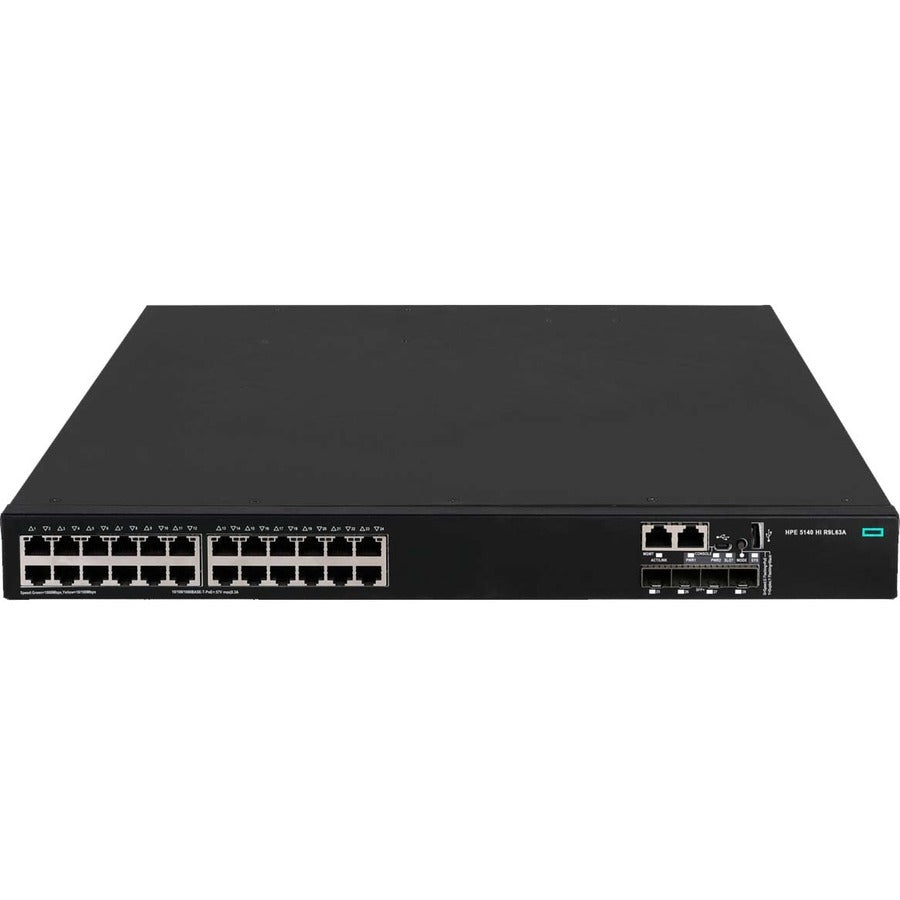

Name: HPE FlexNetwork 5140 24G PoE+ 4SFP+ HI Switch - R9L63A
Brand: Hewlett Packard Enterprise
SKU: 06NB88
Price: 6116.32 USD

HPE FlexNetwork 5140 24G PoE+ 4SFP+ HI Switch - R9L63A

Product form

Hewlett Packard Enterprise

HPE FlexNetwork 5140 24G PoE+ 4SFP+ HI Switch - R9L63A

General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: R9L63A Manufacturer Website Address: http://www.hpe.com Brand Name: HPE Product Line: FlexNetwork... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$6,116.32

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: 06NB88
Barcode: 0190017587882

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Hewlett Packard Enterprise

Manufacturer Part Number: R9L63A

Manufacturer Website Address: http://www.hpe.com

Brand Name: HPE

Product Line: FlexNetwork

Product Series: 5140 HI

Product Model: 5140 24G PoE+ 4SFP+ HI

Product Name: FlexNetwork 5140 24G PoE+ 4SFP+ HI Switch

Marketing Information: The HPE FlexNetwork 5140 HI Switch series delivers high availability and scalability at the access layer of medium and large enterprise campus networks.

These switches offer high speed connectivity and flexibility with 10GbE uplinks, and combo ports. Support for add-on modules increases capacity or provides additional features. It is a highly cost-effective switch with abundant features such as DRNI and IRF for improved resiliency, QoS features for better reliability, iNQA for real time network health performance and capacity visibility, hardware based MACsec for end-to-end encrypted security and dual redundant power supplies with Energy Efficient Ethernet for improved power saving.

This Switch Series also includes Smart MC at no additional cost and combined with Intelligent Management Center (IMC), provides embedded network management, enhanced network visibility and automation.

FEATURES AND BENEFITS | Highly Resilient and Scalable Access Layer Switches

The HPE FlexNetwork 5140 HI Switch series uses Intelligent Resilient Framework (IRF) to support virtualization of up to nine physical switches into one logical device for simpler, flatter, more agile and resilient networks.
Supports 10GbE uplinks, static and RIP routing, PoE+, ACLs, IPv6 for improved and cost-effective network performance.
DRNI, enables link aggregation from multiple switches to implement device-level link backup for node redundancy. DRNI also provides access to the aggregate bandwidth and simplifies network topology by virtualizing two physical devices into a logical device.
iNQA helps in measuring network packet loss performance, forward, reverse, and two-way packet loss, including lost number of messages and bytes, message loss and byte loss rate.
Dual, redundant, hot-swappable power supplies maintain a dynamic and highly available network switch delivering up to 1440 Watts of PoE+ for powered cameras, phones, and wireless Access Points.

Robust Quality of Service (QoS)

The HPE FlexNetwork 5140 HI Switch series supports advanced classifier based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; it applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or the entire switch.
Provides extensive traffic prioritization with strict priority (SP) queuing, weighted round robin (WRR) and SP+WRR.
Broadcast control and limitation of broadcast traffic rate can reduce unwanted network traffic and preserve more bandwidth for critical data.

Product Type: Ethernet Switch

Interfaces/Ports

Total Number of Network Ports: 24

Network (RJ-45): Yes

Modular: Yes

Port/Expansion Slot Details:

24 x Gigabit Ethernet PoE+
4 x 10 Gigabit Ethernet Expansion Slot
1 x Expansion Slot

Media & Performance

Media Type Supported:

Optical Fiber
Twisted Pair

Ethernet Technology:

Gigabit Ethernet
10 Gigabit Ethernet

Network Technology:

10/100/1000Base-T
10GBase-X

I/O Expansions

Total Number of Expansion Slots: 5.0

Expansion Slot Type: SFP+

Number of SFP+ Slots: 4

Network & Communication

Layer Supported: 2

Networking Standards:

IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.1ad
IEEE 802.1ak
IEEE 802.1ae
IEEE 802.1AX
IEEE 802.1D
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1v
IEEE 802.1w
IEEE 802.1x
IEEE 802.3ad
IEEE 802.3ae
IEEE 802.3az
IEEE 802.3i
IEEE 802.3z
IEEE 802.3x
IEEE 802.3at
IEEE 802.3af

Management & Protocols

Manageable: Yes

Power Description

PoE (RJ-45) Port: Yes

PoE Budget: 720 W

Input Voltage:

120 V AC
230 V AC
48 V DC
60 V DC

Power Source: Power Supply

Number of Power Supplies Supported: 2

Power Consumption: 928 W

Physical Characteristics

Compatible Rack Unit: 1U

Form Factor:

Rack-mountable
Cabinet Mount

Height: 1.7"

Width: 17.3"

Depth: 18.1"

Weight (Approximate): 20.28 lb
