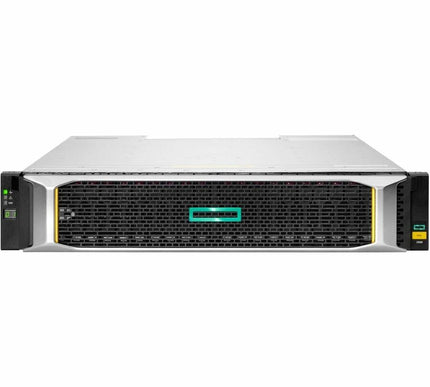

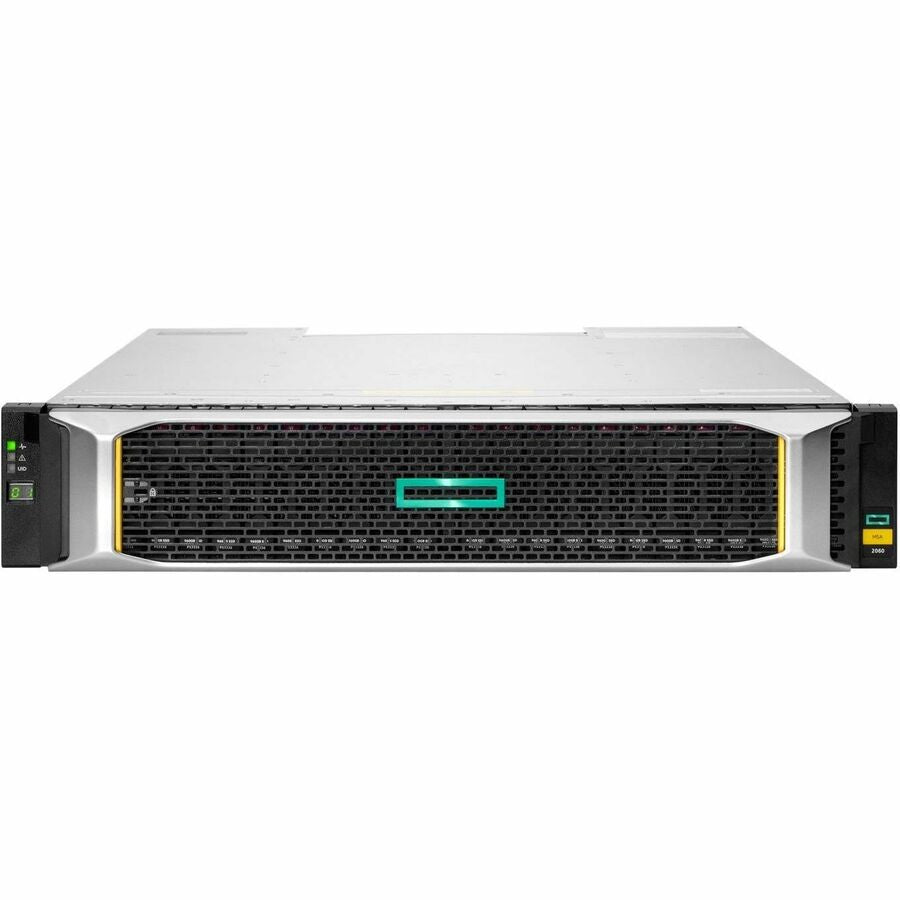

HPE MSA 2060 SAN Storage System - P84172-B25

    Product form

    HPE MSA 2060 SAN Storage System - P84172-B25

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: P84172-B25 Manufacturer Website Address: http://www.hpe.com Brand Name: HPE Product Model: MSA... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $16,469.00

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: P84172B25
        Barcode: 000000000000

        General Information

      • Manufacturer: Hewlett Packard Enterprise
      • Manufacturer Part Number: P84172-B25
      • Manufacturer Website Address: http://www.hpe.com
      • Brand Name: HPE
      • Product Model: MSA 2060
      • Product Name: MSA 2060 SAN Storage System
      • Marketing Information:

        Looking for seriously simple and affordable flash storage?

        The HPE MSA 2062 Storage is a flash-enabled system designed for affordable application acceleration for small and remote office deployments. Don't let the low cost fool you. The HPE MSA 2062 gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced storage array. Starting with 3.84 TB of embedded flash capacity, you can scale the system from there with any combination of solid state drives (SSD), high-performance Enterprise SAS HDDs, or lowercost Midline SAS HDDs. Capable of delivering up to 395,000 IOPS, the HPE MSA 2062 saves you up to 26% with an all-inclusive software suite and 3.84 TB of flash capacity included. It's a seriously simple and affordable flash storage to help you achieve high performance yet meet challenging budgets.


      • Product Type: SAN Storage System
      • Storage

      • Number of Hard Drives Supported: 24
      • Number of Hard Drives Installed: 12
      • Total Hard Drive Capacity Supported: 1812.48 TB
      • Total Hard Drive Capacity Installed: 28.80 TB
      • Hard Drive Interface: 12Gb/s SAS
      • Hard Drive Configuration: 12 x 2.4TB
      • Number of Solid State Drive Supported: 24
      • Number of Solid State Drive Installed: 2
      • Total Solid State Drive Capacity Installed: 3.84 TB
      • Solid State Drive Configuration: 2 x 1.92TB
      • Clustering Supported: Yes
      • Network & Communication

      • Ethernet Technology: 10 Gigabit Ethernet
      • I/O Expansions

      • Number of Total Expansion Bays: 24
      • Number of 2.5" Bays: 24
      • Controllers

      • Number of Controllers: 2
      • Controller Type: 12Gb/s SAS
      • RAID Supported: Yes
      • RAID Levels: 0, 1, 5, 6, 10
      • Interfaces/Ports

      • Drive Interface: 12Gb/s SAS
      • Host Interface: 12Gb/s SAS
      • Number of SAS Ports (External): 4
      • Network (RJ-45): Yes
      • Number of Network (RJ-45) Ports: 2
      • Software

      • Operating System Supported:
        • Windows Server 2022
        • Windows Server 2019
        • Windows Server 2016
        • Red Hat Enterprise Linux 8
        • SuSE Linux Enterprise Server 15

      • Management & Protocols

      • Protocols:
        • SNMP
        • SSH
        • SMTP
        • FTP
        • SFTP
        • HTTP
        • HTTPS
        • Telnet

      • Power Description

      • Number of Power Supplies Installed: 2
      • Plug/Connector Type: C14
      • Maximum Power Supply Wattage: 580 W
      • Redundant Power Supply: Yes
      • Physical Characteristics

      • Height: 3.5"
      • Width: 17.5"
      • Depth: 20"
      • Form Factor: Rack-mountable
      • Rack Height: 2U
      • Weight (Approximate): 11.02 lb
      • Miscellaneous

      • Energy Star: Yes
