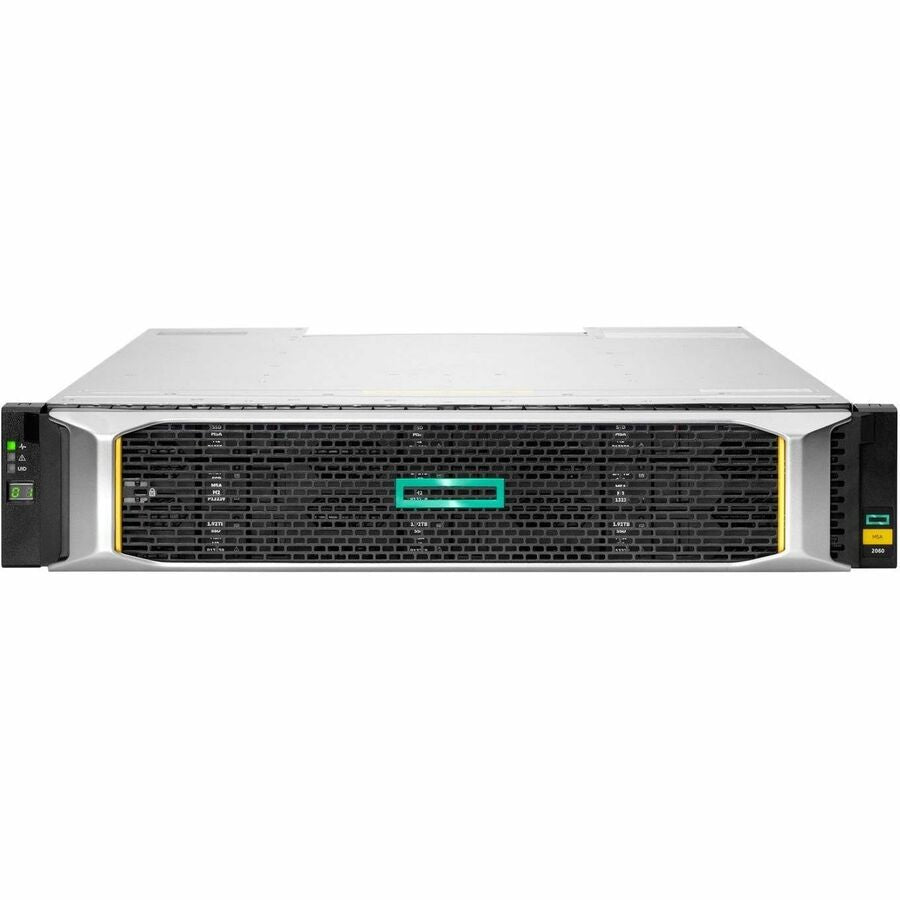

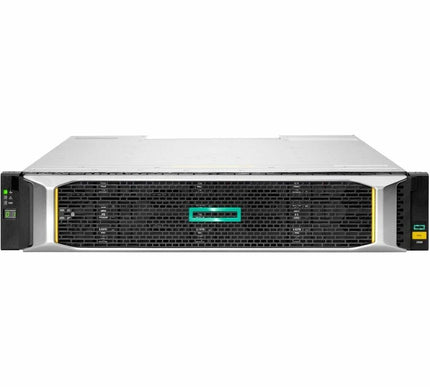

HPE MSA 2060 SAN Storage System - P84173-B25

    Product form

    HPE MSA 2060 SAN Storage System - P84173-B25

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: P84173-B25 Manufacturer Website Address: http://www.hpe.com Brand Name: HPE Product Model: MSA... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $10,983.37

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: P84173B25
        Barcode: 000000000000

        Size chart

        General Information

      • Manufacturer: Hewlett Packard Enterprise
      • Manufacturer Part Number: P84173-B25
      • Manufacturer Website Address: http://www.hpe.com
      • Brand Name: HPE
      • Product Model: MSA 2060
      • Product Name: MSA 2060 SAN Storage System
      • Marketing Information:

        Is your company looking for easy-to-use, affordable, high-performance shared storage?

        The HPE MSA 2060 Storage is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don't let the low cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new HPE MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads.


      • Product Type: SAN Storage System

        • Storage

      • Number of Hard Drives Supported: 12
      • Number of Hard Drives Installed: 7
      • Total Hard Drive Capacity Installed: 56 TB
      • Hard Drive Interface: 12Gb/s SAS
      • Hard Drive Configuration: 7 x 8TB
      • Number of Solid State Drive Supported: 12
      • Clustering Supported: Yes

        • Network & Communication

      • Ethernet Technology: 10 Gigabit Ethernet

        • I/O Expansions

      • Number of Total Expansion Bays: 12
      • Number of 3.5" Bays: 12

        • Controllers

      • Number of Controllers: 2
      • Controller Type:
        • 12Gb/s SAS
        • 16Gb/s Fibre Channel

      • RAID Supported: Yes
      • RAID Levels: 0, 1, 5, 6, 10

        • Interfaces/Ports

      • Drive Interface: 12Gb/s SAS
      • Host Interface: Fibre Channel
      • Network (RJ-45): Yes
      • Number of Network (RJ-45) Ports: 2
      • Fibre Channel: Yes

        • Software

      • Operating System Supported:
        • Windows Server 2022
        • Windows Server 2019
        • Windows Server 2016
        • Red Hat Enterprise Linux 8
        • SuSE Linux Enterprise Server 15

        • Management & Protocols

      • Protocols:
        • SNMP
        • SSH
        • SMTP
        • FTP
        • SFTP
        • HTTP
        • HTTPS
        • Telnet
        • FCP

        • Power Description

      • Number of Power Supplies Installed: 2
      • Plug/Connector Type: C14
      • Maximum Power Supply Wattage: 580 W
      • Redundant Power Supply: Yes

        • Physical Characteristics

      • Height: 3.5"
      • Width: 17.5"
      • Depth: 20"
      • Form Factor: Rack-mountable
      • Rack Height: 2U
      • Weight (Approximate): 11.02 lb

        • Miscellaneous

      • Energy Star: Yes
        •
