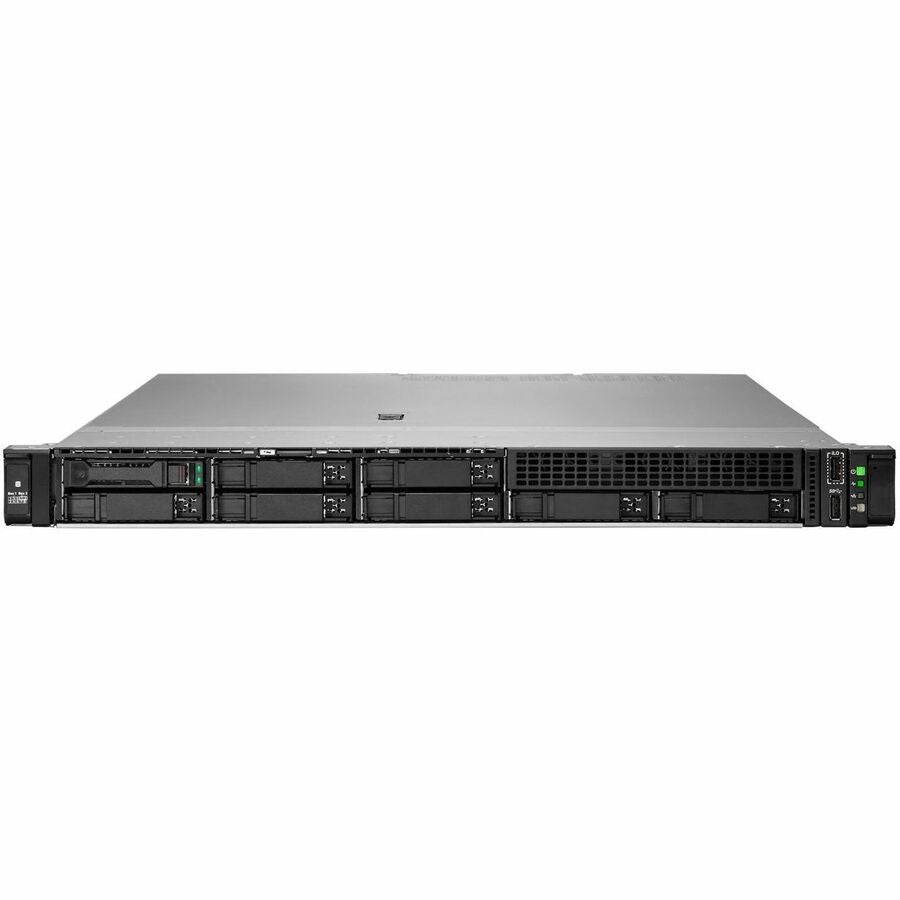

HPE ProLiant Compute DL320 Gen12 1U Rack Server - 1 x Intel Xeon 6 6505P 2.20 GHz - 64 GB RAM - 960 GB SSD - (2 x 480GB) SSD Configuration - Serial ATA/600, 12Gb/s SAS Controller - P87790-005

    Product form

    HPE ProLiant Compute DL320 Gen12 1U Rack Server - 1 x Intel Xeon 6 6505P 2.20 GHz - 64 GB RAM - 960 GB SSD - (2 x 480GB) SSD Configuration - Serial ATA/600, 12Gb/s SAS Controller - P87790-005

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: P87790-005 Manufacturer Website Address: http://www.hpe.com Brand Name: HPE Product Line: ProLiant... Read more

      20 in stock Order today, shipped 1-2 business days

      $9,358.40

      Business-to-Business Sales Only
      We sell exclusively to businesses, government agencies, educational institutions, organizations, and U.S. military bases within the United States. A valid business email address is required.

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
            Have a question on this product? Fill out the form below.
          Send us a message!

          SKU: 15210336

          Size chart

          General Information

        • Manufacturer: Hewlett Packard Enterprise
        • Manufacturer Part Number: P87790-005
        • Manufacturer Website Address: http://www.hpe.com
        • Brand Name: HPE
        • Product Line: ProLiant Compute
        • Product Series: DL320 Gen12
        • Product Name: ProLiant Compute DL320 Gen12 Server
        • Marketing Information:

          HPE ProLiant Compute DL320 Gen12

          Based on industry-standard modular server design, the HPE ProLiant Compute DL320 Gen12 provides a right-sized, efficient compute solution. It is a 1U 1P server that provides best-in-class performance, with maximum I/O capabilities for cloud-native, Infrastructure-as-a-Service (IaaS), and general purpose workloads while consuming considerably less energy than 2P systems. The HPE ProLiant Compute DL320 Gen12 is purpose-built for edge computing, delivering exceptional performance and optimized economics and is an excellent choice for both virtualized and containerized workloads.

          The HPE ProLiant Compute DL320 Gen12 is powered Intel® Xeon® 6 Processors with up to 144 cores - including Intel Rich I/O options, increased memory capability (up to 4 TB 6400 MT/s), and high-speed PCIe Gen5. It supports up to four single-wide GPUs (or two double-wide) with front or rear-facing I/O, and capacity for up to 20 EDSFF drives. The HPE ProLiant Gen12 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.


        • Product Type: Server

          • Processor

        • Number of Processors Supported: 1
        • Number of Processors Installed: 1
        • Processor Manufacturer: Intel
        • Processor Type: Xeon 6
        • Processor Model: 6505P
        • Processor Core: Dodeca-core (12 Core)
        • Processor Speed: 2.20 GHz
        • Cache: 48 MB

          • Chipset

        • Chipset Manufacturer: Intel

          • Memory

        • Standard Memory: 64 GB
        • Maximum Memory Supported: 4 TB
        • Memory Technology: DDR5 SDRAM
        • Total Number of Memory Slots: 16
        • Number of Occupied Memory Slots: 1
        • Error Checking: ECC
        • Signal Processing: Registered (Buffered)

          • Storage

        • Number of Solid State Drives: 2
        • Total Solid State Drive Capacity: 960 GB
        • Solid State Drive Interface: Serial ATA/600

          • Controllers

        • Controller Type:
          • Serial ATA/600
          • 12Gb/s SAS

        • Controller Model: MR408i-o Gen11
        • RAID Supported: Yes

          • I/O Expansions

        • Number of Total Expansion Bays: 8
        • Number of Internal 2.5" Bays: 8
        • Number of SFF Bays: 8
        • Hot Swappable Bays: Yes
        • Total Number of Expansion Slots: 2
        • PCI Express Details:
          • 1 PCIe 5.0 x16 FHHL (Primary Riser optional)
          • 1 PCIe 5.0 x16 FHHL (Secondary Riser optional)

          • Display & Graphics

        • Graphics Memory Capacity: 16 MB

          • Network & Communication

        • Ethernet Technology: Gigabit Ethernet

          • Interfaces/Ports

        • Total Number of USB Ports: 4
        • Network (RJ-45): Yes
        • Number of Network (RJ-45) Ports: 4
        • VGA: Yes
        • Remote Management: Yes
        • Remote Management Controller: HPE iLO6

          • Power Description

        • Input Voltage:
          • 120 V AC
          • 230 V AC

        • Number of Power Supplies Supported: 2
        • Number of Power Supplies Installed: 2
        • Maximum Power Supply Wattage: 1000 W
        • Redundant Power Supply: Yes
        • Hot Swappable Power Supply: Yes

          • Miscellaneous

        • Package Contents:
          • ProLiant Compute DL320 Gen12 Server
          • Easy Install Rail 1 Kit

        • Security Features:
          • UEFI Secure Boot and Secure Start support
          • Secure Enclave - Silicon Root of Trust 2.0
          • Quantum resistant (PQC) readiness for signing firmware - CNSA 2.0
          • FIPS 140-3 validation (Planned)
          • Common Criteria certification (Planned)
          • USGv6 ready (Section 508 - VPAT)
          • Secure Standard Mode - default security mode (equivalent of higher security mode in Gen 11)
          • Configurable for PCI DSS compliance
          • Advanced Encryption Standard (AES) on browser
          • Support for Commercial National Security Algorithms (CNSA)
          • Tamper-free updates - components digitally signed and verified
          • Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
          • Ability to rollback firmware
          • Secure erase of NAND
          • Front bezel key-lock feature - standard, available in both Tower and Rack models
          • Padlock slot, standard
          • Kensington Lock slot, standard
          • Chassis Intrusion detection option
          • TPM (Trusted Platform Module)
          • 1x HPE Bezel Lock Kit
          • 1x HPE ProLiant Gen11 1U Common Bezel Kit
          • 1x HPE ProLiant DL320 Gen11 Intrusion Detection Cable Kit

        • Energy Star: Yes
        • Energy Efficiency Compliance: Energy-related Products Directive Lot 9 (ErP Lot 9)
        • Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)

          • Physical Characteristics

        • Form Factor: Rack
        • Rack Height: 1U
        • Height: 1.7"
        • Width: 17.1"
        • Depth: 23.9"
        • Weight (Approximate): 38.03 lb

          • Warranty

        • Limited Warranty: 3 Year
        • Additional Warranty Information:

          Server warranty includes 3-year parts, 3-year labor, 3-year on-site support with next business day response.


          •
