HPE Synergy 10Gb Pass-Thru Module - 799330-B21

    Product form

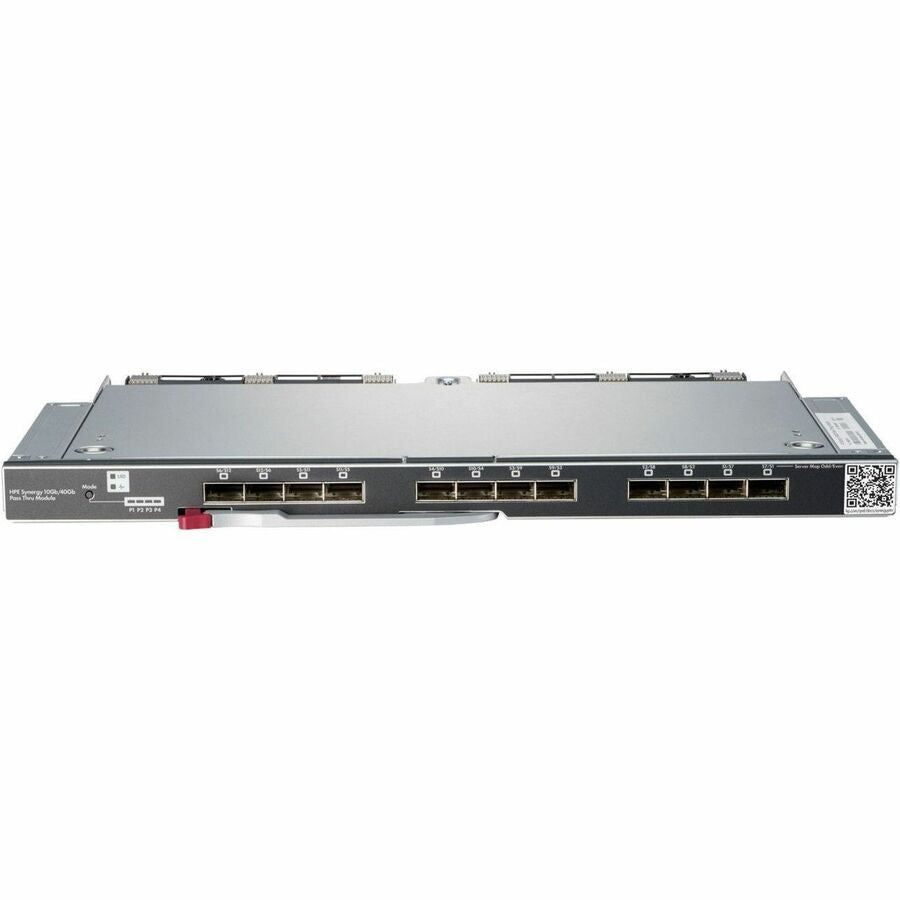

    HPE Synergy 10Gb Pass-Thru Module - 799330-B21

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: 799330-B21 Manufacturer Website Address: http://www.hpe.com Brand Name: HPE Product Line: Synergy... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $7,227.79

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 4L0020
        Barcode: 0888793966181

        Size chart

        General Information

      • Manufacturer: Hewlett Packard Enterprise
      • Manufacturer Part Number: 799330-B21
      • Manufacturer Website Address: http://www.hpe.com
      • Brand Name: HPE
      • Product Line: Synergy
      • Product Name: Synergy 10Gb Pass-Thru Module
      • Marketing Information:

        HPE Synergy 10Gb Pass-Thru Module

        The HPE Synergy 10Gb Pass-Thru Module is designed for the HPE Synergy 12000 Frame for customers requiring a non-blocking, one -to-one connection between each Synergy Compute Module and the network. The pass-thru module provides 12 uplink ports that can accept SFP+ connectors using a QSFP+ to SFP+ adapter.

        The HPE Synergy 10Gb Pass-Thru Module can support 10Gb connections on a port by port basis. Optical as well as Direct Attach Copper (DAC) cables are also supported. Both standard Ethernet as well as Converged Enhanced Ethernet (CEE) traffic to an FCoE capable switch is possible when using the appropriate HPE Synergy Converged Network Adapter.


      • Product Type: Expansion Module

        • Technical Information

      • Application/Usage:
        • Data Networking
        • Optical Network

        • Media & Performance

      • Media Type Supported: Optical Fiber
      • Ethernet Technology: 10 Gigabit Ethernet
      • Network Technology: 10GBase-X
      • Maximum Data Transfer Rate: 10 Gbit/s

        • I/O Expansions

      • Total Number of Expansion Slots: 12
      • Expansion Slot Type:
        • QSFP+
        • SFP+

        • Physical Characteristics

      • Height: 1.1"
      • Width: 7.5"
      • Depth: 10.5"
      • Weight (Approximate): 3.97 lb

        • Miscellaneous

      • Compatibility:

        HPE Synergy 10Gb Pass-Thru Module supports the following hardware.

        HPE Synergy Compute Modules

        • HPE Synergy 480 Gen9 Compute Module
        • HPE Synergy 620 Gen9 Compute Module
        • HPE Synergy 660 Gen9 Compute Module
        • HPE Synergy 680 Gen9 Compute Module
        • HPE Synergy 480 Gen10 Compute Module
        • HPE Synergy 660 Gen10 Compute Module
        • HPE Synergy 480 Gen10Plus Compute Module
        • HPE Synergy 480 Gen11 Compute Module


        HPE Network Adapters Converged Network Adapter:

        • HPE Synergy 2820C 10Gb Converged Network Adapter
        • HPE Synergy 3820C 10/20Gb Converged Network Adapter
        • HPE Synergy 4820C 10/20/25Gb Converged Network Adapter
        • HPE Synergy 4610C 10/25Gb Ethernet Adapter

      • TAA Compliant: Yes

        • Warranty

      • Limited Warranty: 3 Year
        •
