Lenovo 18-Outlets PDU - 4PU7A77467

    Product form
    • Lenovo Group Limited

    Lenovo 18-Outlets PDU - 4PU7A77467

      General Information Manufacturer: Lenovo Group Limited Manufacturer Part Number: 4PU7A77467 Manufacturer Website Address: http://www.lenovo.com/us/en/ Brand Name: Lenovo Product Name: 18-Outlets... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $4,827.51

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 04XG29

        General Information

      • Manufacturer: Lenovo Group Limited
      • Manufacturer Part Number: 4PU7A77467
      • Manufacturer Website Address: http://www.lenovo.com/us/en/
      • Brand Name: Lenovo
      • Product Name: 18-Outlets PDU
      • Marketing Information:

        The 1U Switched and Monitored 3-Phase Power Distribution Units (PDUs) make it quick and simple to deploy, protect, and manage your high-availability rack environment. These space efficient and power dense PDUs were co-designed by Vertiv and Lenovo and come in the following 1U designs available to meet the requirements of your most power-demanding systems:

        • 18x Combination outlets C13/C19 with 80A 3-phase Delta input
        • 18x Combination outlets C13/C19 with 48A 3-phase Wye input (ETL certification)
        • 12x Combination outlets C13/C19 with 60A 3-phase Delta input
        • 12x Combination outlets C13/C19 with 32A 3-phase Wye input 1U
        • 18x Combination outlets C13/C19 with 48A 3-phase Wye input (CE certification)

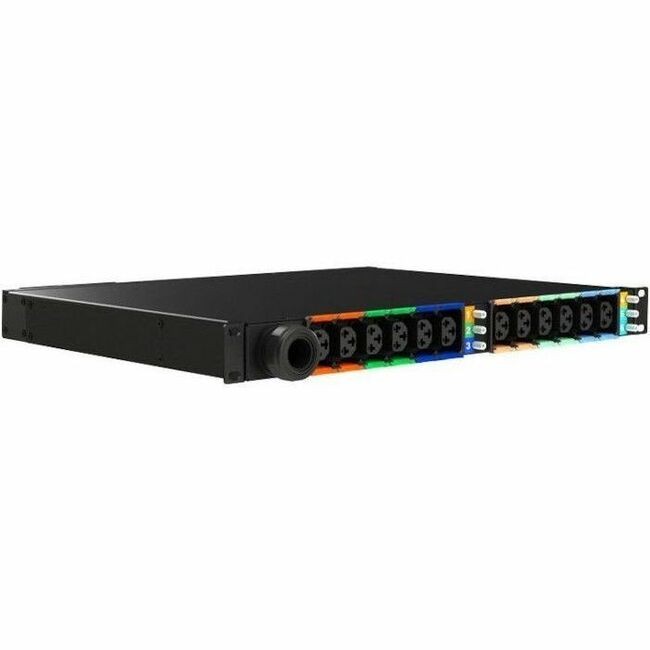

        The outlets (receptacles) on the PDUs give administrators the ability to remotely turn on, turn off, or reboot power at each outlet to power cycle unresponsive IT equipment. Outlet level monitoring gives a comprehensive view of outlet power usage via remote network access. They provide on and off functionality to allow for power sequencing and to help prevent unintended overloading. The following figure shows the PDU with 18 rear-facing outlets.


      • Product Type: PDU
      • Technical Information

      • PDU Type:
        • Switched
        • Monitored

      • Phase: Three Phase
      • Plug/Connector Type: IEC 60309 3P+E 100A
      • Receptacle Type: IEC 60320 C13/C19
      • Receptacle Detail: 18 x IEC 60320 C13/C19
      • Protection Type: Double Pole
      • Locking Receptacles: P-Lock
      • Features: Compact
      • Load Capacity (Watt): 23 kW
      • Power Description

      • Input Voltage: 230 V AC
      • Input Voltage Range: 200 V AC - 240 V AC
      • Output Voltage Range: 200 V AC - 240 V AC
      • Input Current: 80 A
      • Input Frequency: 60 Hz
      • Management

      • Management:
        • DHCP
        • HTTP
        • HTTPS
        • IPv4
        • IPv6
        • LDAP
        • NTP
        • RADIUS
        • RSTP
        • SSH
        • SMT
        • SNMP (v1/v2c/v3)
        • Syslog
        • TACACS+

      • Remote Outlet Switching: Yes
      • Interfaces/Ports

      • Network (RJ-45): Yes
      • Physical Characteristics

      • Mounting Orientation: Horizontal/Vertical
      • Mount Type:
        • Rack-mountable
        • Cabinet-mountable
        • Rail-mountable

      • Form Factor: Rack
      • Rack Height: 1U
      • Cord Length: 10 ft
      • Height: 1.7"
      • Width: 17.6"
      • Depth: 19"
      • Weight (Approximate): 35.05 lb
      • Environmental Conditions

      • Minimum Operating Temperature: 50°F (10°C)
      • Maximum Operating Temperature: 140°F (60°C)
      • Miscellaneous

      • Package Contents:
        • 18-Outlets PDU
        • Mounting Rails for Supported Rack Cabinets - Horizontal and Vertical (Side Pocket) Mounting
        • Rack Mounting Hardware Kit Including M6 Cage Nuts and Supporting Screws/Nuts

      • Application/Usage:
        • Data Center
        • Server
        • IT Equipment

      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • UL Listed: Yes
      • Warranty

      • Limited Warranty: 3 Year
