Lenovo Emulex 16Gb Gen6 FC Dual-port HBA - 01CV840

    Product form
    • Lenovo Group Limited

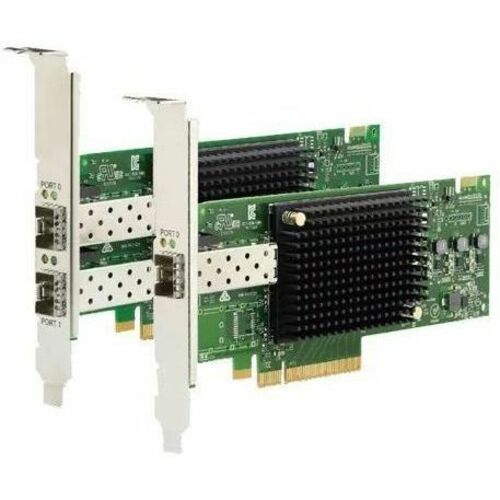

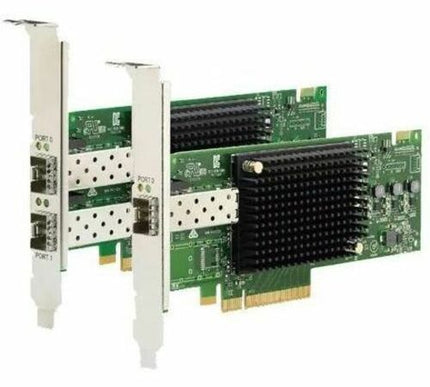

    Lenovo Emulex 16Gb Gen6 FC Dual-port HBA - 01CV840

      General Information Manufacturer: Lenovo Group Limited Manufacturer Part Number: 01CV840 Manufacturer Website Address: http://www.lenovo.com/us/en/ Brand Name: Lenovo Product Name: Emulex... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $2,354.91

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 4J6911
        Barcode: 0889488417346

        Size chart

        General Information

      • Manufacturer: Lenovo Group Limited
      • Manufacturer Part Number: 01CV840
      • Manufacturer Website Address: http://www.lenovo.com/us/en/
      • Brand Name: Lenovo
      • Product Name: Emulex 16Gb Gen6 FC Dual-port HBA
      • Marketing Information:

        The Emulex 16 Gb Generation 6 Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution when requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications.

        This product guide describes the Emulex HBAs and provides essential pre-sales information to understand the products, their key features and specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the adapters and consider their use in IT solutions.


      • Product Type: Fibre Channel Host Bus Adapter

        • Technical Information

      • Total Number of Fibre Channel Ports: 2
      • Host Interface: PCI Express 3.0 x8

        • Media & Performance

      • Fiber Optic Cable Core/Cladding Specification:
        • 50/125 µm
        • 62.5/125 µm

      • Fiber Mode Supported: Multi-mode
      • Data Transfer Rate: 16 Gbit/s

        • I/O Expansions

      • Expansion Slot Type: SFP+

        • Physical Characteristics

      • Form Factor: Plug-in Card
      • Card Height: Low-profile
      • Height: 2.7"
      • Width: 6.6"

        • Miscellaneous

      • Package Contents:
        • Emulex 16Gb Gen6 FC Dual-port HBA
        • 3U (Standard) and 2U (low-profile) Adapter Brackets
        • Publications Package

      • Compatibility:

        Lenovo Storage Systems:

        • x3500 M5 (5464)
        • x3550 M5 (5463)
        • x3650 M5 (5462)
        • x3850 X6/x3950 X6 (6241, E7 v3)
        • nx360 M5 (5465)
        • ST550 (7X09/7X10)
        • SR530 (7X07/7X08)
        • SR550 (7X03/7X04)
        • SR570 (7Y03/7Y04)
        • SR590 (7X98/7X99)
        • SR630 (7X01/7X02)
        • SR650 (7X05/7X06)
        • SR850 (7X18/7X19)
        • SR860 (7X69/7X70)
        • SR950 (7X11/12/13)
        • SD530 (7X21)
        • x3550 M5 (8869)
        • x3650 M5 (8871)
        • x3850 X6/x3950 X6 (6241, E7 v4)
        • nx360 M5 (5465, E5-2600 v4)
        • nx360 M5 (5465)

      • Environmentally Friendly: Yes

        • Warranty

      • Limited Warranty: 1 Year
        •
