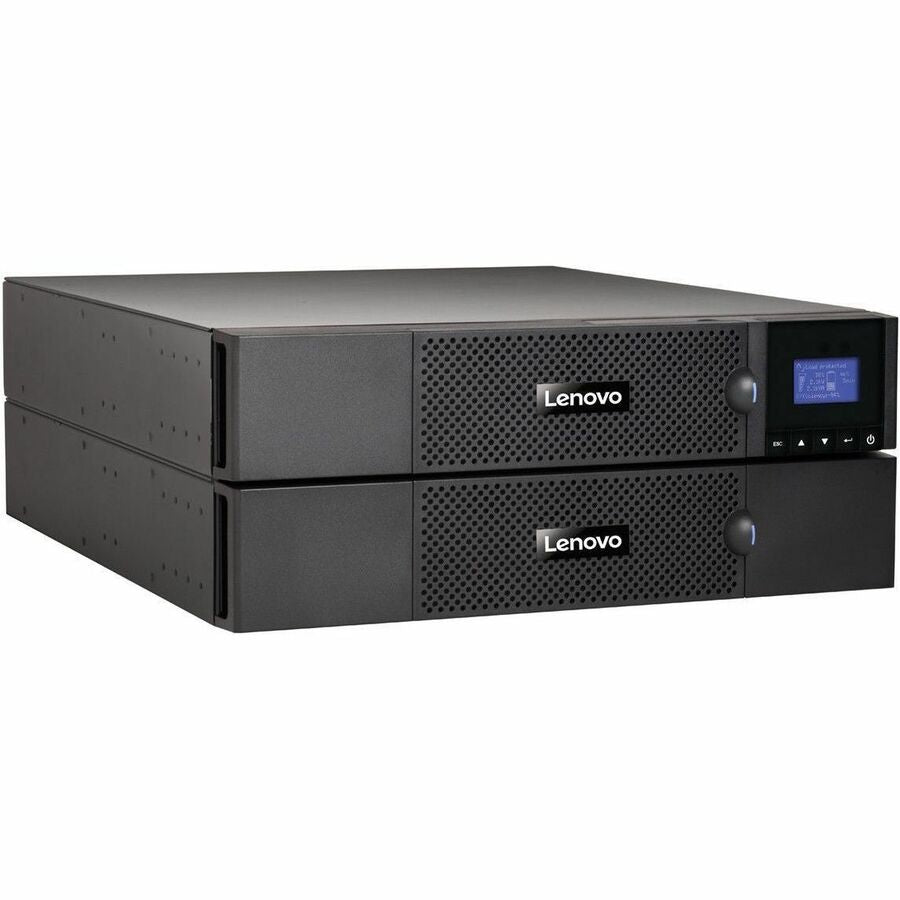

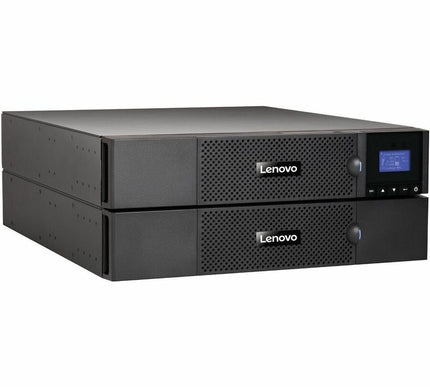

Lenovo RT1.5kVA 1500VA Rack/Tower UPS - 7DD5A00CWW

    Product form
    • Lenovo Group Limited

    Lenovo RT1.5kVA 1500VA Rack/Tower UPS - 7DD5A00CWW

      General Information Manufacturer: Lenovo Group Limited Manufacturer Part Number: 7DD5A00CWW Manufacturer Website Address: http://www.lenovo.com/us/en/ Brand Name: Lenovo Product Model: RT1.5kVA... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $3,352.50

      Business-to-Business Sales Only
      We sell exclusively to businesses, government agencies, educational institutions, organizations, and U.S. military bases within the United States. A valid business email address is required.

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: Z58079
        Barcode: 0889488785506

        Size chart

        General Information

      • Manufacturer: Lenovo Group Limited
      • Manufacturer Part Number: 7DD5A00CWW
      • Manufacturer Website Address: http://www.lenovo.com/us/en/
      • Brand Name: Lenovo
      • Product Model: RT1.5kVA
      • Product Name: RT1.5kVA 1500VA Rack/Tower UPS
      • Marketing Information:

        The RT1.5kVA and RT3kVA 2U Rack or Tower Uninterruptible Power Supply-G2 offerings provide extended power protection with increased efficiency and simplified power management to safeguard the high availability of Lenovo server environments.

        The 2U Rack or Tower UPS-G2 units can be installed in a data center rack cabinet or can be used as tower UPS units in office and distributed IT environments where extended power protection is required.

        The 2U Rack UPS-G2 unit with the Extended Battery Module-G2 is shown in Figure 1.

        Did you know?

        2U Rack or Tower UPS-G2 units feature Advanced Battery Management (ABM) technology that uses a unique, three-stage charging technique that significantly extends battery service life by up to 50% and optimizes recharge time compared to traditional charging methods.

        2U Rack or Tower UPS-G2 units can enhance system availability with individual receptacle groups or load segments that can be programmed and controlled, which allows mission-critical devices to be prioritized during shutdown to preserve battery run time if there is a prolonged power outage.

        2U Rack or Tower UPS-G2 units meter energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Intelligent Power Software. Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.


      • Product Type: Line-interactive UPS

        • Technical Information

      • Plug/Connector Type: IEC 60320 C14 (10A)
      • Receptacle Type: IEC 60320 C13
      • Receptacle Detail: 8 x IEC 60320 C13
      • Efficiency Detail: 98% (AC Mode)
      • Application/Usage:
        • Server
        • Data Center
        • Rack Cabinet
        • Office
        • IT
        • Mission Critical Equipment
        • Storage
        • Electronic Equipment

      • Features: Advanced Battery Management (ABM)

        • Power Description

      • Load Capacity (VA): 1500 VA
      • Load Capacity (Watt): 1100 W
      • Input Voltage: 230 V AC
      • Input Voltage Range: 200 V AC - 240 V AC
      • Input Current: 10 A
      • Output Voltage:
        • 200 V AC
        • 208 V AC
        • 220 V AC
        • 230 V AC
        • 240 V AC

      • Input Frequency:
        • 50 Hz
        • 60 Hz

      • Output Frequency:
        • 50 Hz
        • 60 Hz

      • Waveform Type: Sine Wave

        • Display & Graphics

      • Display: LCD

        • Management

      • Network Management:
        • Network Management Card
        • SNMP/HTTP Remote Monitoring

        • Controls/Indicators

      • Status Indicators:

        LED indicators:

        • Power On
        • On Battery
        • Alarm

        • Interfaces/Ports

      • Serial Port: Yes
      • USB: Yes
      • Network (RJ-45): Yes
      • EPO Port: Yes
      • USB (HID Compliant) Port: Yes

        • Battery Information

      • Battery Characteristics: Leak-proof, Sealed, Maintenance-free, Valve-regulated
      • Battery Chemistry: Lead Acid
      • Battery Capacity: 9000 mAh
      • Number of External Battery Cabinets: 4
      • Backup/Run Time With External Battery Cabinet (Full Load): 1.57 Hour
      • Backup/Run Time With External Battery Cabinet (Half Load): 3.37 Hour
      • Hot Swappable: Yes
      • Replaceable Battery: Yes

        • Environmental Conditions

      • Maximum Operating Elevation: 9842.52 ft
      • Minimum Operating Temperature: 32°F (0°C)
      • Maximum Operating Temperature: 104°F (40°C)

        • Physical Characteristics

      • Height: 3.39"
      • Width: 17.36"
      • Depth: 17.60"
      • Rack Height: 2U
      • Form Factor: Rack/Tower
      • Weight (Approximate): 74.52 lb

        • Miscellaneous

      • Package Contents:
        • RT1.5kVA 1500VA Rack/Tower UPS
        • Tower Pedestal Feet
        • Four-post Rail Kit
        • Quick Start Guide
        • Safety Guide
        • USB Cable
        • RS-232 Cable
        • Documentation Package

      • Software Included: IPM Software
      • Energy Star: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)

        • Warranty

      • Limited Warranty: 3 Year
        •
