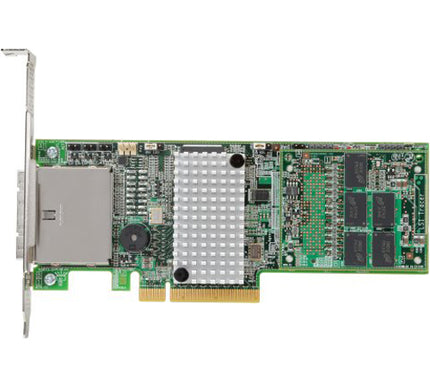

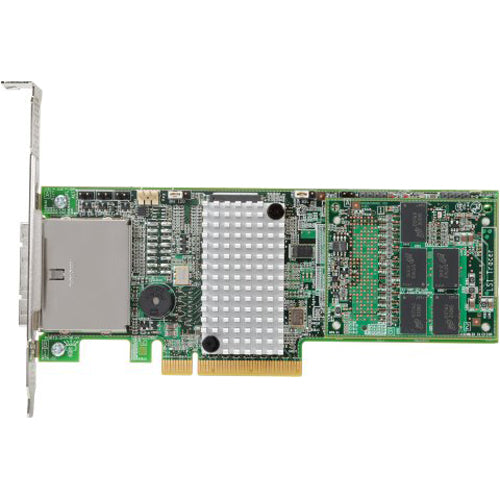

Lenovo ServeRAID M5120 SAS/SATA Controller for Lenovo System x - 81Y4478

    Product form
    • Lenovo Group Limited

    Lenovo ServeRAID M5120 SAS/SATA Controller for Lenovo System x - 81Y4478

      General Information Manufacturer: Lenovo Group Limited Manufacturer Part Number: 81Y4478 Manufacturer Website Address: http://www.lenovo.com/us/en/ Brand Name: Lenovo Product Line: ServeRAID... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $252.88

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: NG1812
        Barcode: 0883436135696

        Size chart

        General Information

      • Manufacturer: Lenovo Group Limited
      • Manufacturer Part Number: 81Y4478
      • Manufacturer Website Address: http://www.lenovo.com/us/en/
      • Brand Name: Lenovo
      • Product Line: ServeRAID
      • Product Model: M5120
      • Product Name: ServeRAID M5120 SAS/SATA Controller for Lenovo System x
      • Marketing Information: The ServeRAID M5120 SAS/SATA Controller is a part of the IBM® ServeRAID M Series product family, which offers a complete server storage solution consisting of RAID controllers, cache/flash modules, energy packs, and software feature upgrades in an ultra-flexible offerings structure. These products are optimized to deliver performance demanded by the ever-growing I/O requirements of today's enterprises. The M5120 comes as a small form factor PCIe adapter, and it shares a common set of ServeRAID M Series upgrades available for the entire family, simplifying inventory management.
      • Packaged Quantity: 1
      • Product Type: SAS Controller

        • Technical Information

      • Host Interface: PCI Express 3.0 x8
      • Controller Type: Serial ATA/600
      • RAID Supported: Yes
      • RAID Levels:
        • 0
        • 1
        • 5
        • 10
        • 50
        • 6
        • 60

        • Interfaces/Ports

      • Total Number of SAS Ports: 2
      • Number of SAS Ports (External): 2
      • SAS Connector Details: 2 x SFF-8088

        • Physical Characteristics

      • Form Factor: Plug-in Card
      • Height: 2.7"
      • Width: 6.6"
      • Thickness: 0.6"
      • Weight (Approximate): 2.72 oz

        • Miscellaneous

      • Package Contents:
        • ServeRAID M5120 SAS/SATA Controller for IBM System x
        • Full-Height (3U) Bracket
        • Low-Profile (2U) Bracket
        • Warranty Flyer
        • ServeRAID M Documentation CD
        • Important Notices Flyer

      • Platform Supported: PC

        • Warranty

      • Limited Warranty: 1 Year
        •
