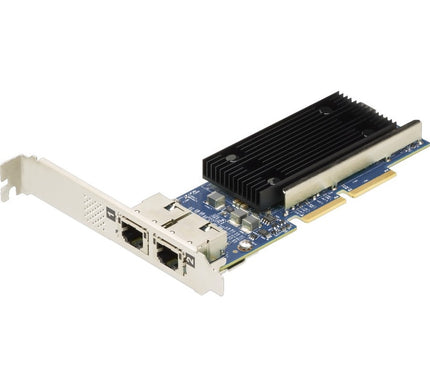

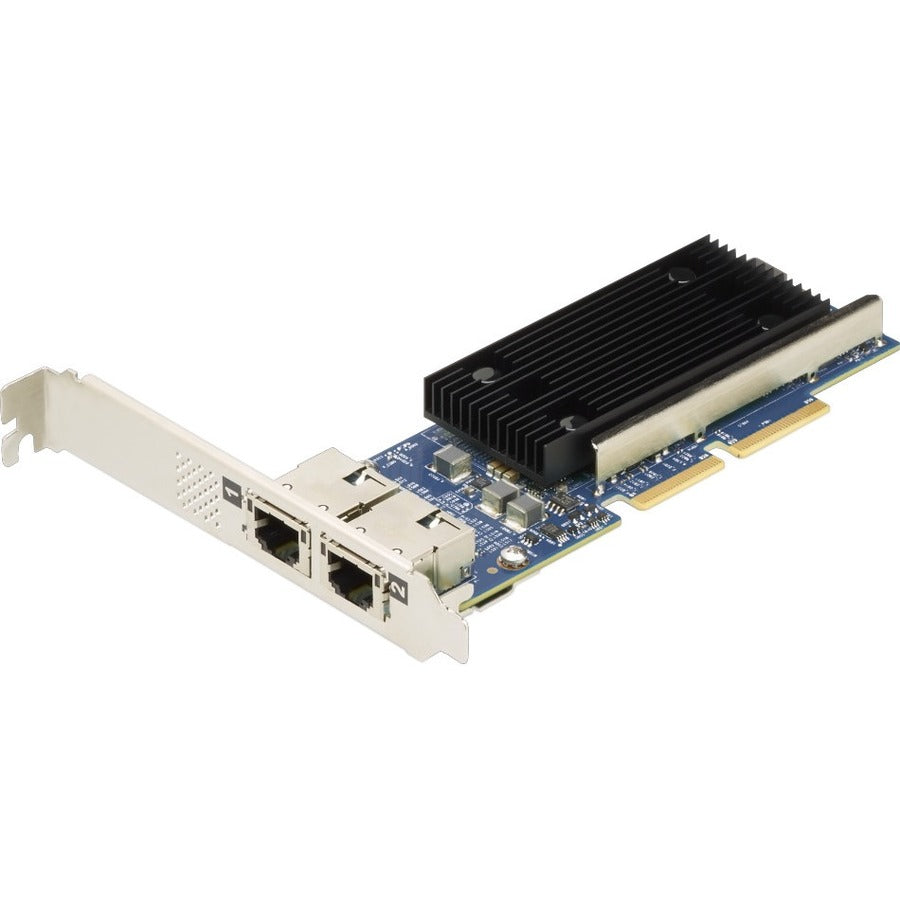

Name: Lenovo ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter - 7ZT7A00497
Brand: Lenovo Group Limited
SKU: 1BF624
Price: 487.1 USD

Lenovo ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter - 7ZT7A00497

Product form

Lenovo Group Limited

Lenovo ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter - 7ZT7A00497

General Information Manufacturer: Lenovo Group Limited Manufacturer Part Number: 7ZT7A00497 Manufacturer Website Address: http://www.lenovo.com/us/en/ Brand Name: Lenovo Product Name: ThinkSystem... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$487.10

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: 1BF624

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Lenovo Group Limited

Manufacturer Part Number: 7ZT7A00497

Manufacturer Website Address: http://www.lenovo.com/us/en/

Brand Name: Lenovo

Product Name: ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter

Marketing Information: The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. The adapters are available in either ML2 form factor or PCIe low-profile form factor for use in Lenovo ThinkSystem servers.

Did you know?

10GBASE-T is a low-cost way to enter the 10 Gb Ethernet space. By using standard UTP twisted pair cabling, you eliminate the need for transceivers or fiber optic cabling.

The Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter is a special mezzanine LAN-on-motherboard (mezzanine LOM) form factor adapter that also supports the Network Controller Sideband Interface (NC-SI) for communication with the server's onboard XClarity Controller (XCC) management processor. This support enables the sharing the network interface with the XCC and the operating system, thereby eliminating the need for a separate management network.

Packaged Quantity: 1

Product Type: 10Gigabit Ethernet Card

Interfaces/Ports

Host Interface: PCI Express 3.0 x8

Total Number of Ports: 2

Number of Network (RJ-45) Ports: 2

Media & Performance

Media Type Supported: Twisted Pair

Network & Communication

Network Technology: 10GBase-T

Physical Characteristics

Form Factor: ML2

Height: 2.7"

Width: 0.7"

Depth: 6.6"

Miscellaneous

Package Contents:

ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter
Installation and Warranty Documentation

Device Supported: Server

Environmentally Friendly: Yes

Warranty

Limited Warranty: 1 Year
