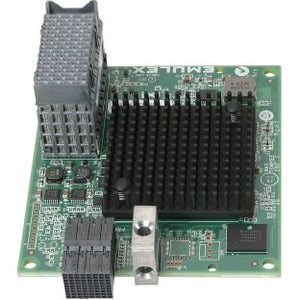

Lenovo ThinkSystem Emulex LPm16002B-L Mezz 16Gb 2-Port Fibre Channel Adapter - 7ZT7A00521

    Product form
    • Lenovo Group Limited

    Lenovo ThinkSystem Emulex LPm16002B-L Mezz 16Gb 2-Port Fibre Channel Adapter - 7ZT7A00521

      General Information Manufacturer: Lenovo Group Limited Manufacturer Part Number: 7ZT7A00521 Manufacturer Website Address: http://www.lenovo.com/us/en/ Brand Name: Lenovo Product Name: ThinkSystem... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $795.05

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 1BF790
        Barcode: 0889488433742

        Size chart

        General Information

      • Manufacturer: Lenovo Group Limited
      • Manufacturer Part Number: 7ZT7A00521
      • Manufacturer Website Address: http://www.lenovo.com/us/en/
      • Brand Name: Lenovo
      • Product Name: ThinkSystem Emulex LPm16002B-L Mezz 16Gb 2-Port Fibre Channel Adapter
      • Marketing Information:

        The Emulex 16Gb Fibre Channel Adapter family for Lenovo Flex System enables the highest FC speed access for Flex System compute nodes to an external storage area network (SAN). These adapters are based on the proven Emulex Fibre Channel stack, and work with 16 Gb Flex System Fibre Channel switch modules.

        As the only 4-port HBAs for Flex System and ThinkSystem respectively, the FC5054 and LPm16004B-L provide unmatched scalability and redundancy. In addition, these two 4-port adapters have two separate ASICs with no bridge chip, so data flows directly to an independent PCIe bus for high availability without a single point of failure.


      • Product Type: Fibre Channel Host Bus Adapter

        • Technical Information

      • Total Number of Fibre Channel Ports: 2
      • Host Interface: PCI Express 3.0 x8

        • Media & Performance

      • Data Transfer Rate: 16 Gbit/s

        • Physical Characteristics

      • Width: 3.9"
      • Depth: 3.1"
      • Weight (Approximate): 0.46 oz

        • Miscellaneous

      • Compatibility:

        Lenovo Servers:

        • SN550 (7X16)
        • SN850 (7X15)
        • SN550 V2

        • Warranty

      • Limited Warranty: 1 Year
      • Additional Warranty Information:

        1-year, customer-replaceable unit (CRU) limited warranty


        •
