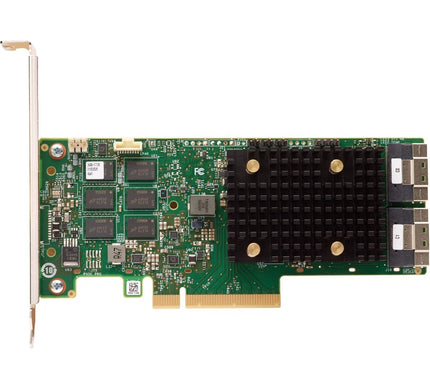

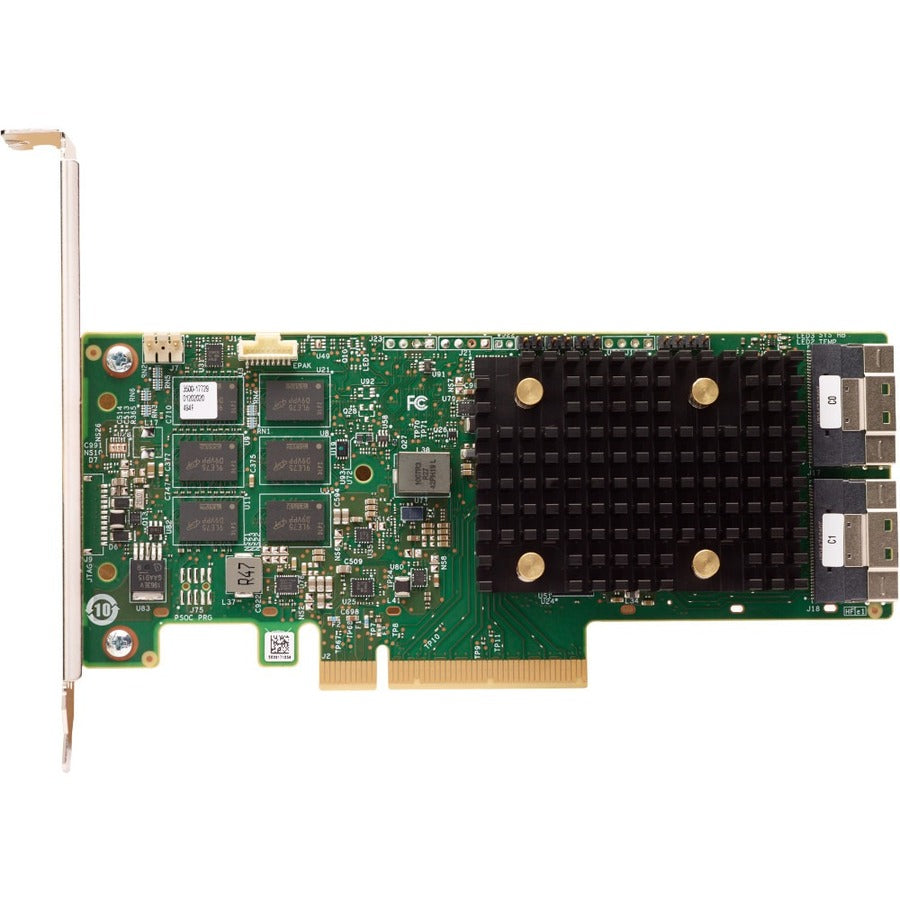

Name: Lenovo ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter - 4Y37A09730
Brand: Lenovo Group Limited
SKU: 9CA526
Price: 5666.14 USD

Lenovo ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter - 4Y37A09730

Product form

Lenovo Group Limited

Lenovo ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter - 4Y37A09730

General Information Manufacturer: Lenovo Group Limited Manufacturer Part Number: 4Y37A09730 Manufacturer Website Address: http://www.lenovo.com/us/en/ Brand Name: Lenovo Product Model: RAID... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$5,666.14

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: 9CA526
Barcode: 0889488525034

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Lenovo Group Limited

Manufacturer Part Number: 4Y37A09730

Manufacturer Website Address: http://www.lenovo.com/us/en/

Brand Name: Lenovo

Product Model: RAID 940-16i

Product Name: ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter

Marketing Information:

The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) server adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.

Product Type: SAS Controller

Technical Information

Host Interface: PCI Express 4.0 x8

Controller Type: 12Gb/s SAS

RAID Supported: Yes

RAID Levels:

0
1
5
6
10
50
60
JBOD

Data Backup Type: Flash Backed Cache

Device Supported: Server

Operating System Supported:

Windows Server 2016
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 7.8
Red Hat Enterprise Linux 7.9
Red Hat Enterprise Linux 8.1
Red Hat Enterprise Linux 8.2
Red Hat Enterprise Linux 8.3
Red Hat Enterprise Linux 8.4
SUSE Linux Enterprise Server 12 SP5
SUSE Linux Enterprise Server 15 SP1
SUSE Linux Enterprise Server 15 SP2
SUSE Linux Enterprise Server 15 SP3
Ubuntu 18.04 LTS
Ubuntu 20.04 LTS
Red Hat Enterprise Linux 7.6
Red Hat Enterprise Linux 7.7
Red Hat Enterprise Linux 8.5
SuSE Linux Enterprise Server 15
SUSE Linux Enterprise Server 12 SP3
SUSE Linux Enterprise Server 12 SP4
VMware ESXi 7.0 U3
VMware ESXi 7.0 U2
VMware ESXi 7.0 U1
VMware ESXi 6.7 U3
VMware ESXi 6.7 U2
VMware ESXi 6.7 U1
VMware ESXi 6.7
Red Hat Enterprise Linux 8

Memory

Cache Memory: 8 GB

Interfaces/Ports

Total Number of SAS Ports: 16

Number of SAS Ports (Internal): 16

SAS Connector Details: Two x8 SFF-8654

Physical Characteristics

Form Factor: Plug-in Card

Miscellaneous

Platform Supported: PC

Environmentally Friendly: Yes

Environmental Compliance:

China Restriction of Hazardous Substances (China RoHS)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty: 1 Year

Additional Warranty Information:

The adapters carry a 1-year limited warranty. When installed in a supported ThinkSystem server, the adapter assumes the server's base warranty and any warranty upgrades.
