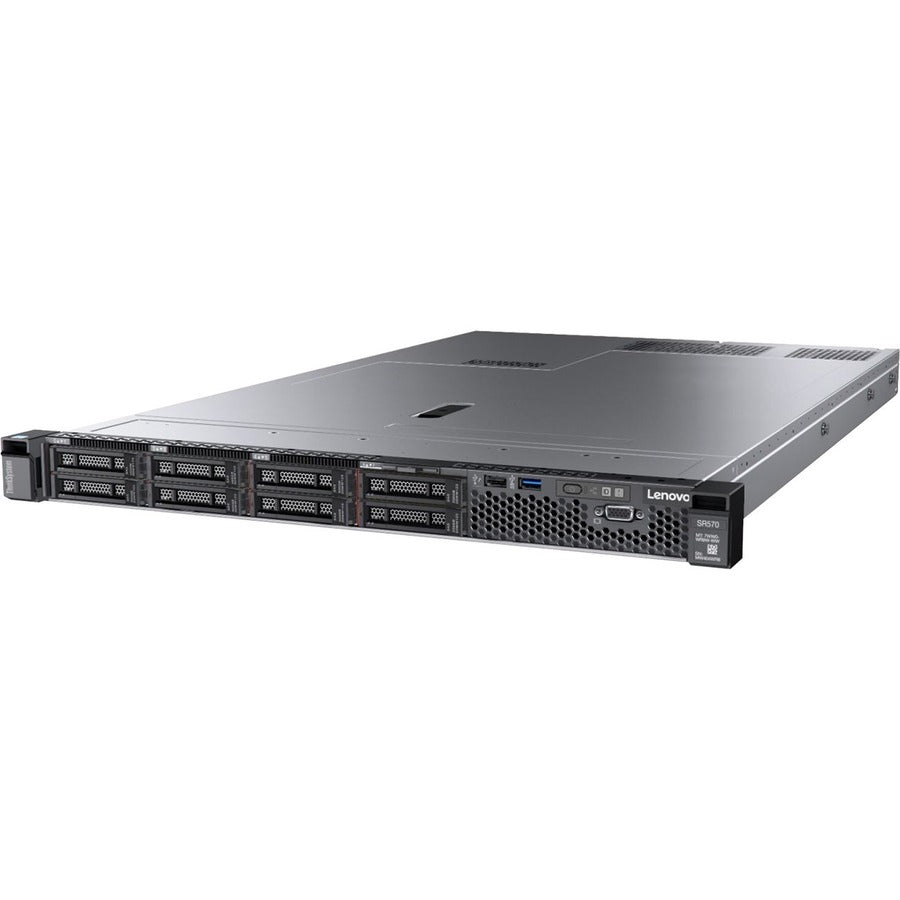

Lenovo ThinkSystem SR570 7Y03A069NA 1U Rack Server - Xeon Gold 6230 2.10 GHz - 32 GB RAM - Serial ATA/600 Controller - 7Y03A069NA

    Product form
    • Lenovo Group Limited

    Lenovo ThinkSystem SR570 7Y03A069NA 1U Rack Server - Xeon Gold 6230 2.10 GHz - 32 GB RAM - Serial ATA/600 Controller - 7Y03A069NA

      General Information Manufacturer: Lenovo Group Limited Manufacturer Part Number: 7Y03A069NA Manufacturer Website Address: http://www.lenovo.com/us/en/ Brand Name: Lenovo Product Line: ThinkSystem... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $6,552.37

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 6KA132

        Size chart

        General Information

      • Manufacturer: Lenovo Group Limited
      • Manufacturer Part Number: 7Y03A069NA
      • Manufacturer Website Address: http://www.lenovo.com/us/en/
      • Brand Name: Lenovo
      • Product Line: ThinkSystem
      • Product Series: SR570
      • Product Model: 7Y03A069NA
      • Product Name: ThinkSystem SR570 7Y03A069NA Server
      • Marketing Information:

        Lenovo ThinkSystem SR570 is a 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as the balance of performance, memory, and flexible storage configurations. The SR570 server is designed to handle a wide range of workloads, such as virtualization and cloud computing, infrastructure security, web serving, and application development.


      • Product Type: Server

        • Processor

      • Number of Processors Supported: 2
      • Processor Type: Xeon Gold
      • Processor Model: 6230
      • Processor Core: Icosa-core (20 Core)
      • Processor Speed: 2.10 GHz
      • Cache: 27.50 MB

        • Chipset

      • Chipset Manufacturer: Intel
      • Chipset Model: C622

        • Memory

      • Standard Memory: 32 GB
      • Memory Technology: TruDDR4
      • Total Number of Memory Slots: 16
      • Number of Occupied Memory Slots: 2
      • Error Checking: ECC

        • Controllers

      • Controller Type: Serial ATA/600
      • RAID Supported: Yes

        • I/O Expansions

      • Total Number of Expansion Slots: 3
      • PCI Express Details: Slot 1: PCIe 3.0 x8; low profile Slot 2: PCIe 3.0 x16 or ML2 x8; low profile or full-height, half-length Slot 3: PCIe 3.0 x8 or x16; low profile

        • Display & Graphics

      • Graphics Memory Capacity: 16 MB

        • Network & Communication

      • Ethernet Technology: Gigabit Ethernet

        • Interfaces/Ports

      • Total Number of USB Ports: 4
      • Number of USB 2.0 Ports: 1
      • Number of USB 3.0 Ports: 3
      • Network (RJ-45): Yes
      • Number of Network (RJ-45) Ports: 1
      • Remote Management: Yes
      • Remote Management Controller: XClarity Controller

        • Operating System

      • Operating System Supported:
        • Windows Server 2016
        • Windows Server 2012 R2
        • Red Hat Enterprise linux 7.4
        • Red Hat Enterprise Linux 6.9
        • SUSE Linux Enterprise Server 12 SP3

        • Power Description

      • Input Voltage:
        • 120 V AC
        • 230 V AC

      • Number of Power Supplies Supported: 2

        • Miscellaneous

      • Package Contents:
        • ThinkSystem SR570 7Y03A069NA Server
        • Rack Installation Guide
        • Electronic Publications Flyer

      • Security Features:
        • Power-on password
        • Administrator's password
        • Secure firmware updates
        • Onboard Trusted Platform Module (TPM) version 1.2 or 2.0 (configurable UEFI system setting)
        • Trusted Cryptographic Module (TCM) (optional; available in China only)
        • Lockable front bezel (optional)
        • Security Key Lifecycle Manager (SKLM) encryption key management for SEDs - FoD upgrade (optional)
        • Lenovo Business Vantage security software (optional; available in China only)

      • Energy Star: Yes
      • Environmentally Friendly: Yes
      • Energy Efficiency Certification: ENERGY STAR 2.1
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)

        • Physical Characteristics

      • Form Factor: Rack
      • Rack Height: 1U
      • Height: 1.7"
      • Width: 17.1"
      • Depth: 28.1"
      • Weight (Approximate): 35.27 lb

        • Warranty

      • Limited Warranty: 3 Year
        •
