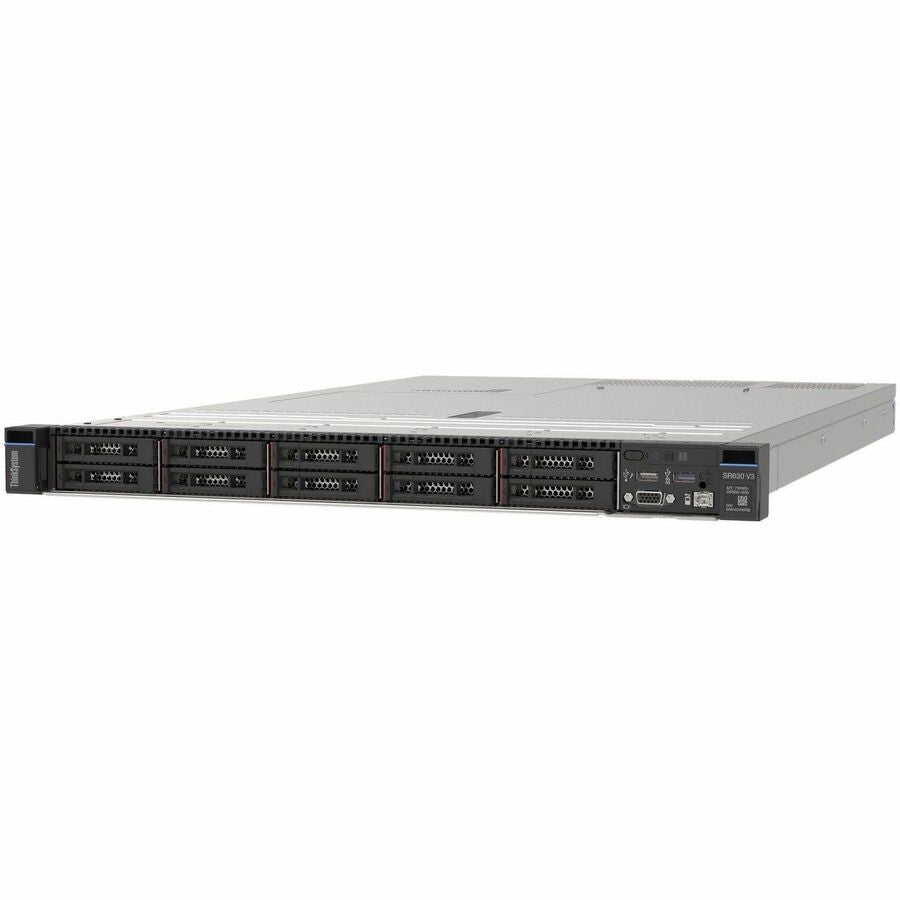

Lenovo ThinkSystem SR630 V3 7D731000NA 1U Rack Server - 1 x Intel Xeon Silver 4410T 2.7 GHz - 64 GB RAM - 5.76 TB SSD - (3 x 1.92TB) SSD Configuration - 12Gb/s SAS Controller - Pre-Configured - 7D731000NA

    Product form
    • Lenovo Group Limited

    Lenovo ThinkSystem SR630 V3 7D731000NA 1U Rack Server - 1 x Intel Xeon Silver 4410T 2.7 GHz - 64 GB RAM - 5.76 TB SSD - (3 x 1.92TB) SSD Configuration - 12Gb/s SAS Controller - Pre-Configured - 7D731000NA

      General Information Manufacturer: Lenovo Group Limited Manufacturer Part Number: 7D731000NA Manufacturer Website Address: http://www.lenovo.com/us/en/ Brand Name: Lenovo Product Line: ThinkSystem... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $7,087.92

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: SF9525

        Size chart

        General Information

      • Manufacturer: Lenovo Group Limited
      • Manufacturer Part Number: 7D731000NA
      • Manufacturer Website Address: http://www.lenovo.com/us/en/
      • Brand Name: Lenovo
      • Product Line: ThinkSystem
      • Product Series: SR630 V3
      • Product Model: 7D731000NA
      • Product Name: ThinkSystem SR630 V3 7D731000NA Server
      • Marketing Information:

        The Lenovo ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.


      • Product Type: Server

        • Processor

      • Number of Processors Supported: 2
      • Number of Processors Installed: 1
      • Processor Type: Xeon Silver
      • Processor Generation: 4th Gen
      • Processor Model: 4410T
      • Processor Core: Deca-core (10 Core)
      • Processor Speed: 2.70 GHz
      • Cache: 26.25 MB

        • Chipset

      • Chipset Manufacturer: Intel
      • Chipset Model: C741

        • Memory

      • Standard Memory: 64 GB
      • Maximum Memory Supported: 8 TB
      • Memory Technology: TruDDR5
      • Total Number of Memory Slots: 32
      • Number of Occupied Memory Slots: 2
      • Intel Optane Memory Ready: No
      • Error Checking: ECC
      • Signal Processing: Registered (Buffered)

        • Storage

      • Number of Solid State Drives: 3
      • Total Solid State Drive Capacity: 5.76 TB
      • Solid State Drive Interface: Serial ATA/600

        • Controllers

      • Controller Type: 12Gb/s SAS
      • Controller Model: 5350-8i
      • RAID Supported: Yes
      • RAID Levels: 0, 1, 5, 10, JBOD

        • I/O Expansions

      • Number of Total Expansion Bays: 8
      • Number of Internal 2.5" Bays: 8
      • Number of SFF Bays: 8
      • Hot Swappable Bays: Yes
      • Total Number of Expansion Slots: 2
      • PCI Express Details: 1x PCIe x16 full-height half-length slot ; 1x PCIe x16 low-profile slot

        • Display & Graphics

      • Graphics Memory Capacity: 16 MB

        • Network & Communication

      • Ethernet Technology: 10 Gigabit Ethernet

        • Interfaces/Ports

      • Total Number of USB Ports: 6
      • Number of USB 2.0 Ports: 1
      • Network (RJ-45): Yes
      • Number of Network (RJ-45) Ports: 2
      • VGA: Yes
      • Remote Management: Yes
      • Remote Management Controller: XClarity Controller (XCC) Platinum

        • Operating System

      • Operating System Supported:
        • Windows Server 2019
        • Windows Server 2022
        • Red Hat Enterprise Linux 8.8
        • Red Hat Enterprise Linux 8.9
        • Red Hat Enterprise Linux 9.2
        • Red Hat Enterprise Linux 9.3
        • SUSE Linux Enterprise Server 15 SP5
        • Ubuntu 22.04 LTS x64
        • Red Hat Enterprise Linux 8.10
        • Red Hat Enterprise Linux 9.4
        • Red Hat Enterprise Linux 8.6
        • Red Hat Enterprise Linux 8.7
        • Red Hat Enterprise Linux 9.0
        • Red Hat Enterprise Linux 9.1
        • SUSE Linux Enterprise Server 15 SP4
        • Windows 10 x64
        • Windows 11
        • SUSE Linux Enterprise Server 15 SP6
        • Ubuntu 24.04 LTS x64
        • Ubuntu 20.04 LTS x64

        • Power Description

      • Input Voltage:
        • 120 V AC
        • 230 V AC

      • Number of Power Supplies Supported: 2
      • Number of Power Supplies Installed: 2
      • Plug/Connector Type: C13
      • Maximum Power Supply Wattage: 1100 W
      • Redundant Power Supply: Yes
      • Hot Swappable Power Supply: Yes

        • Miscellaneous

      • Package Contents:
        • ThinkSystem SR630 V3 7D731000NA Server
        • Toolless Slide Rail Kit

      • Security Features:
        • Chassis intrusion switch
        • Power-on password
        • Administrator's password
        • Root of Trust module supporting TPM 2.0
        • Platform Firmware Resiliency (PFR)

      • Environmentally Friendly: Yes
      • Environmental Certification:
        • China Environmental Labeling Program (CELP)
        • Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
        • GREENGUARD

      • Energy Efficiency Certification: China Energy Conservation Program (CECP)
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)

        • Physical Characteristics

      • Form Factor: Rack
      • Rack Height: 1U
      • Height: 1.7"
      • Width: 17.3"
      • Depth: 30.4"
      • Weight (Approximate): 45.86 lb

        • Warranty

      • Limited Warranty: 3 Year
      • Additional Warranty Information:

        Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).


        •
