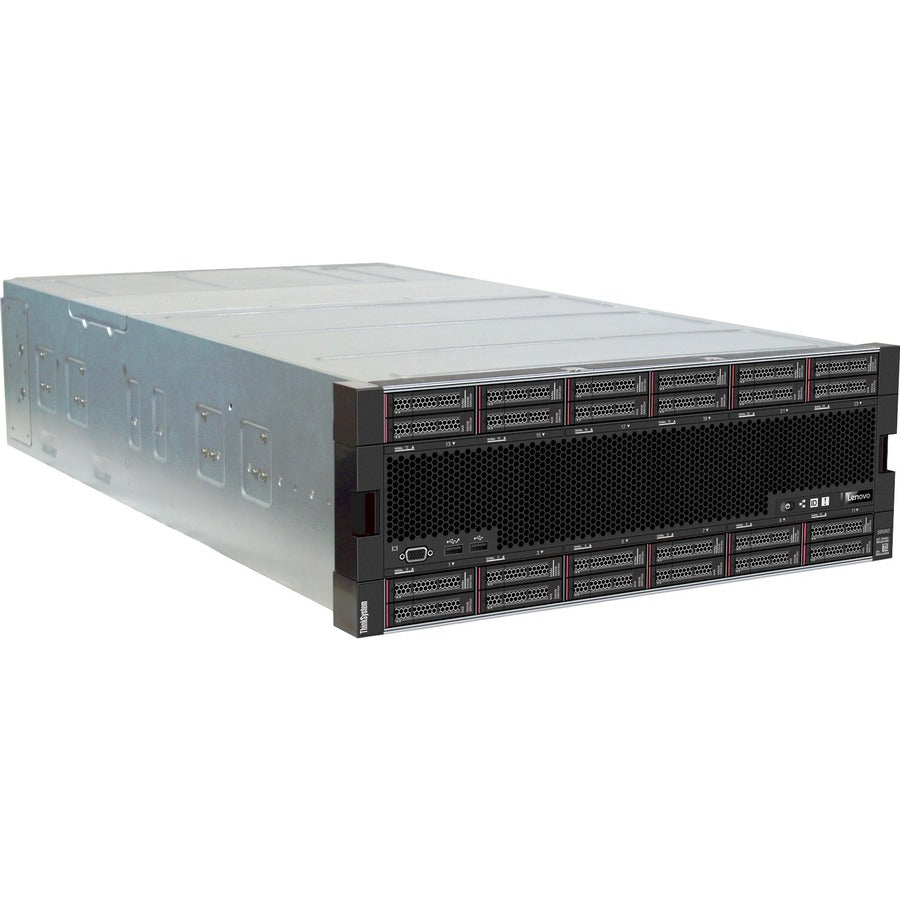

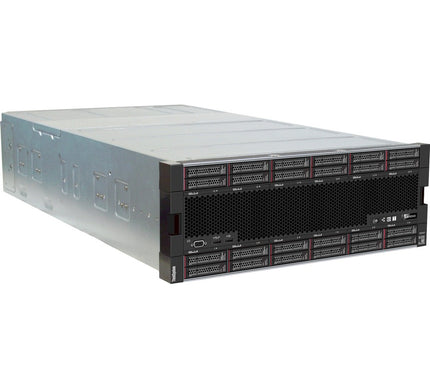

Lenovo ThinkSystem SR950 7X12A02NNA 4U Rack Server - 2 Xeon Gold 6230 2.20 GHz - 64 GB RAM - 12Gb/s SAS, Serial ATA/600 Controller - 7X12A02NNA

    Product form
    • Lenovo Group Limited

    Lenovo ThinkSystem SR950 7X12A02NNA 4U Rack Server - 2 Xeon Gold 6230 2.20 GHz - 64 GB RAM - 12Gb/s SAS, Serial ATA/600 Controller - 7X12A02NNA

      General Information Manufacturer: Lenovo Group Limited Manufacturer Part Number: 7X12A02NNA Manufacturer Website Address: http://www.lenovo.com/us/en/ Brand Name: Lenovo Product Line: ThinkSystem... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $16,365.37

      Business-to-Business Sales Only
      We sell exclusively to businesses, government agencies, educational institutions, organizations, and U.S. military bases within the United States. A valid business email address is required.

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 6VG144

        Size chart

        General Information

      • Manufacturer: Lenovo Group Limited
      • Manufacturer Part Number: 7X12A02NNA
      • Manufacturer Website Address: http://www.lenovo.com/us/en/
      • Brand Name: Lenovo
      • Product Line: ThinkSystem
      • Product Series: SR950
      • Product Model: 7X12A02NNA
      • Product Name: ThinkSystem SR950 7X12A02NNA Server
      • Marketing Information:

        The Lenovo ThinkSystem SR950 is Lenovo's flagship server, suitable for mission-critical applications that need the most processing power possible in a single server. Now supporting second-generation Intel Xeon Scalable Family processors, the powerful 4U ThinkSystem SR950 can expand from two to as many as eight processors. The modular design of SR950 speeds upgrades and servicing with easy front or rear access to all major subsystems that ensures maximum performance and maximum server uptime.


      • Product Type: Server

        • Processor

      • Number of Processors Supported: 8
      • Number of Processors Installed: 2
      • Processor Type: Xeon Gold
      • Processor Generation: 2nd Gen
      • Processor Model: 6230
      • Processor Core: Hexadeca-core (16 Core)
      • Processor Speed: 2.20 GHz
      • Cache: 22 MB

        • Chipset

      • Chipset Manufacturer: Intel
      • Chipset Model: C624

        • Memory

      • Standard Memory: 64 GB
      • Memory Technology: TruDDR4
      • Total Number of Memory Slots: 96
      • Number of Occupied Memory Slots: 2
      • Error Checking: ECC

        • Controllers

      • Controller Type:
        • 12Gb/s SAS
        • Serial ATA/600

      • Controller Model: 930-16i
      • RAID Levels: 0, 1, 5, 6, 10, 50, 60

        • I/O Expansions

      • Number of Total Expansion Bays: 8
      • Number of Internal 2.5" Bays: 8
      • Number of SFF Bays: 8
      • Hot Swappable Bays: Yes
      • Total Number of Expansion Slots: 5

        • Display & Graphics

      • Graphics Memory Capacity: 16 MB

        • Network & Communication

      • Ethernet Technology: 10 Gigabit Ethernet

        • Interfaces/Ports

      • Total Number of USB Ports: 4
      • Number of USB 2.0 Ports: 2
      • Number of USB 3.0 Ports: 2
      • Network (RJ-45): Yes
      • Number of Network (RJ-45) Ports: 1
      • VGA: Yes
      • Remote Management: Yes
      • Remote Management Controller: XClarity Controller (XCC)

        • Operating System

      • Operating System Supported:
        • Windows Server 2016
        • Windows Server 2019
        • Windows Server 2022
        • Red Hat Enterprise Linux 7.6
        • Red Hat Enterprise Linux 7.7
        • Red Hat Enterprise Linux 7.8
        • Red Hat Enterprise Linux 7.9
        • Red Hat Enterprise Linux 8
        • Red Hat Enterprise Linux 8.1
        • Red Hat Enterprise Linux 8.2
        • Red Hat Enterprise Linux 8.3
        • Red Hat Enterprise Linux 8.4
        • Red Hat Enterprise Linux 8.5
        • SUSE Linux Enterprise Server 12 SP4
        • SUSE Linux Enterprise Server 12 SP5
        • SuSE Linux Enterprise Server 15
        • SUSE Linux Enterprise Server 15 SP1
        • SUSE Linux Enterprise Server 15 SP2
        • SUSE Linux Enterprise Server 15 SP3

        • Power Description

      • Input Voltage:
        • 120 V AC
        • 230 V AC

      • Number of Power Supplies Supported: 4
      • Number of Power Supplies Installed: 2
      • Plug/Connector Type: C13
      • Maximum Power Supply Wattage: 1100 W

        • Miscellaneous

      • Package Contents:
        • ThinkSystem SR950 7X12A02NNA Server
        • Rail kit
        • Documentation flyer
        • 2.8m C13-C20 Power Cords

      • Security Features:
        • Administrator and power-on password
        • Trusted Platform Module (TPM) supporting both TPM 1.2 and TPM 2.0
        • Optional Trusted Cryptographic Module (TCM) or Nationz TPM, available only in China
        • Self-encrypting drives with support for IBM Security Key Lifecycle Manager

      • Energy Star: Yes
      • Environmentally Friendly: Yes
      • Energy Efficiency Certification: ENERGY STAR 2.1
      • Energy Efficiency Compliance: Energy-related Products Directive Lot 3 (ErP Lot 3)
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)

        • Physical Characteristics

      • Form Factor: Rack
      • Rack Height: 4U
      • Height: 6.9"
      • Width: 17.6"
      • Depth: 33.5"
      • Weight (Approximate): 129.41 lb

        • Warranty

      • Limited Warranty: 3 Year
        •
