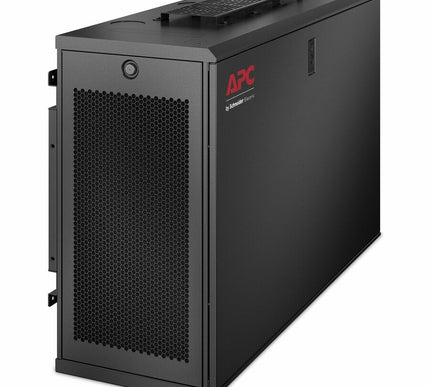

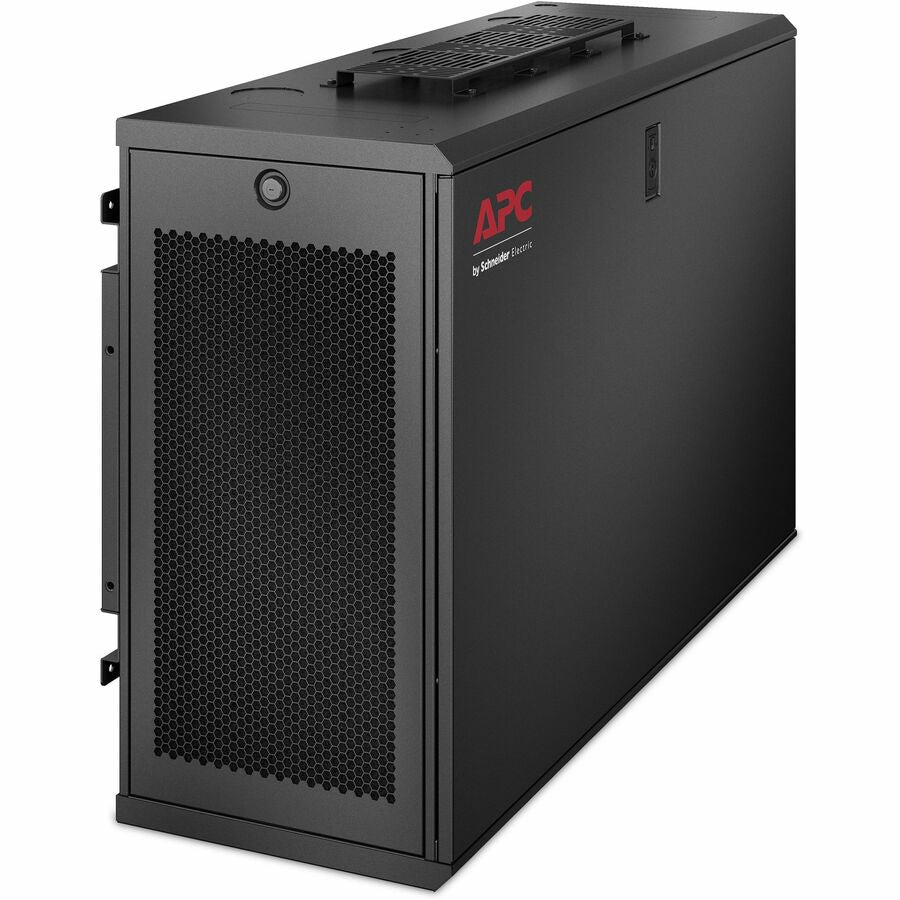

Schneider Electric NetShelter 6U Low-profile Wallmount Rack Enclosure Cabinet 120V Server Depth - AR106V

    Product form
    • Schneider Electric SA

    Schneider Electric NetShelter 6U Low-profile Wallmount Rack Enclosure Cabinet 120V Server Depth - AR106V

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: AR106V Manufacturer Website Address: http://www.schneider-electric.com Brand Name: Schneider Electric Product Line:... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $1,135.64

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: AR106V
        Barcode: 731304402022

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: AR106V
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: Schneider Electric
      • Product Line: NetShelter WX
      • Product Name: NetShelter WX 6U Low-Profile Wall Mount Enclosure 120V Fans
      • Marketing Information:

        APC by Schneider Electric 6U Wall-Mount is an innovative new way to deploy server and networking equipment at the edge. Ideal for retail, healthcare, educational facilities and light industrial spaces, the low-profile design offers an efficient solution for deploying hyperconverged server and networking applications. The rack enclosure allows longer depth equipment to be wall mounted, up to 30 inches deep. A detachable wall bracket and optional casters (sold separately) allow the server rack to be mounted on either the wall or stand alone on the floor. A dust filter and two integrated fans allow deployment in light-industrial environments. APC Smart-UPS, APC NetBotz Physical and Environmental Security, and APC EcoStruxure IT can be configured with this cabinet (sold separately). 6U vertical wall-mount cabinet, 30 in mounting depth, 250 lb weight capacity, 19" rack width, side panels for access to equipment, ships fully assembled, UL2416 Listed, MERV 5 dust filter and 120V integrated fans included. Input connector IEC 60320 C13 with 500VA - 1.5kVA output power capacity.

        More from the Manufacturer


      • Product Type: Rack Cabinet
      • Technical Information

      • Application/Usage:
        • Networking
        • Storage
        • Converged Infrastructure
        • Server
        • Airflow System

      • Mounting Location: Vertical
      • Mounting Preference: No Preference
      • Power Description

      • Plug/Connector Type: IEC 60320 C13
      • Physical Characteristics

      • Form Factor: Wall Mountable
      • Color Family: Black
      • Product Color: Black
      • Dynamic/Rolling Weight Capacity: 250.53 lb
      • Static/Stationary Weight Capacity: 250.53 lb
      • Height: 25.5"
      • Width: 13.9"
      • Depth: 38.1"
      • Rack Height: 6U
      • Rack Width: 19"
      • Rack Depth: 30"
      • Weight (Approximate): 80.01 lb
      • Miscellaneous

      • Assembly Required: No
      • Country of Origin: Philippines
      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No
      • Warranty

      • Limited Warranty: 5 Year
